T1S V5
Key Features

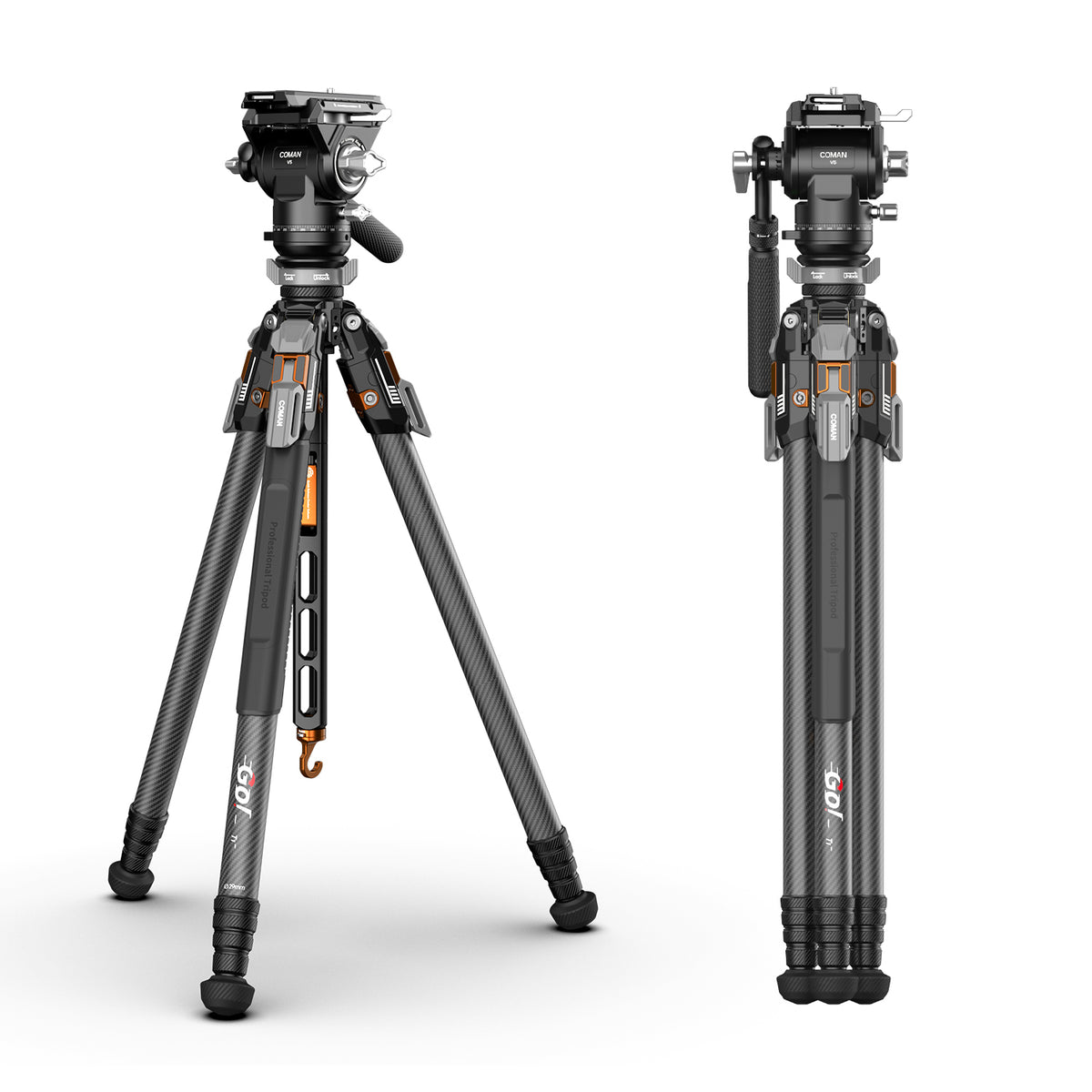

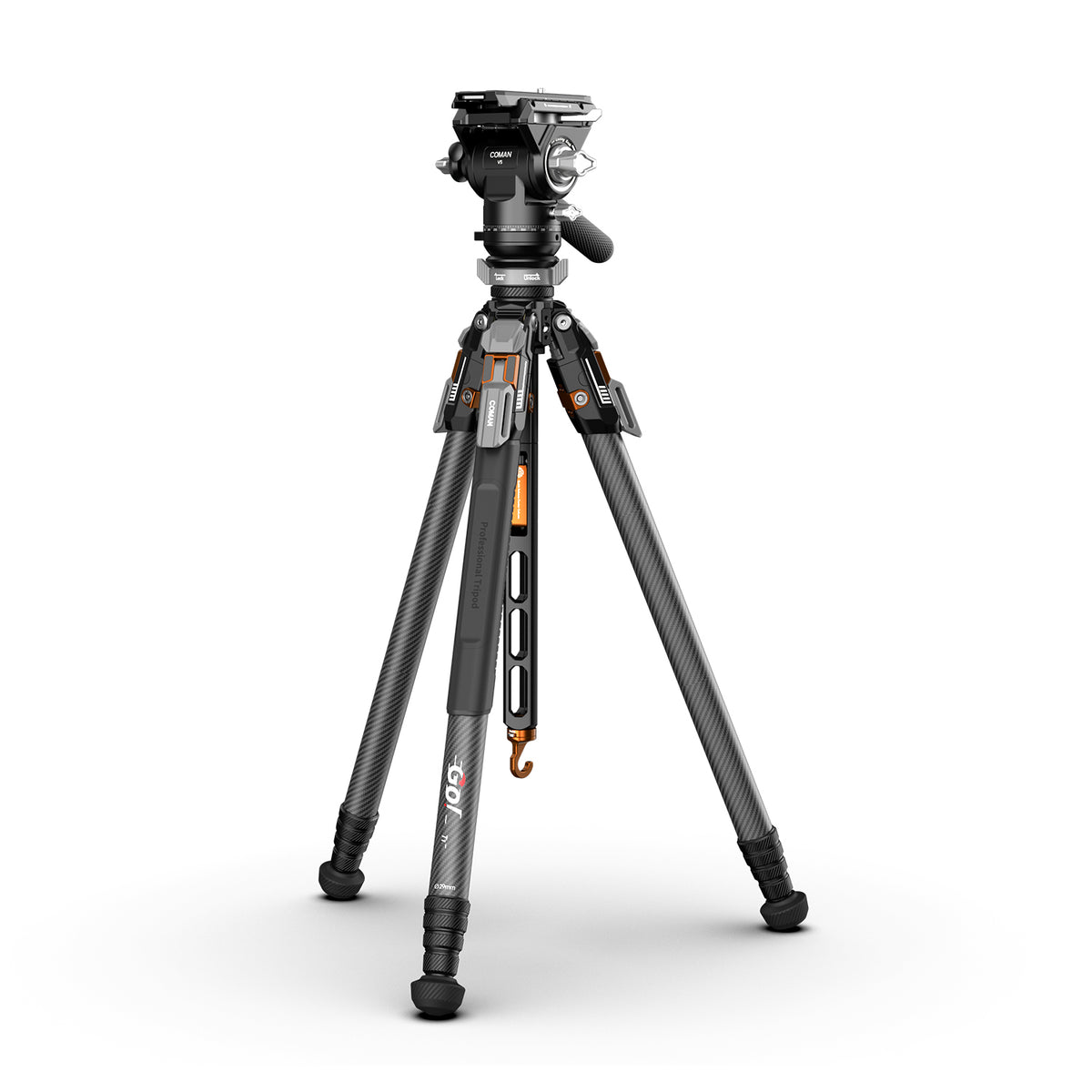

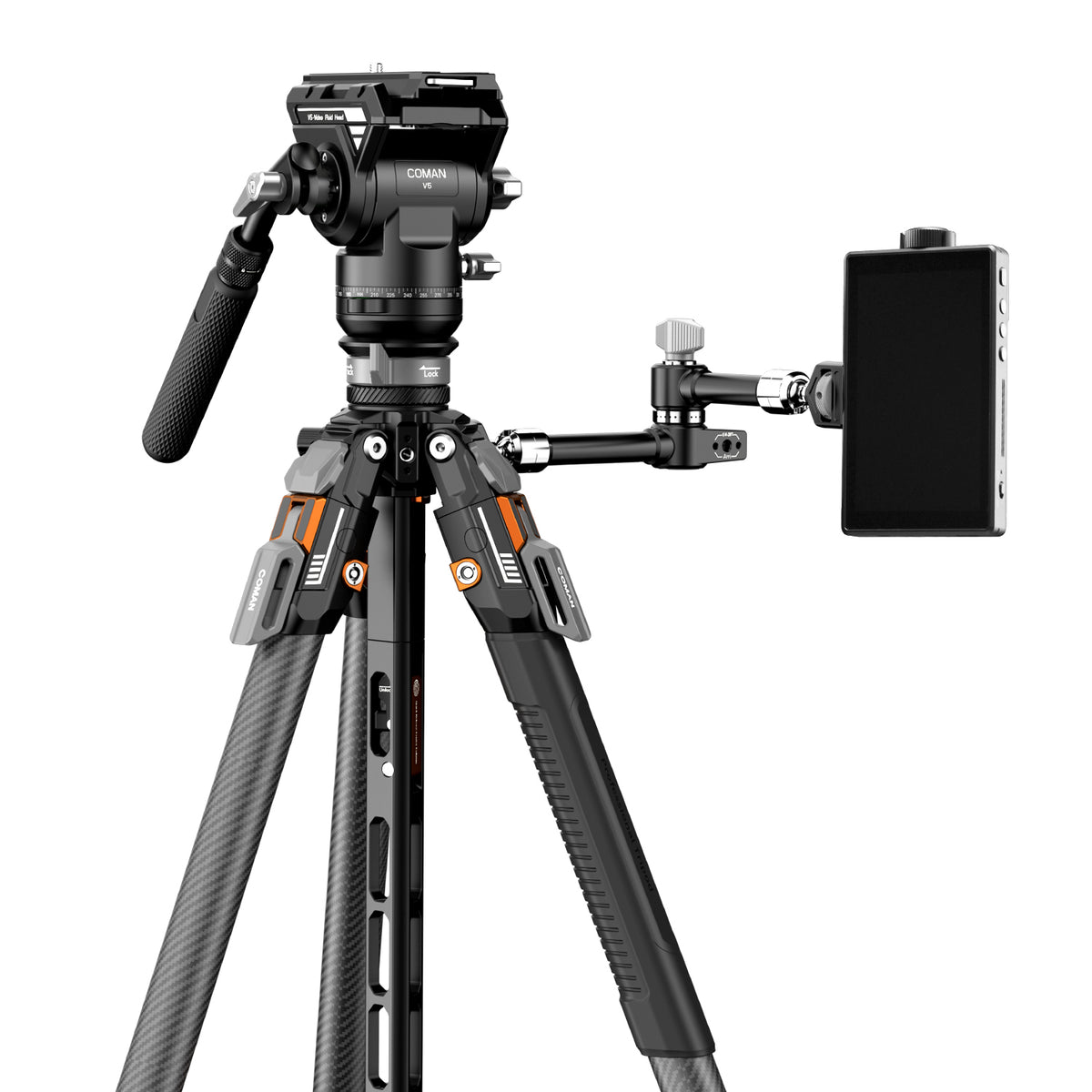

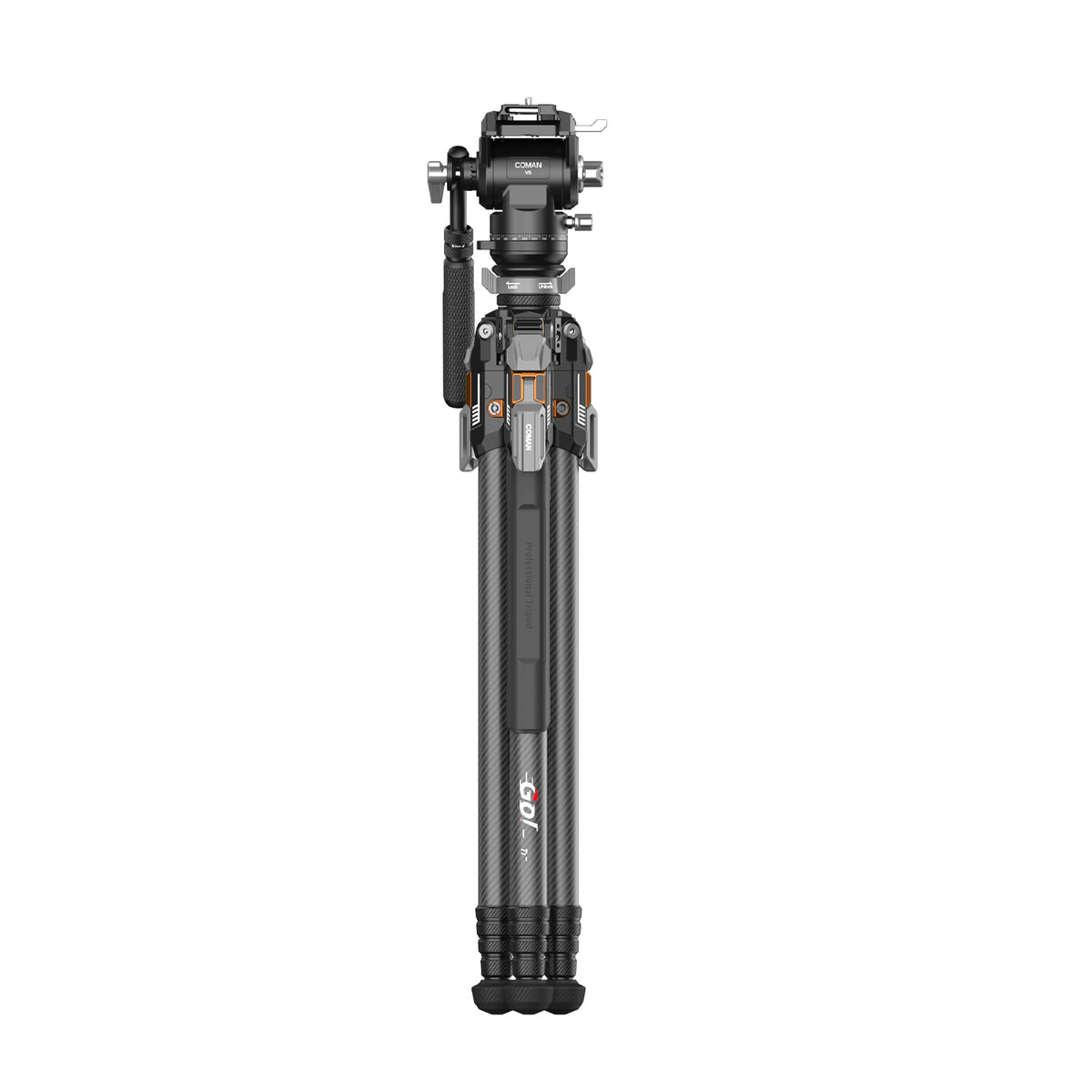

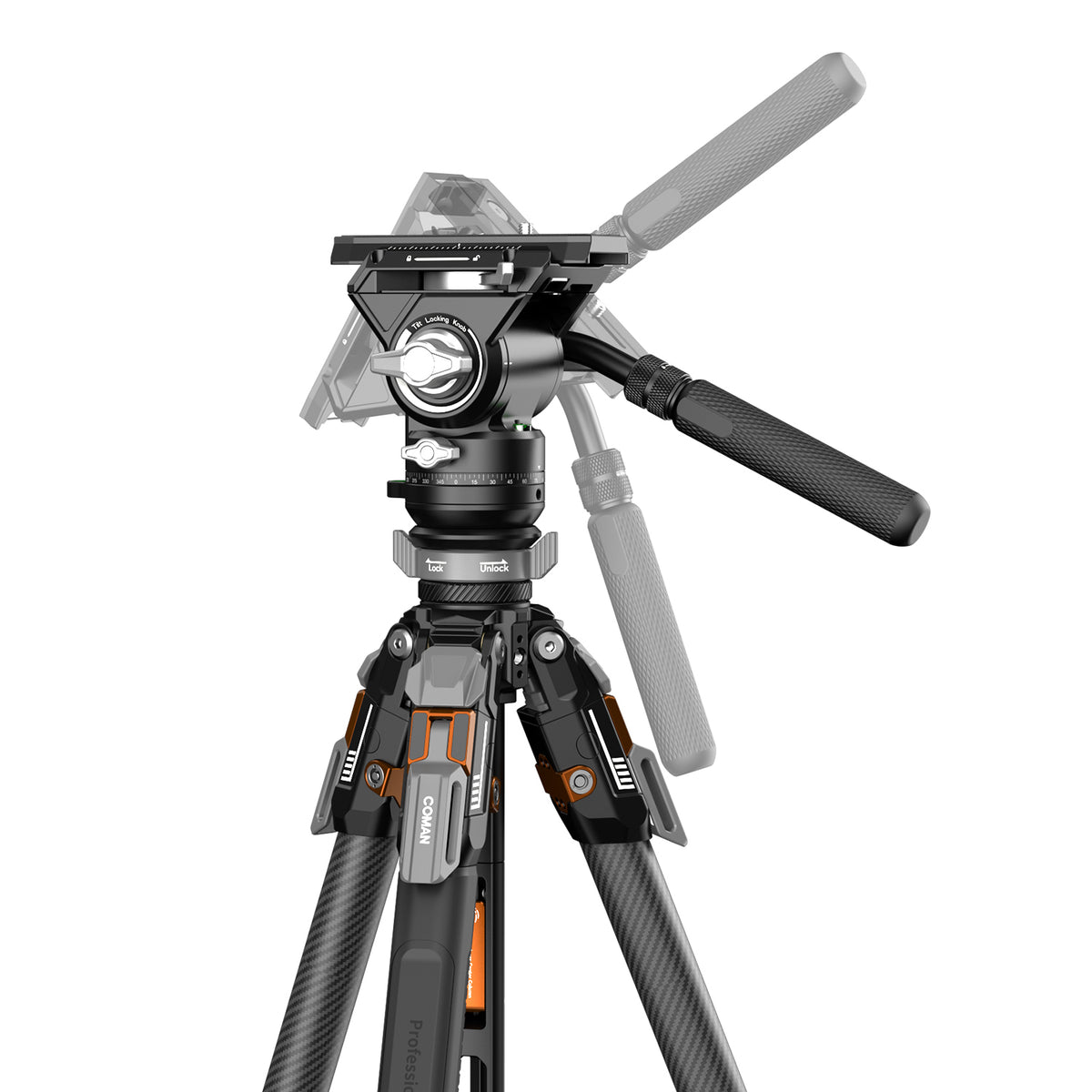

T1SV5 Snap-Open Carbon Fiber Tripod
The 4-section carbon fiber legs extend up to 68.9 in / 175 cm and fold down to 27.8 in / 70.5 cm for easier transport. Three adjustable leg angles of 21° / 54° / 79° allow quick switching between studio, outdoor, and low-angle shooting setups.

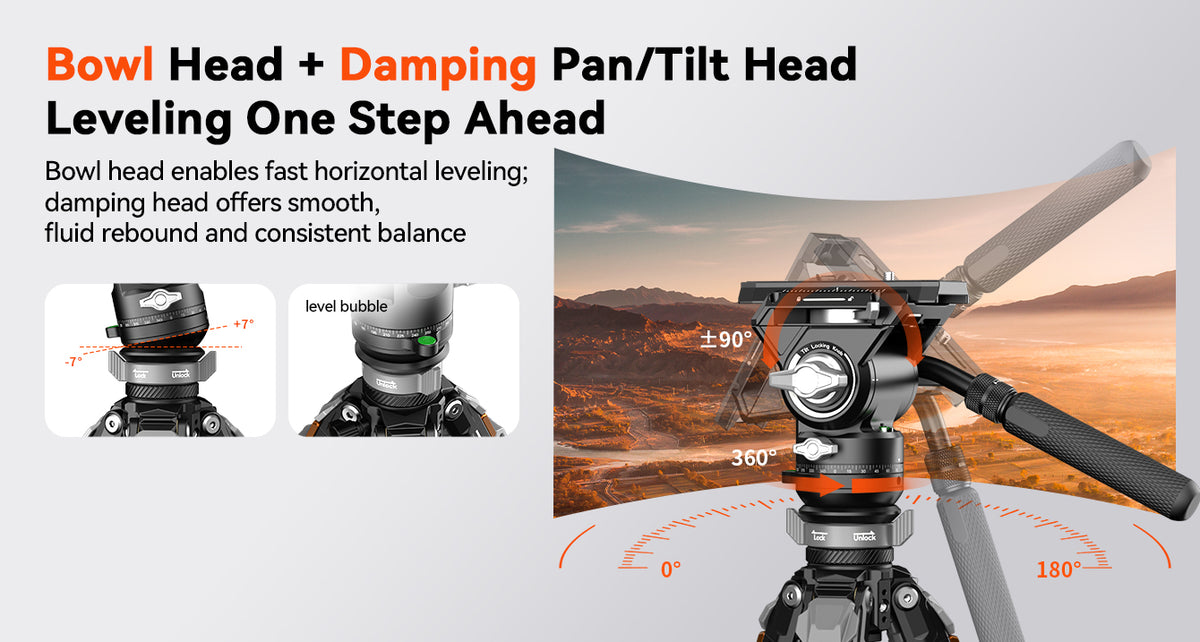

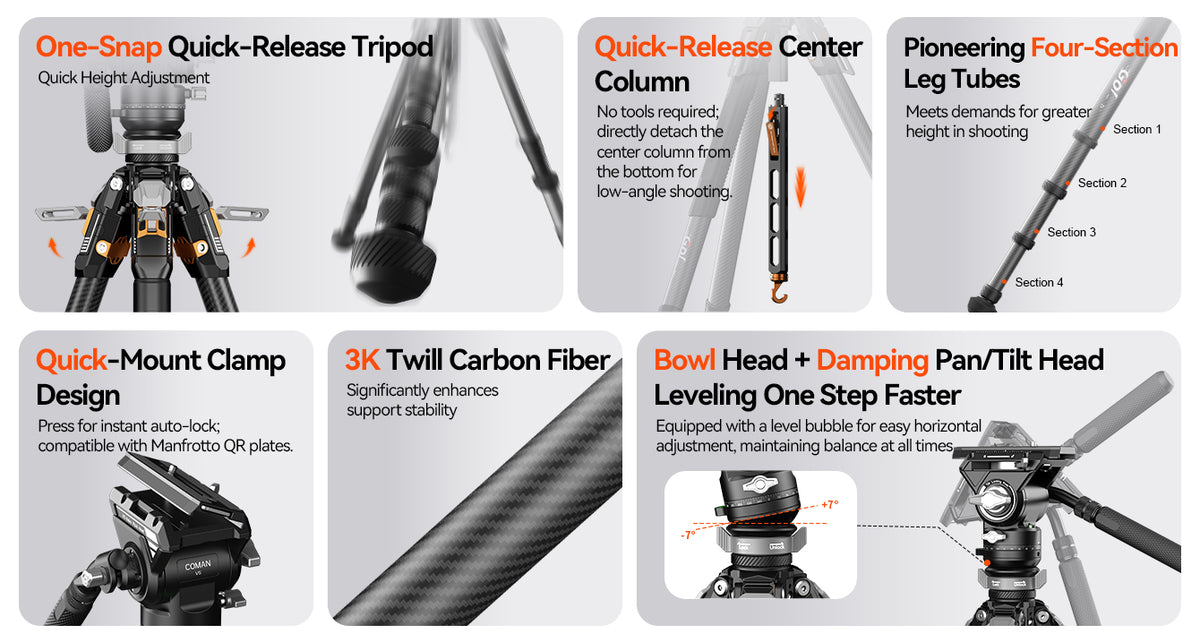

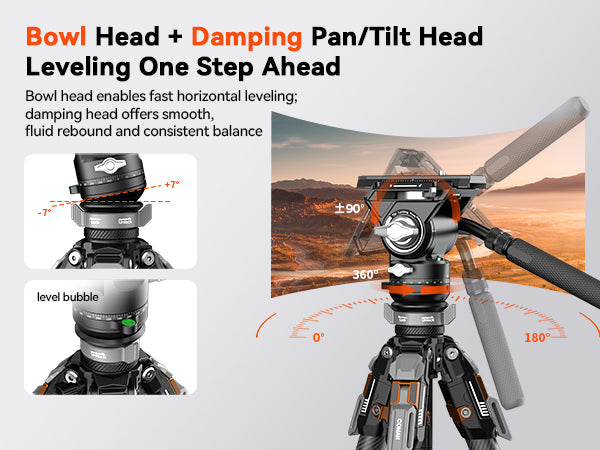

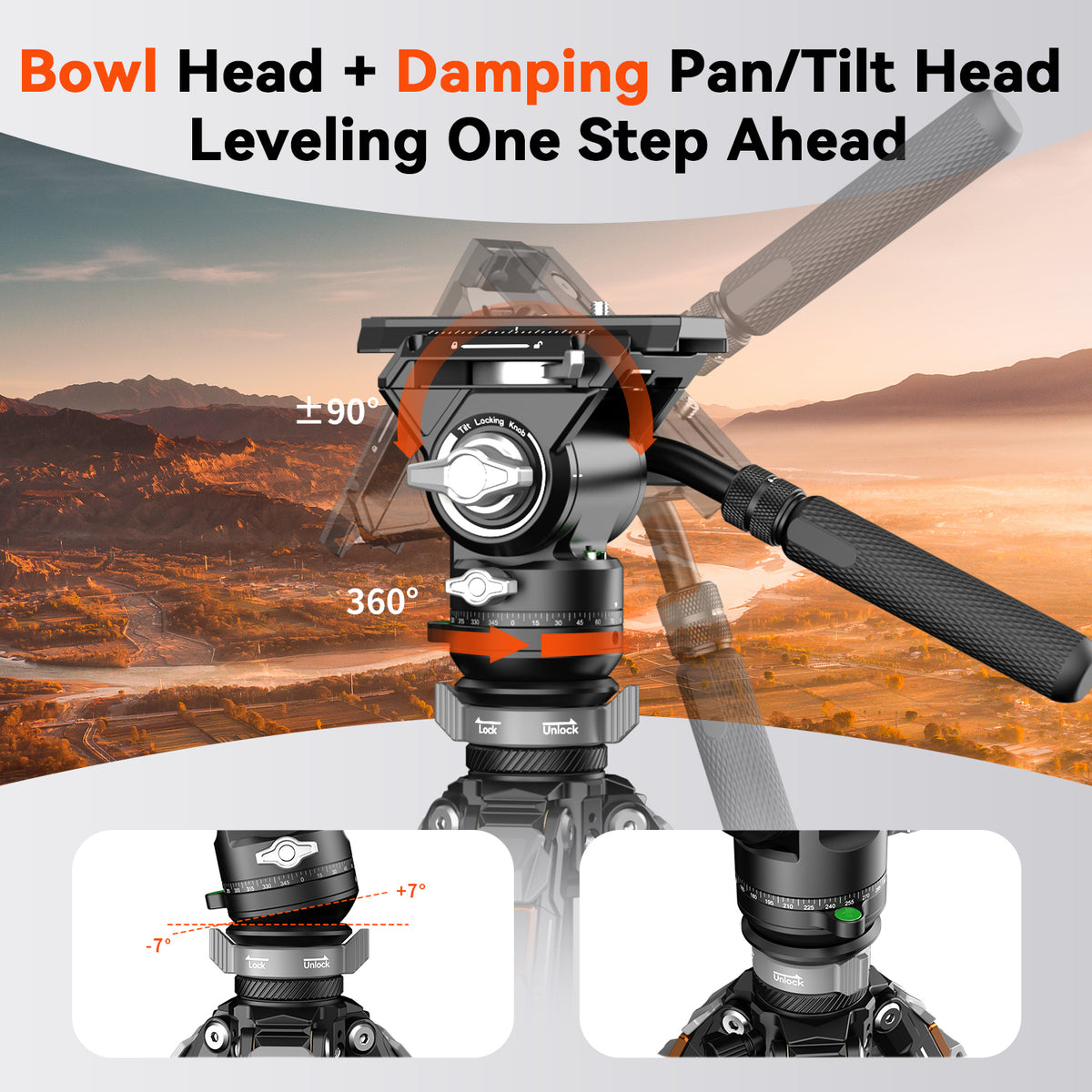

Bowl Head + Hydraulic Pan/Tilt for Fast Leveling
Equipped with a bowl head and V5 hydraulic pan/tilt head, the T1SV5 enables fast horizontal leveling with a built-in bubble level. Smooth fluid damping and consistent counterbalance provide controlled movement for professional video and photography.

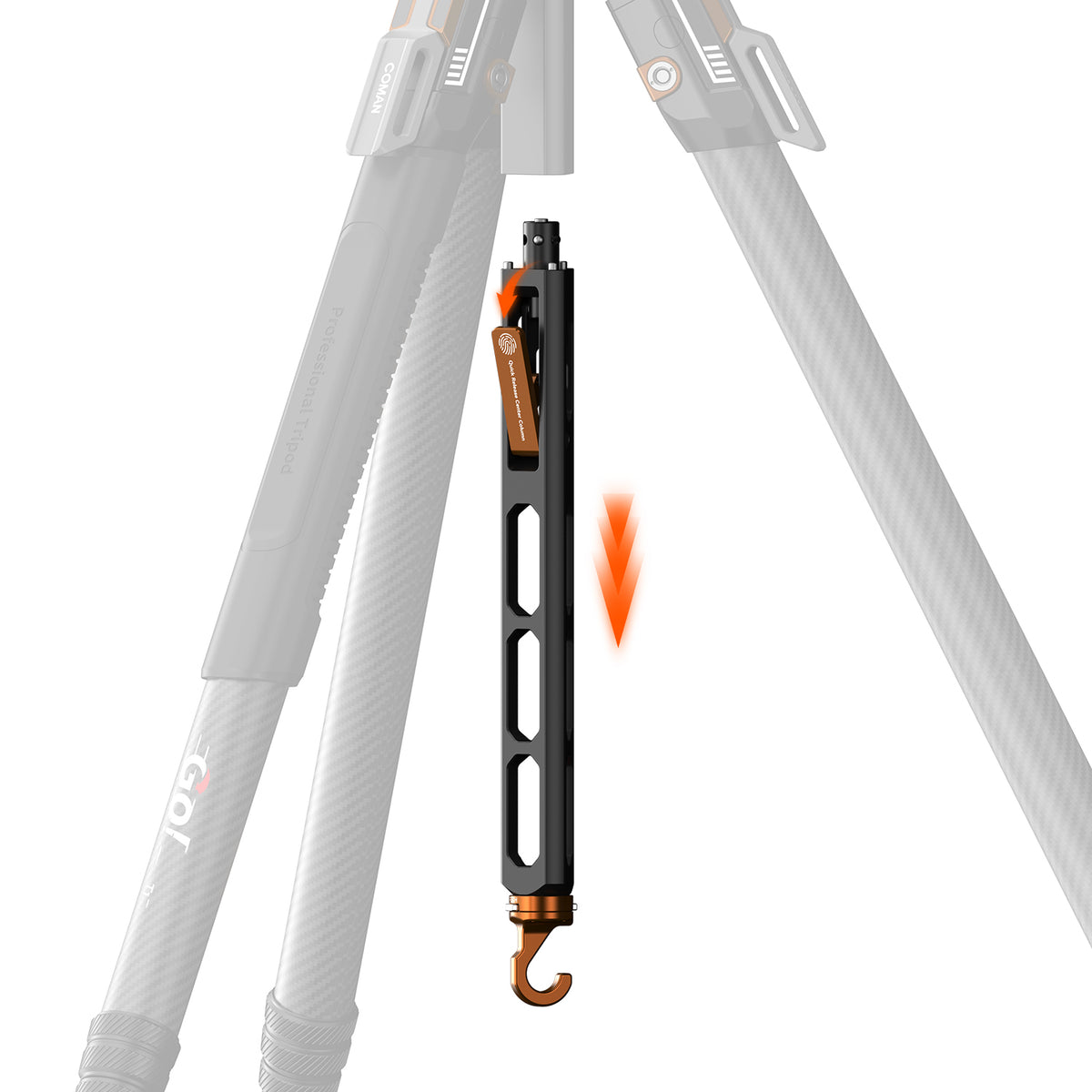

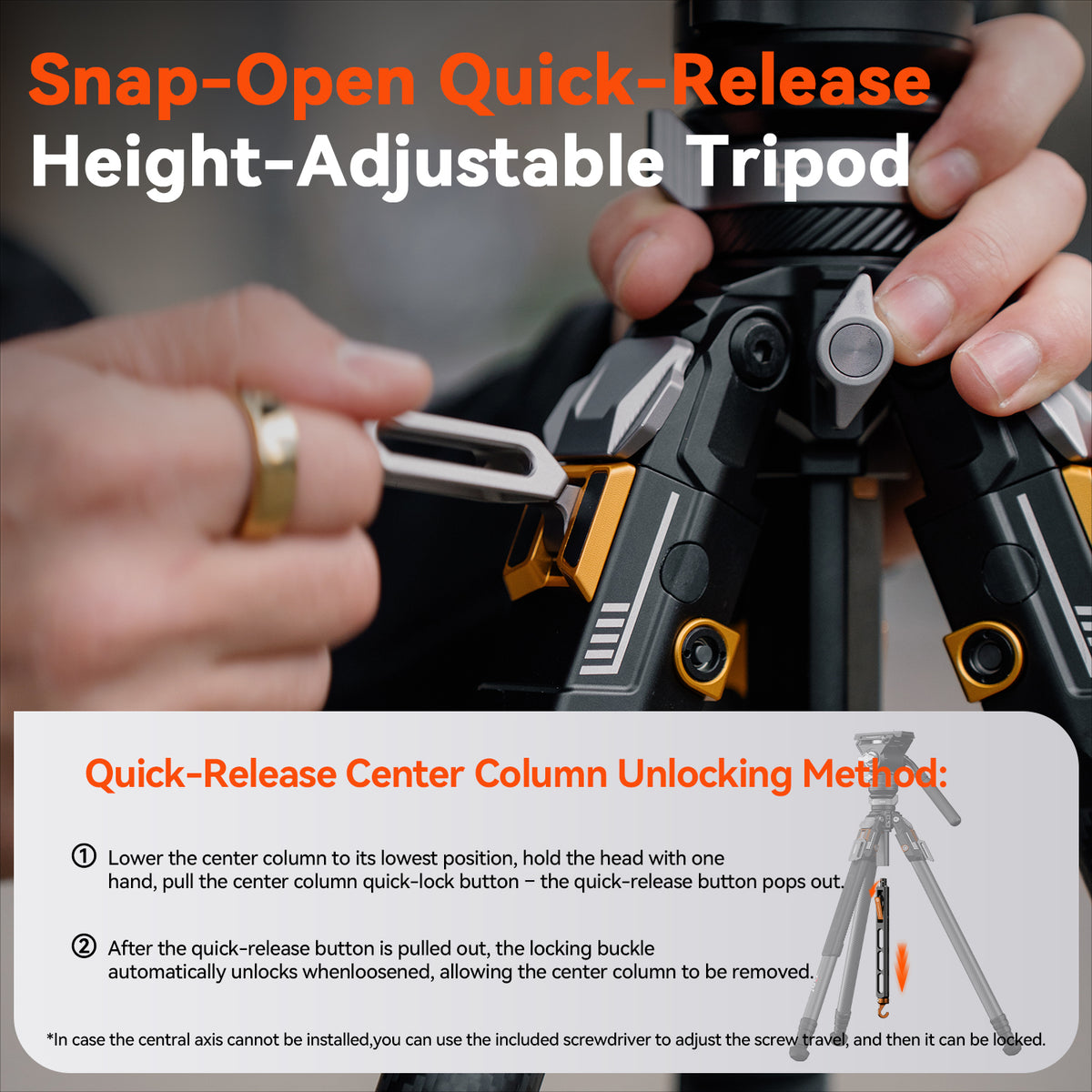

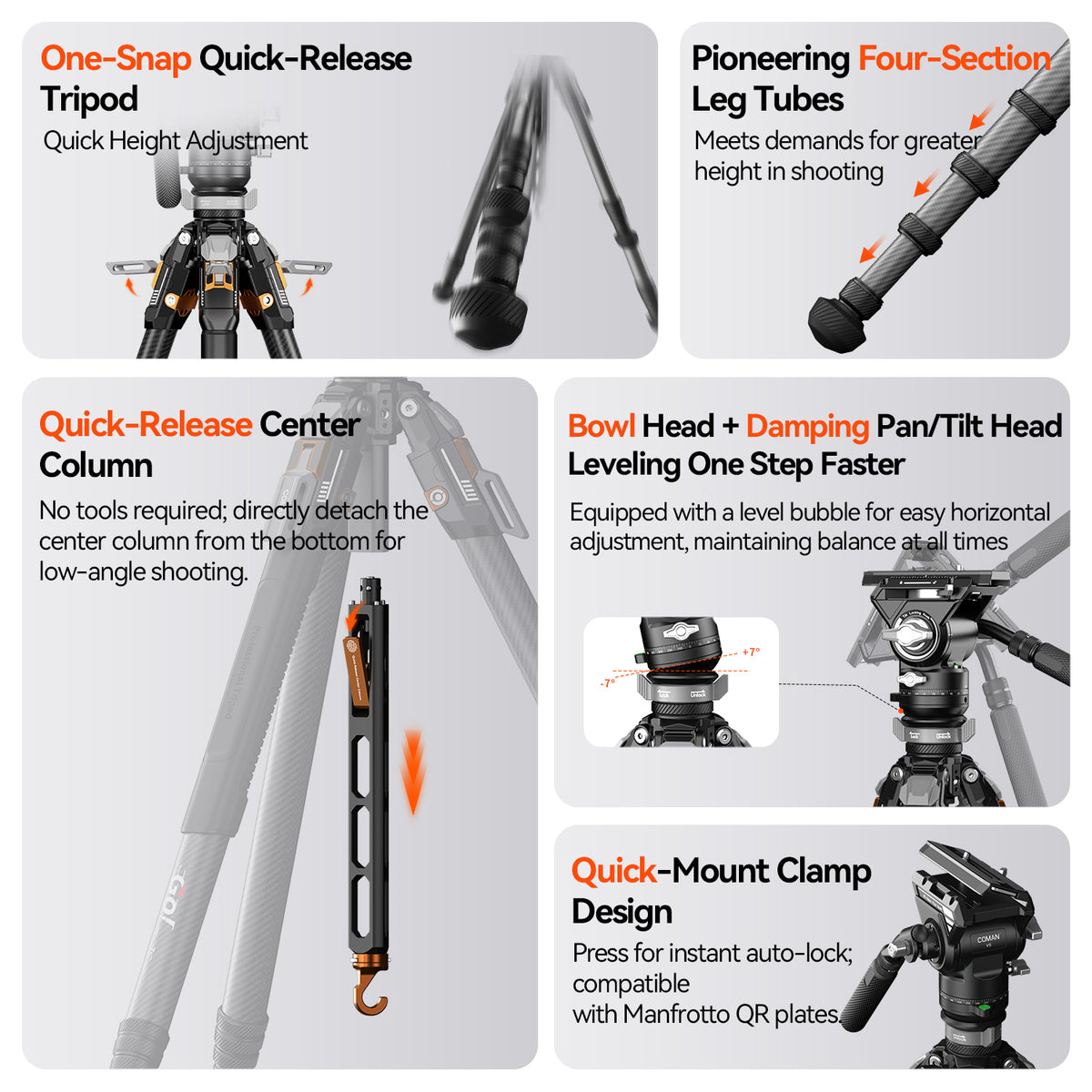

One-Snap Quick-Release Center Column
The tool-free quick-release design allows the center column to be detached directly from the bottom for instant low-angle shooting. Lower the center column, pull the quick-lock button, and the locking buckle releases automatically for easy removal.

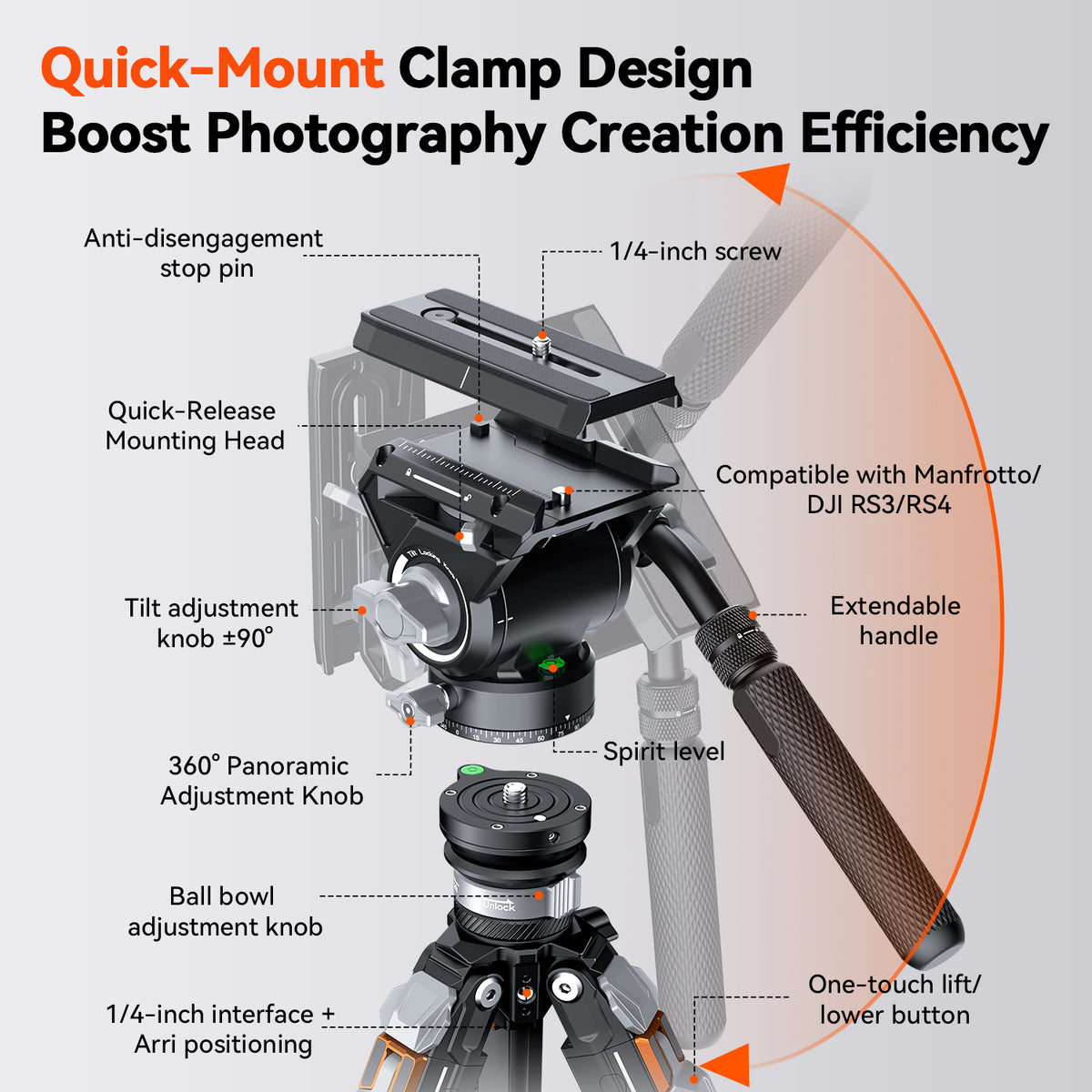

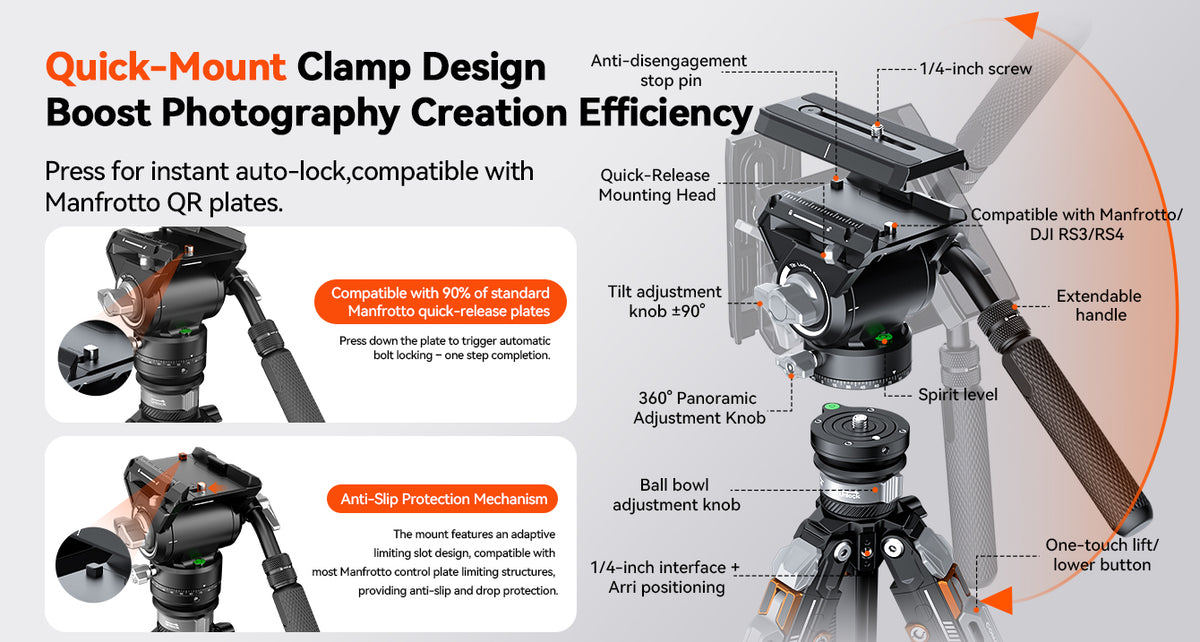

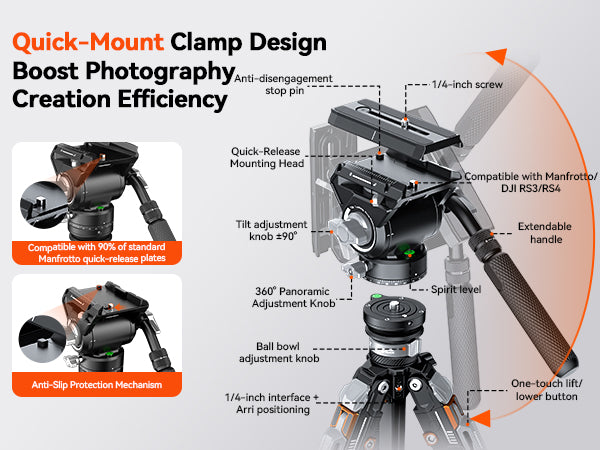

Quick-Mount Clamp – Compatible with Manfrotto QR Plates
The quick-mount clamp supports instant auto-lock installation and is compatible with approximately 90% of standard Manfrotto quick-release plates. The adaptive limiting-slot design improves anti-slip and anti-drop protection for secure one-step mounting.
Premium 3K Twill Carbon Fiber & Aluminum Alloy
High-strength 3K twill carbon fiber legs and durable aluminum alloy components provide reliable stability while keeping the tripod practical for transport and professional shooting.

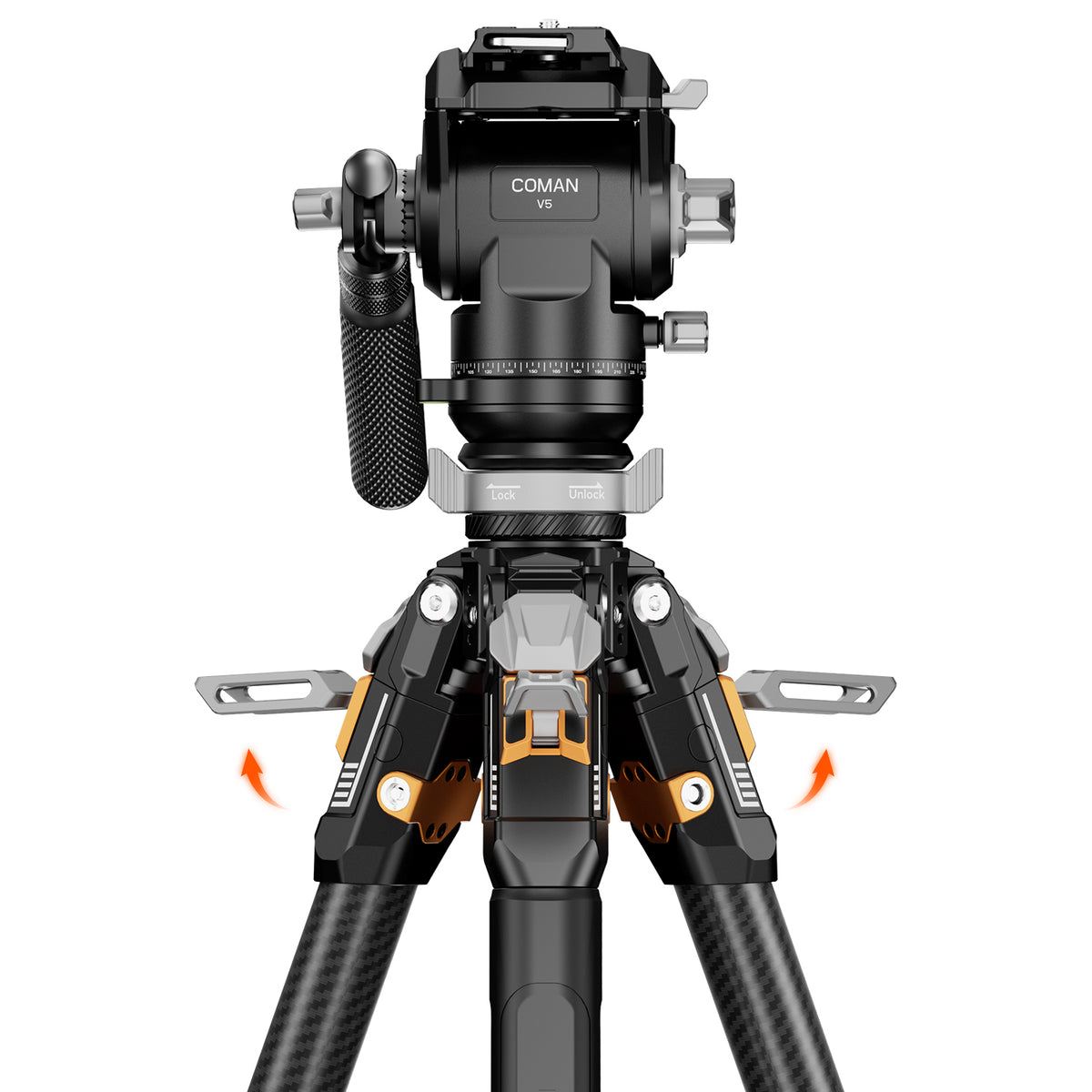

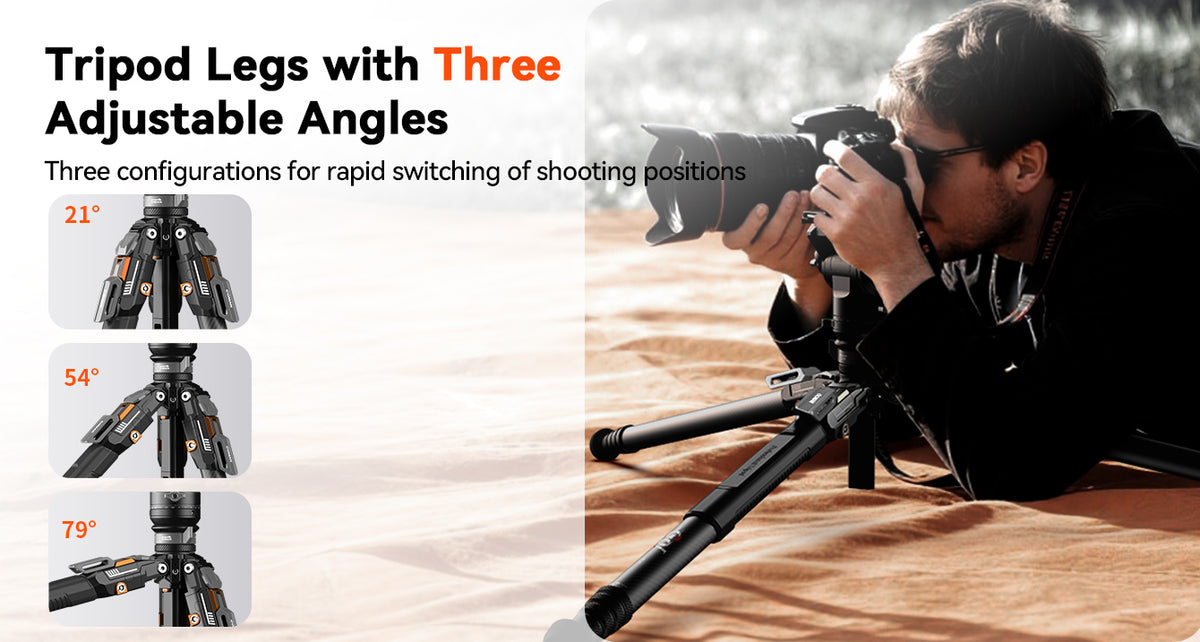

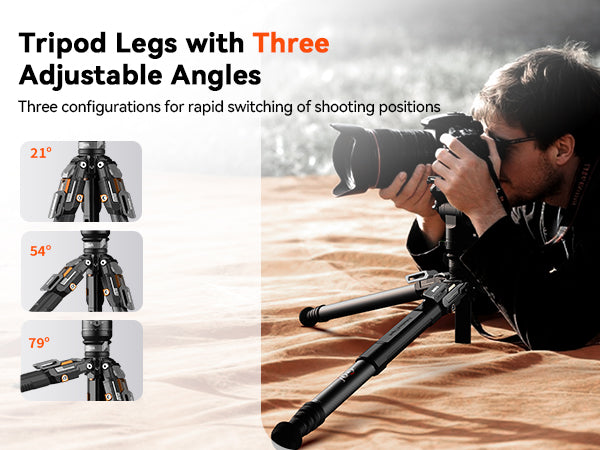

Three-Angle Adjustable Tripod Legs
The tripod supports low-angle, standard-height, and wide-angle leg positions, allowing quick adjustment for different terrain and shooting environments.

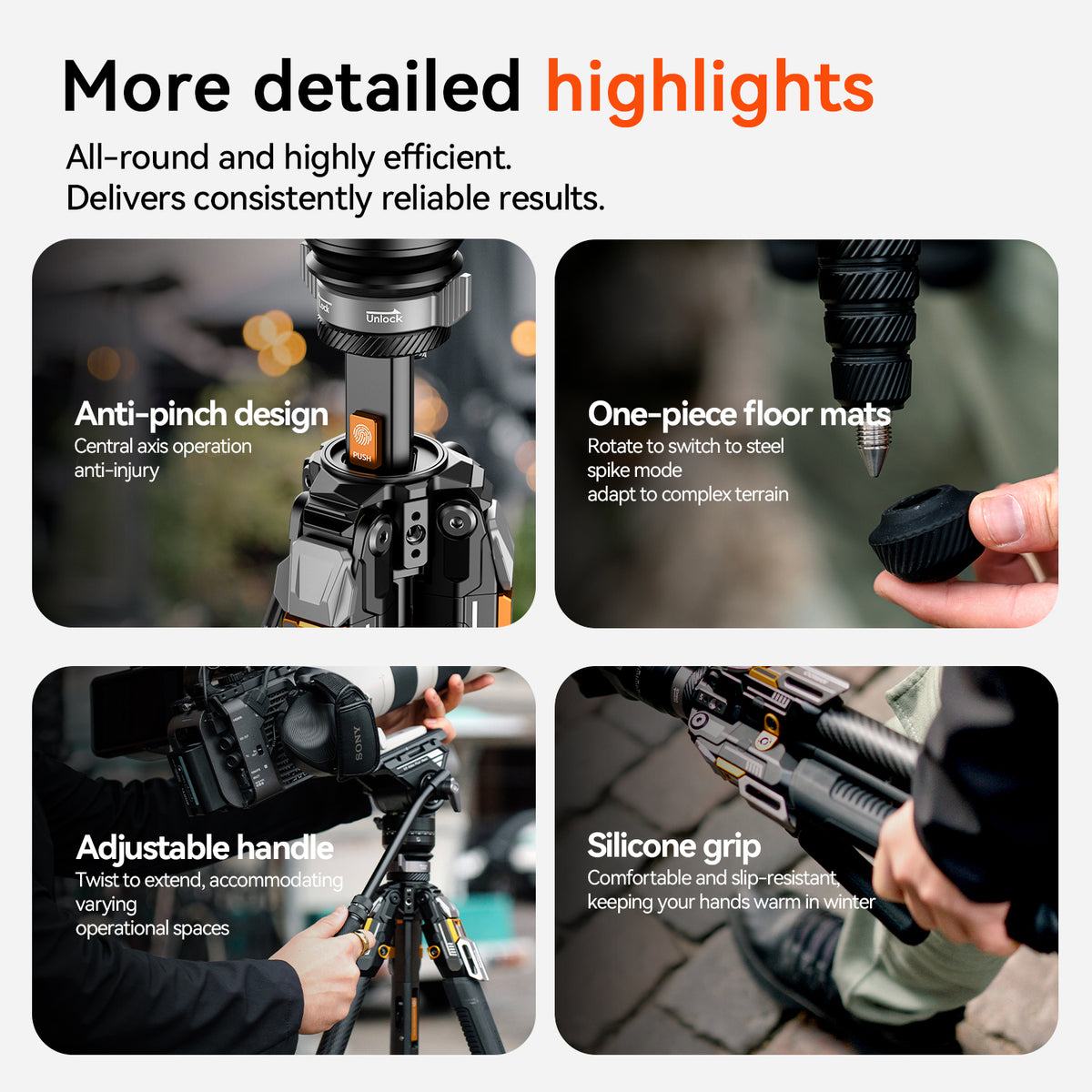

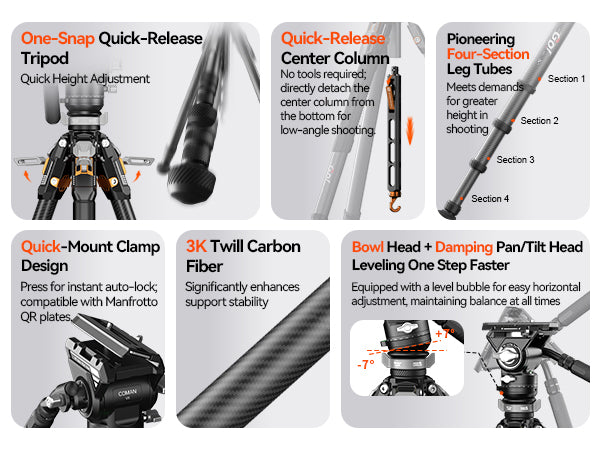

Professional Detail Enhancements
Features an anti-pinch center column for safer operation, one-piece foot pads that rotate to steel spike mode for complex terrain, an adjustable pan handle, comfortable non-slip silicone leg grips, and 1/4" plus ARRI locating interfaces for accessory expansion.

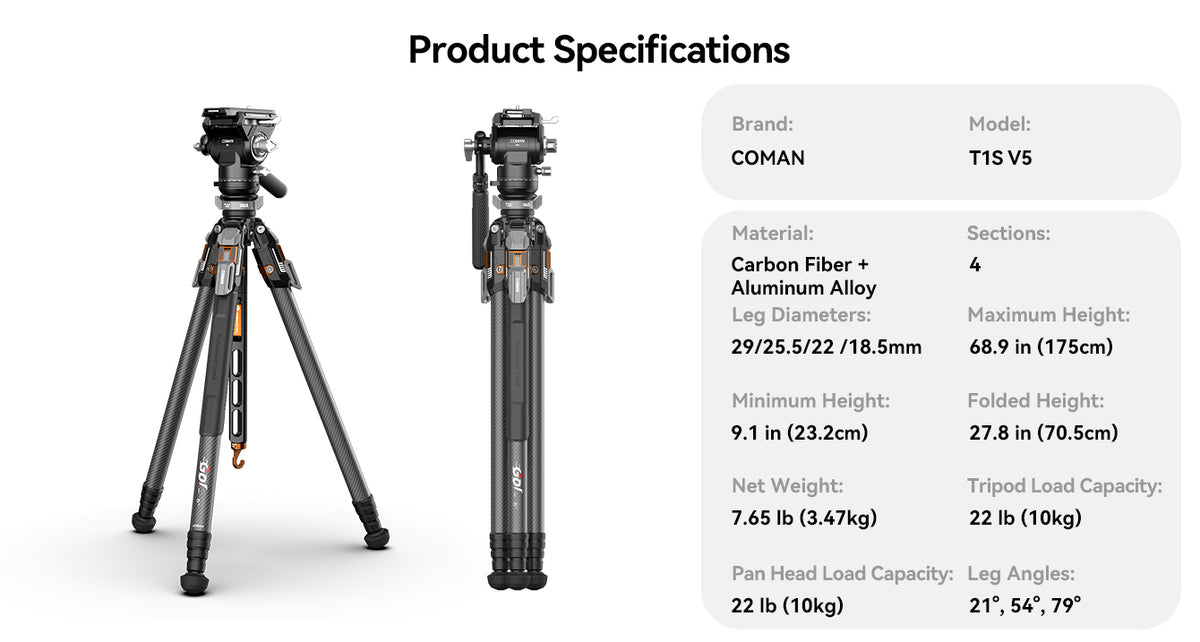

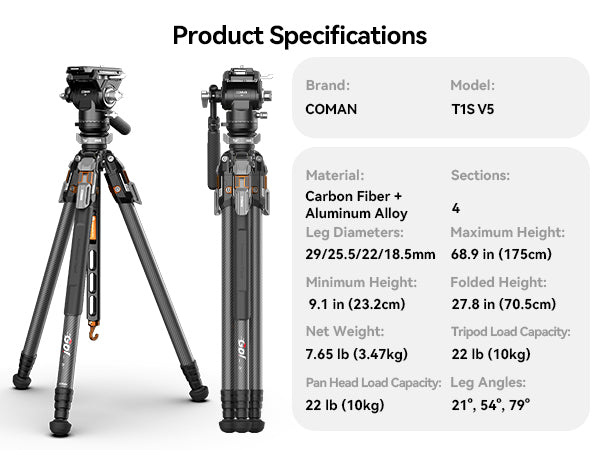

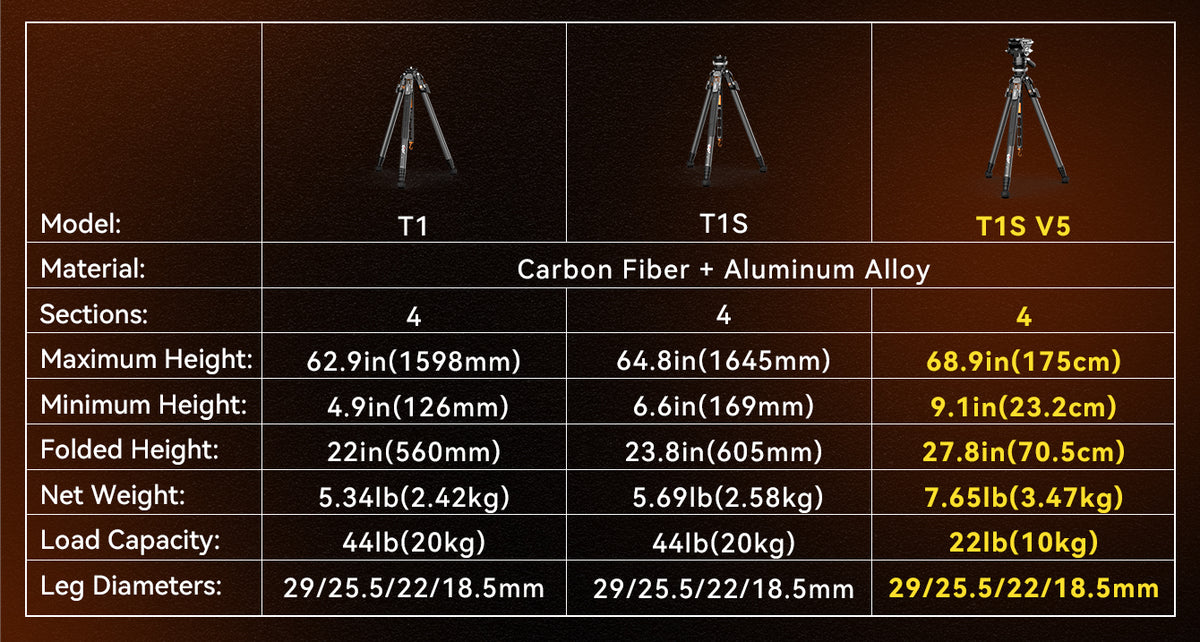

Technical Parameters
| Model | T1SV5Snap-Open Carbon Fiber Tripod |
|---|---|
| Material | Carbon Fiber + Aluminum Alloy |
| Sections | 4 |
| Leg Diameters | 29 / 25.5 / 22 / 18.5 mm |
| Maximum Height | 68.9 in / 175 cm |
| Minimum Height | 9.1 in / 23.2 cm |
| Folded Height | 27.8 in / 70.5 cm |
| Net Weight | 7.65 lb / 3.47 kg |
| Tripod Load Capacity | 22 lb / 10 kg |
| Pan Head Load Capacity | 22 lb / 10 kg |
| Leg Angles | 21° / 54° / 79° |
