M1V5

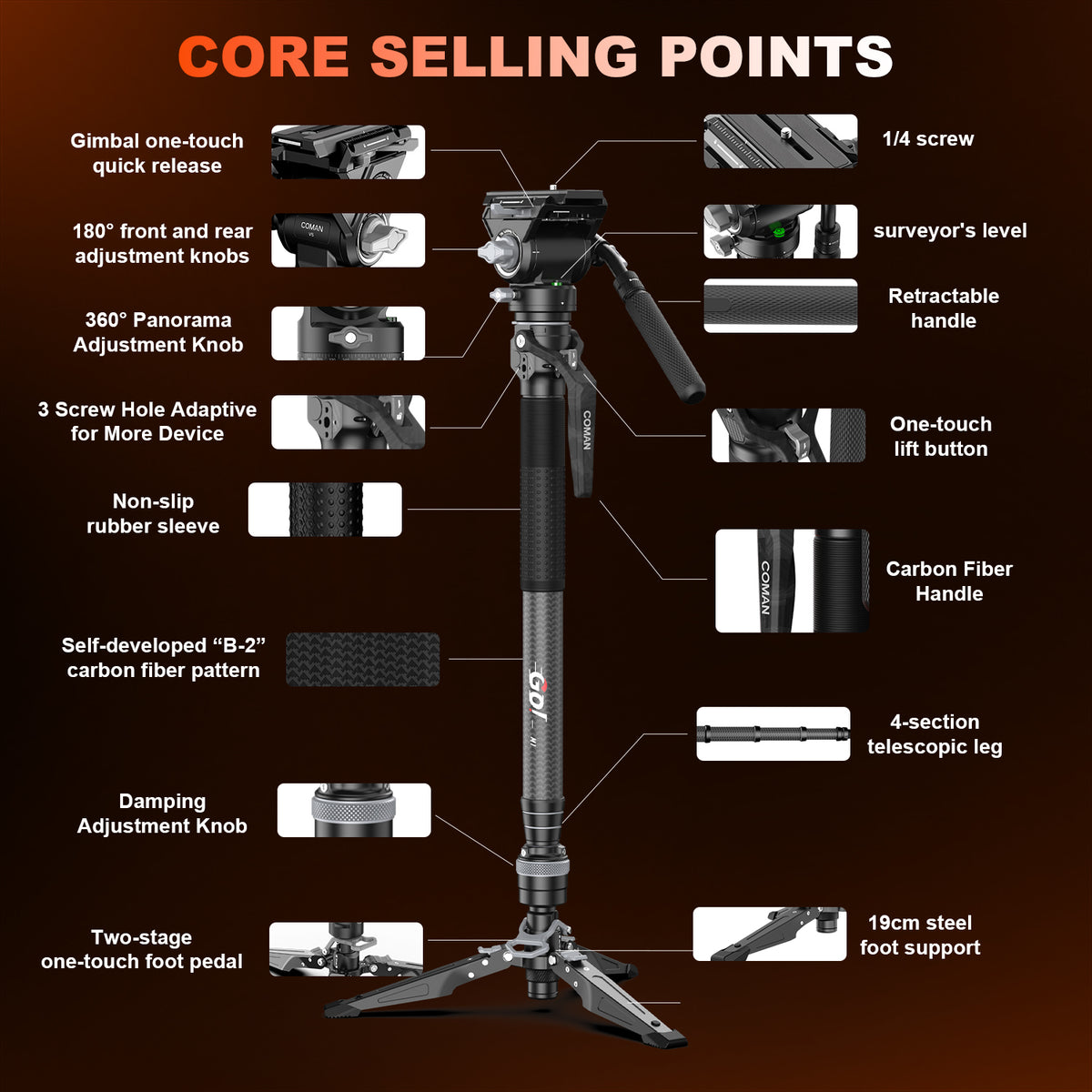

Key Features

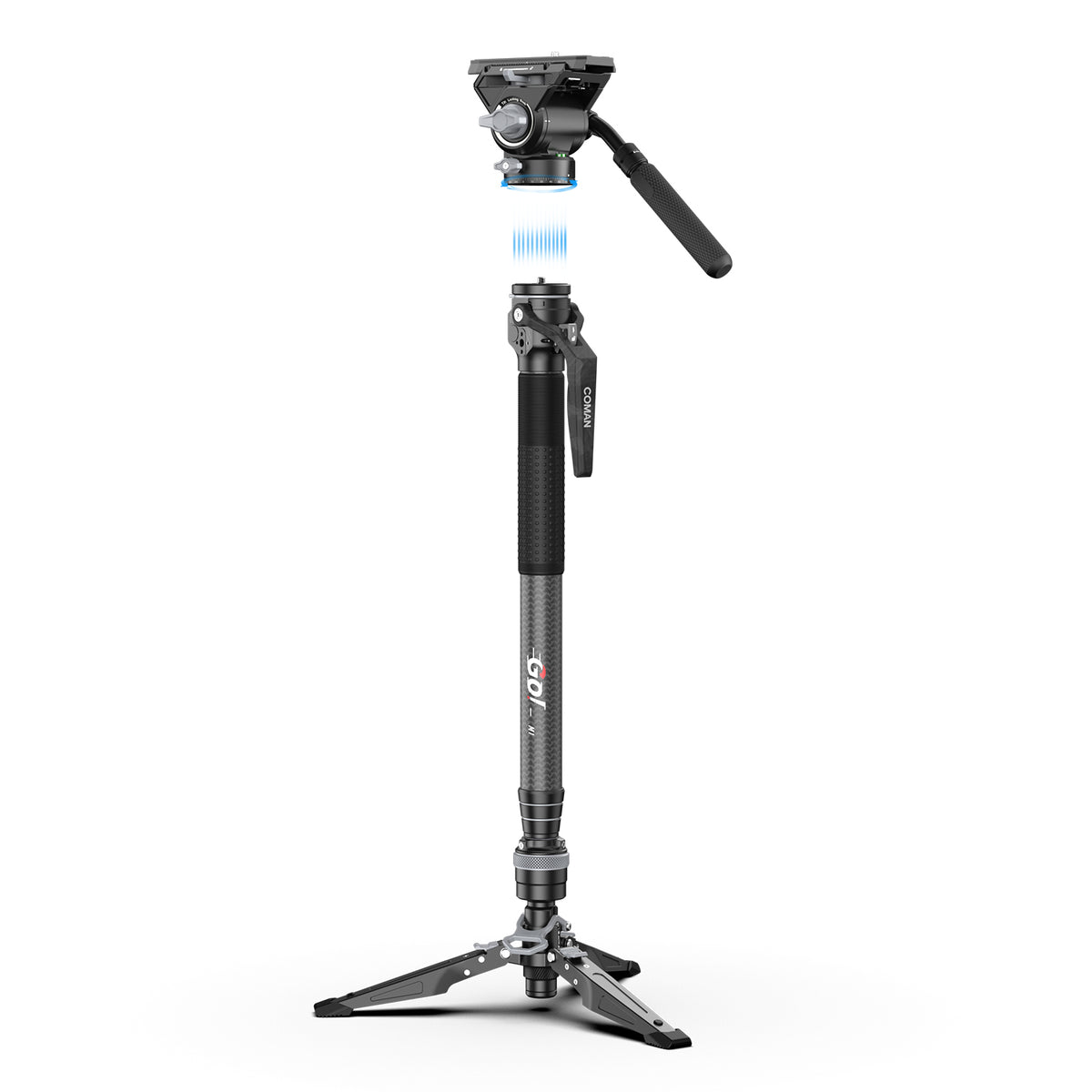

Integrated Hydraulic Head & Four-Section Carbon Monopod
The COMAN M1V5 combines a professional V5 hydraulic fluid head with a four-section B-2 carbon fiber monopod, providing a complete support solution for photography, videography, travel, and sports shooting.

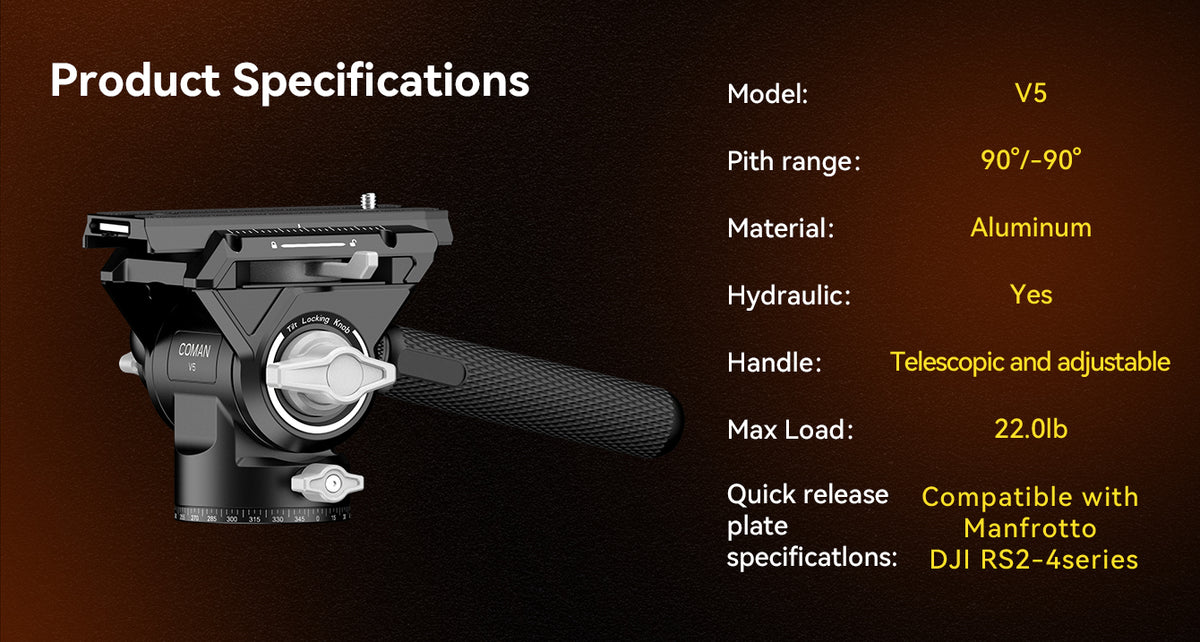

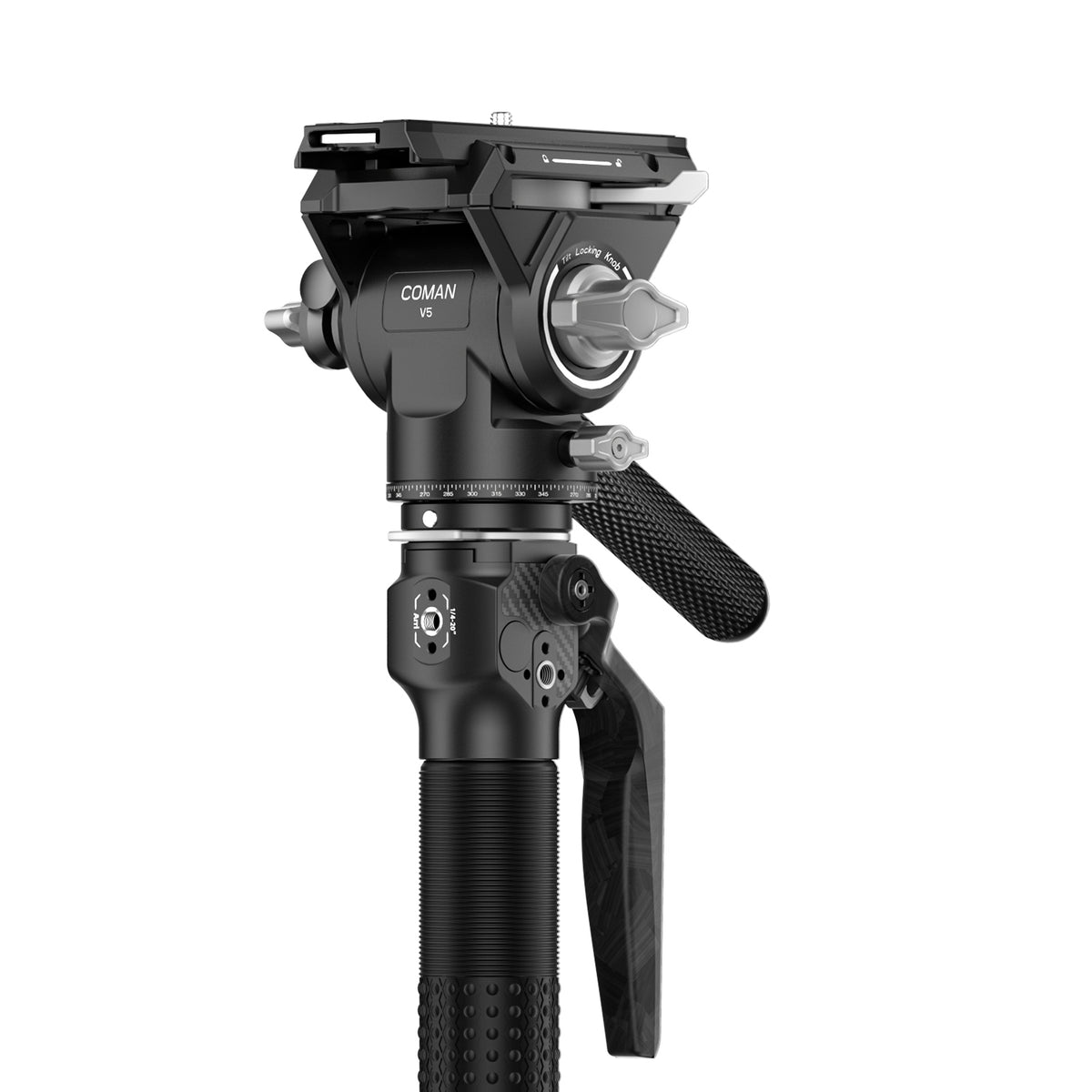

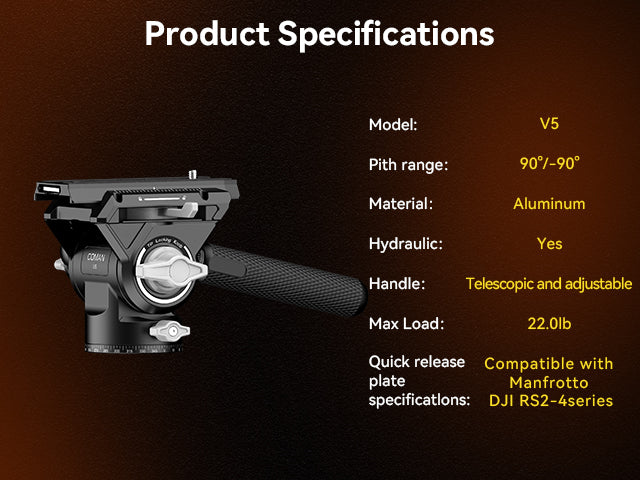

V5 Hydraulic Fluid Head for Smooth Motion
The professional V5 hydraulic fluid head supports ±90° tilt and 360° panoramic panning for smooth and controlled camera movement, making it suitable for cinematic video, wildlife, sports, and travel shooting.

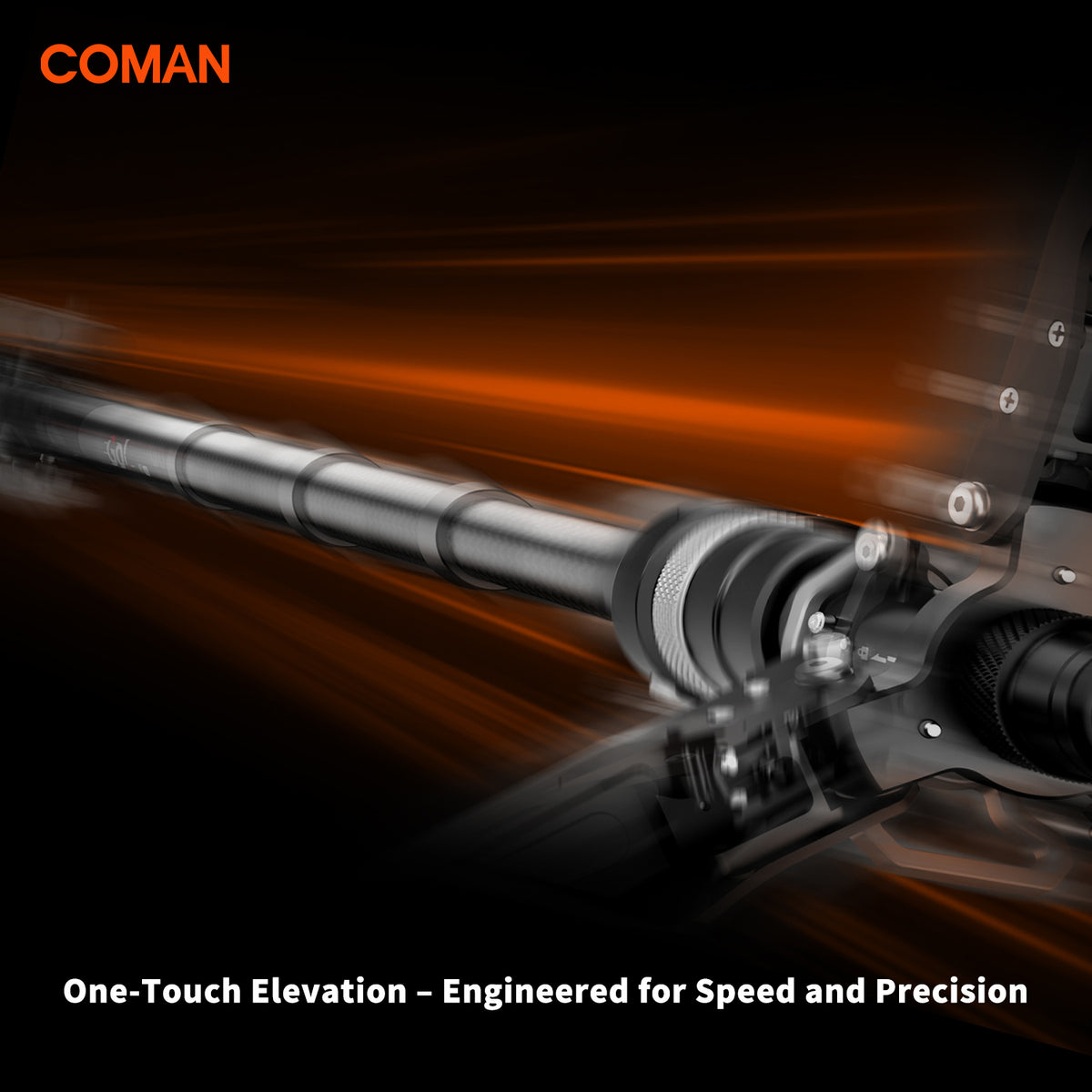

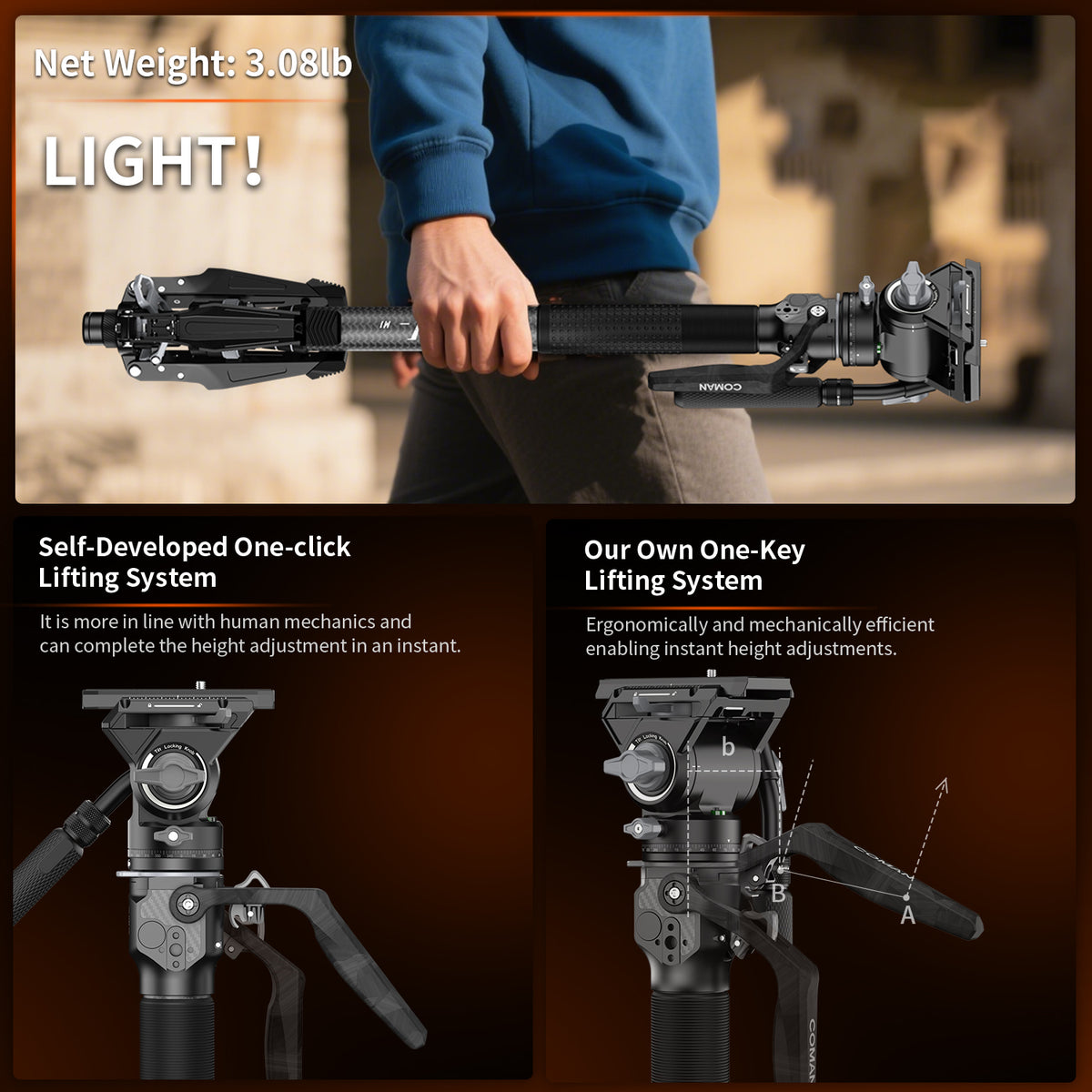

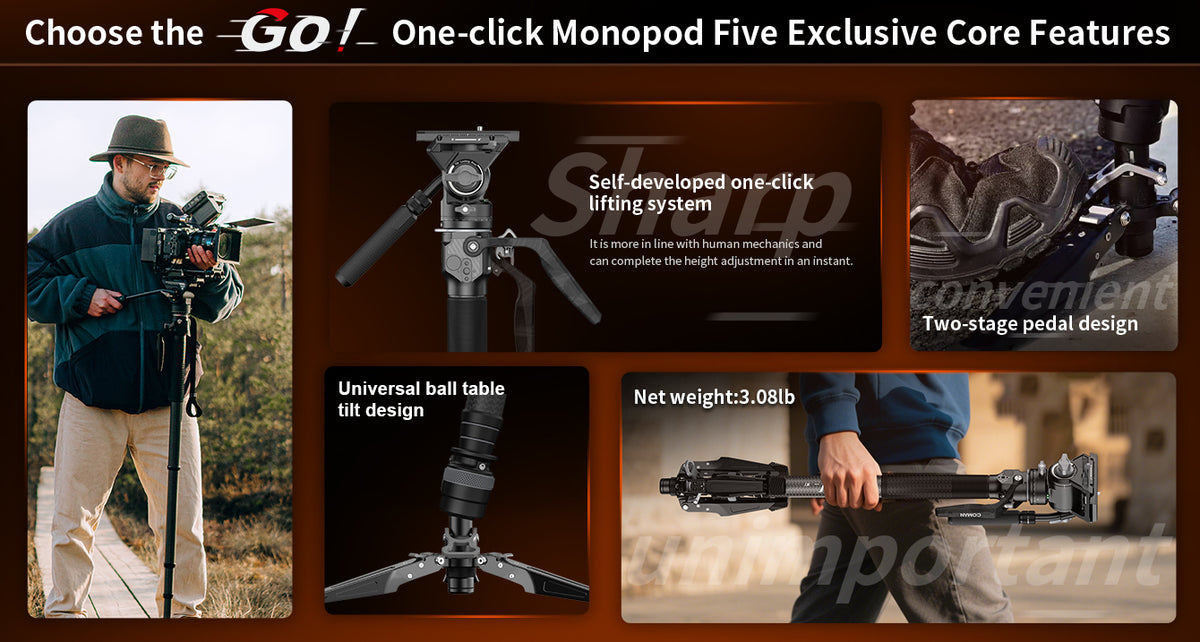

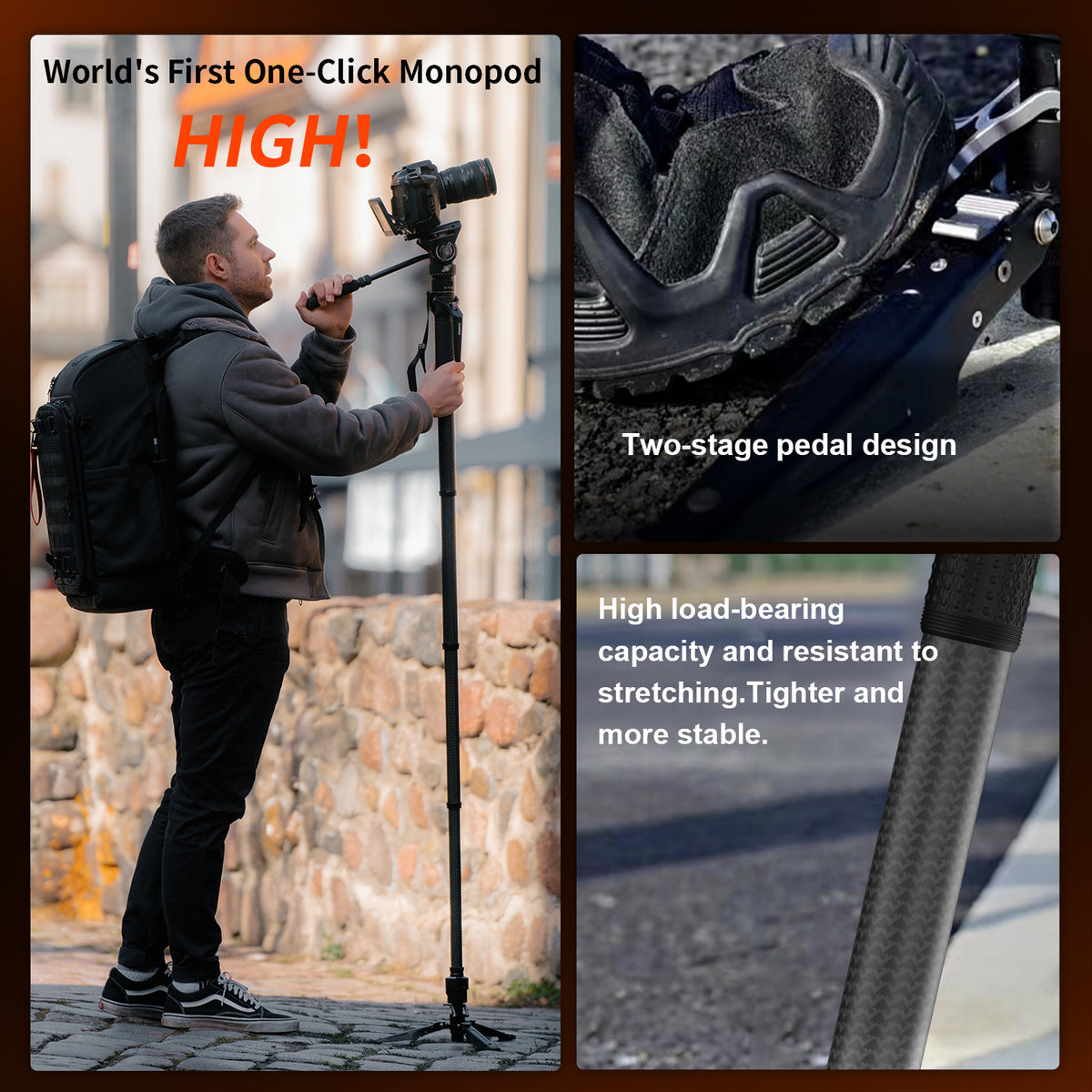

First-Ever Four-Section Quick-Lift Design

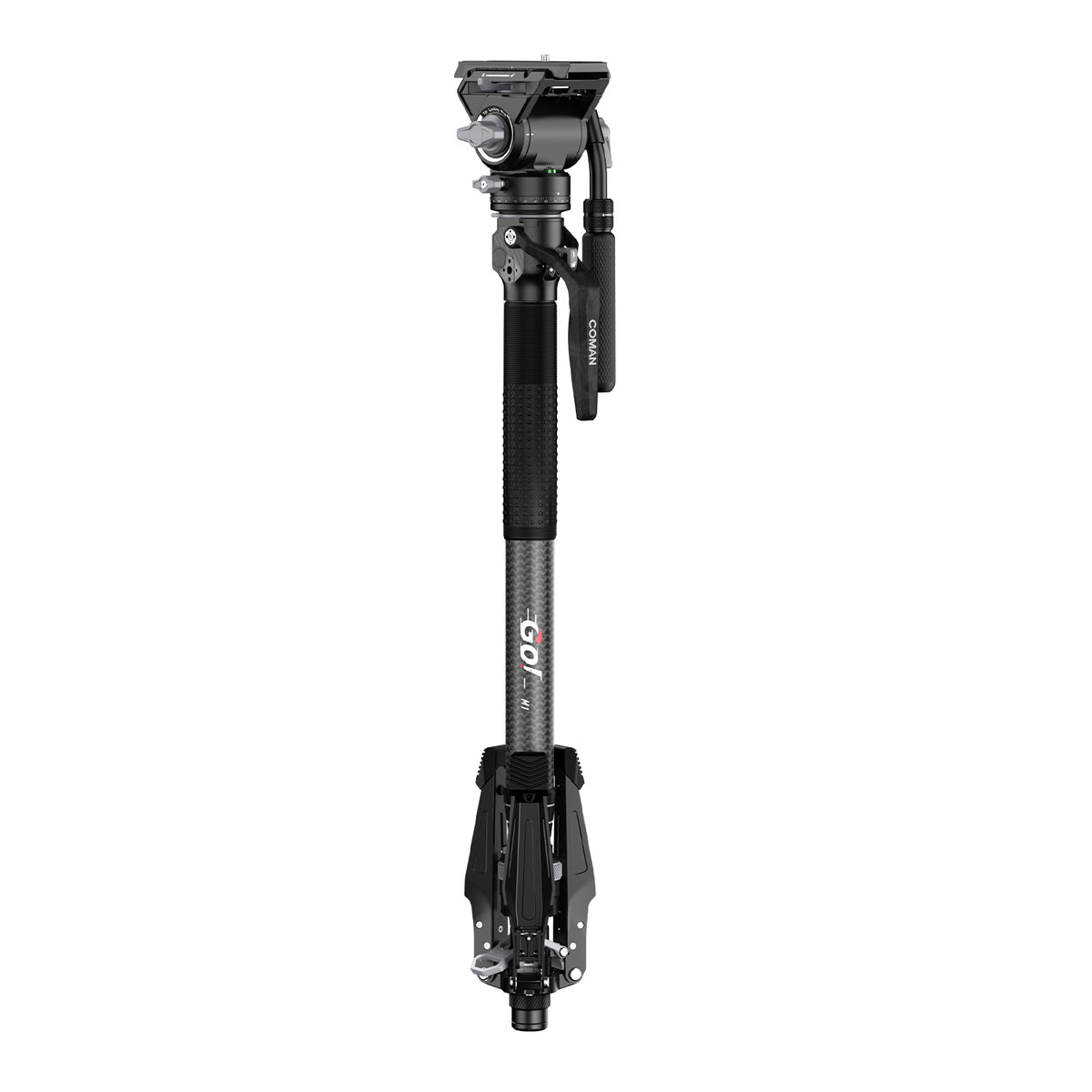

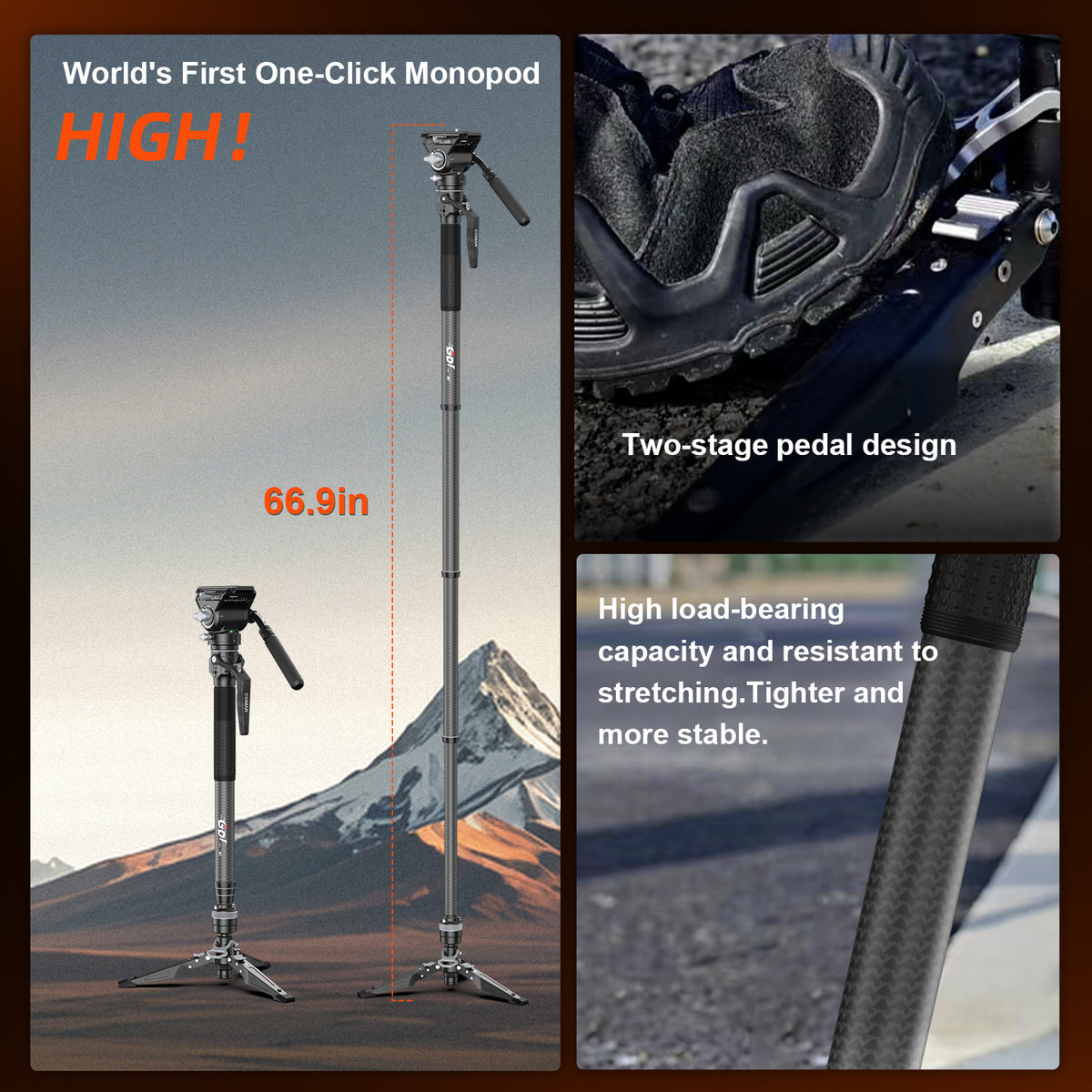

COMAN’s one-click lifting system enables fast height adjustment with a maximum height of 66.93 in / 1700 mm and a folded height of 27.95 in / 710 mm, combining extended working height with practical portability.

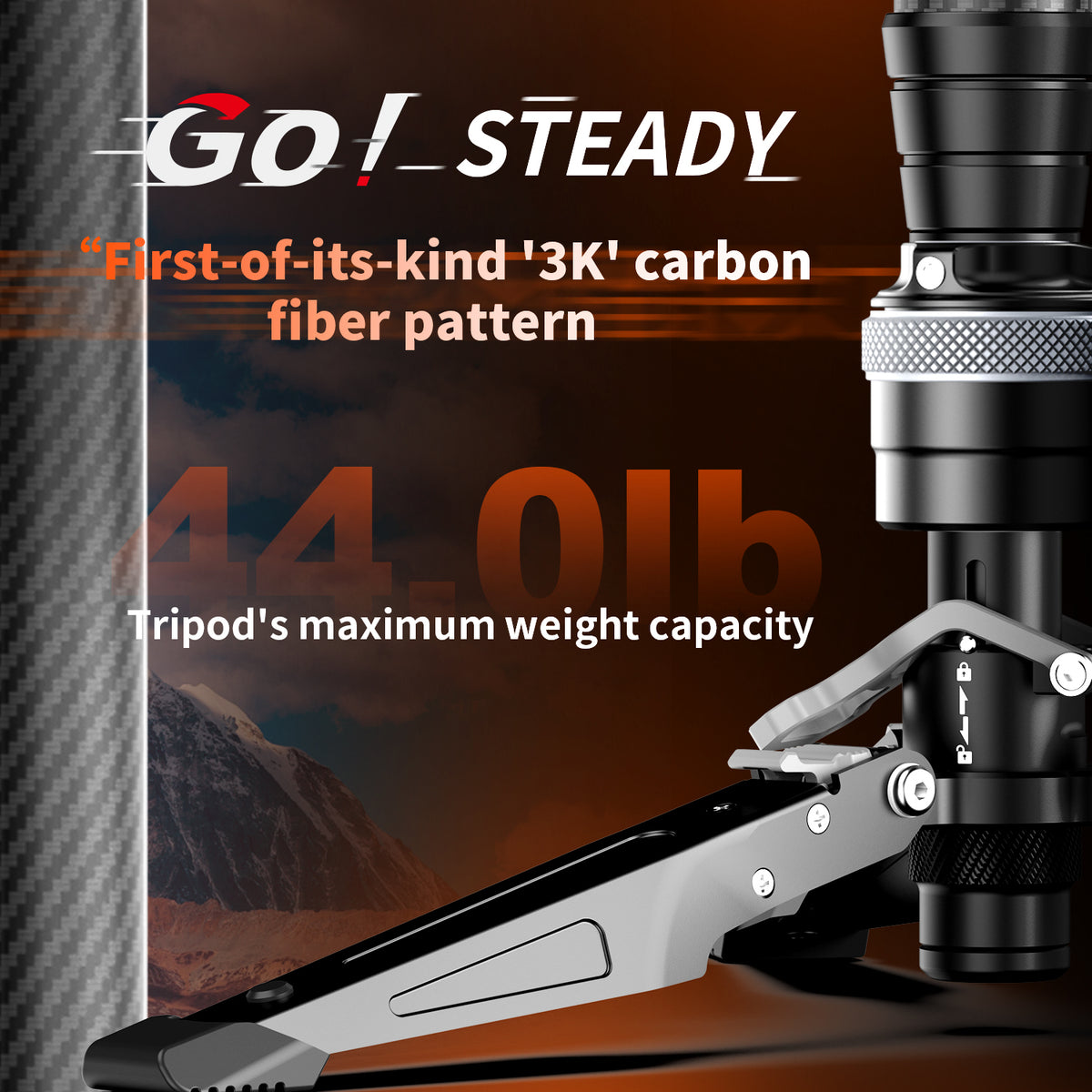

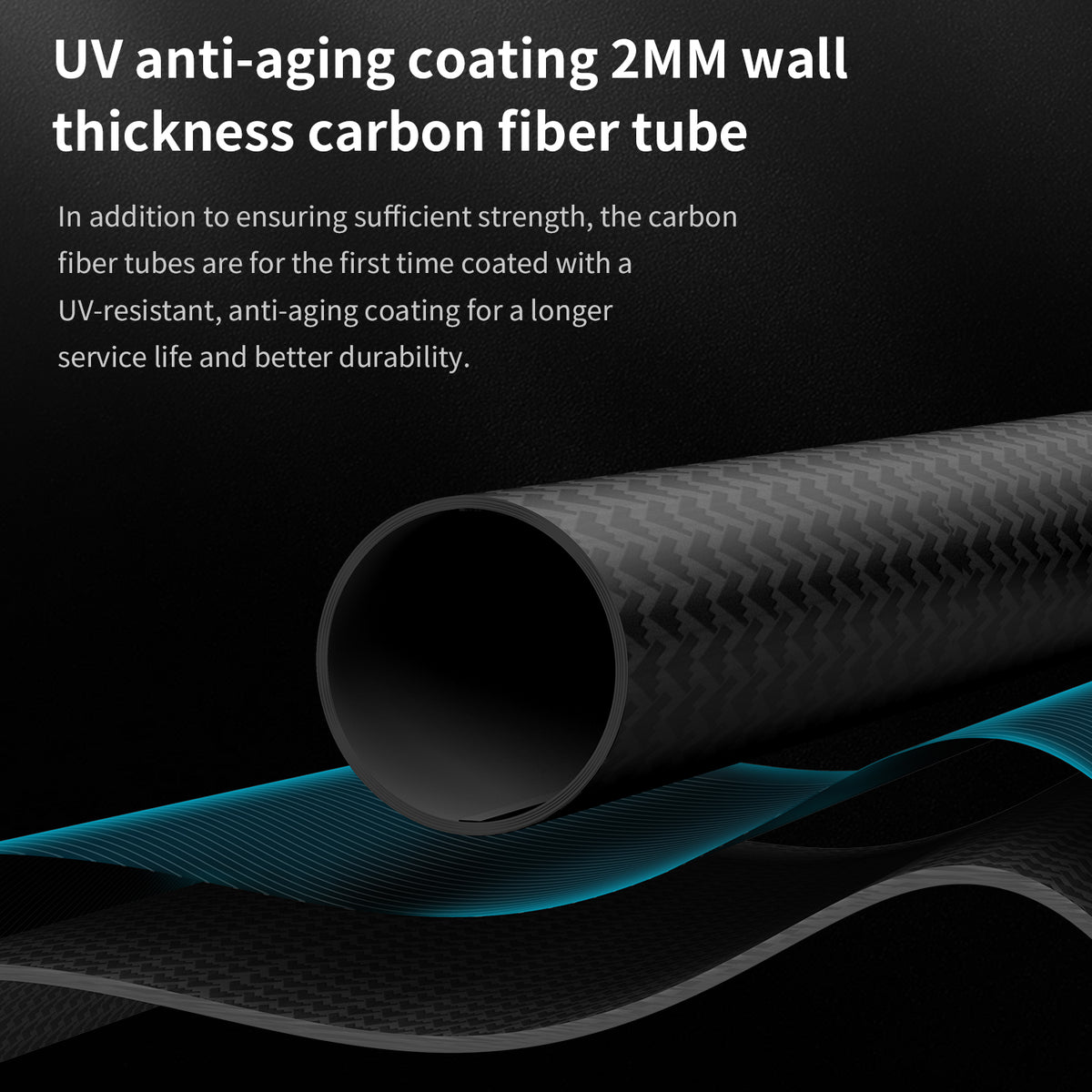

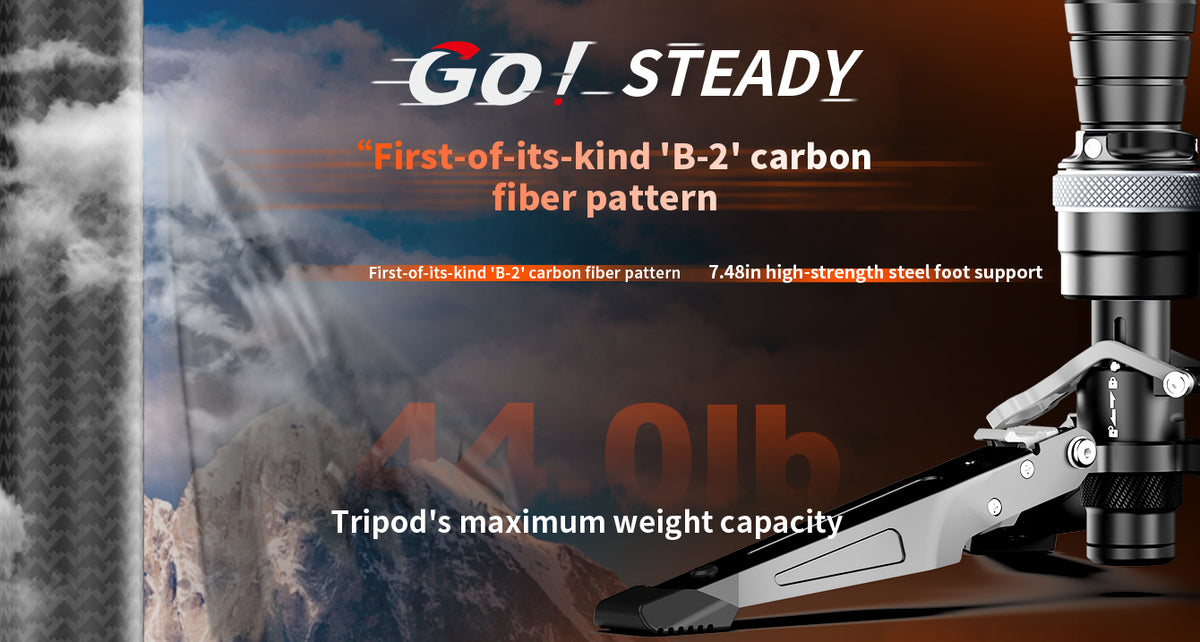

Durable B-2 Carbon Fiber Build with UV Protection
Constructed from robust B-2 carbon fiber with 0.08 in / 2 mm thick tubing and a UV-resistant anti-aging coating, the M1V5 is designed for long-term durability in demanding shooting environments.

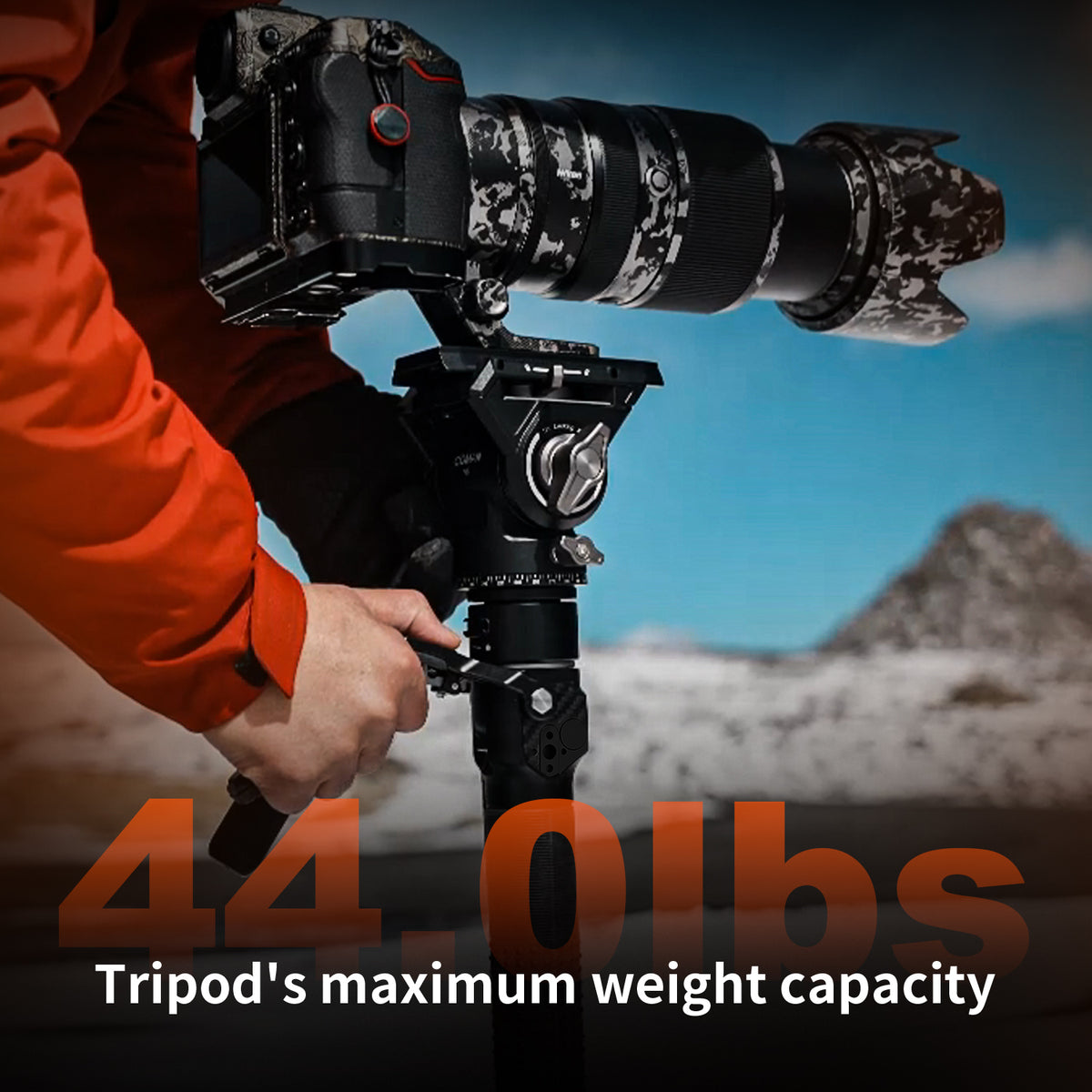

22 lb Load Capacity
Supports camera setups up to 22 lbs / 10 kg, providing stable support for DSLR and mirrorless cameras equipped with medium to long lenses.
Steel Support Feet with Enhanced Stability
High-strength steel support feet measuring 7.48 in / 190 mm provide reliable ground contact and improved stability on rocky terrain, outdoor locations, and fast-moving shooting environments.

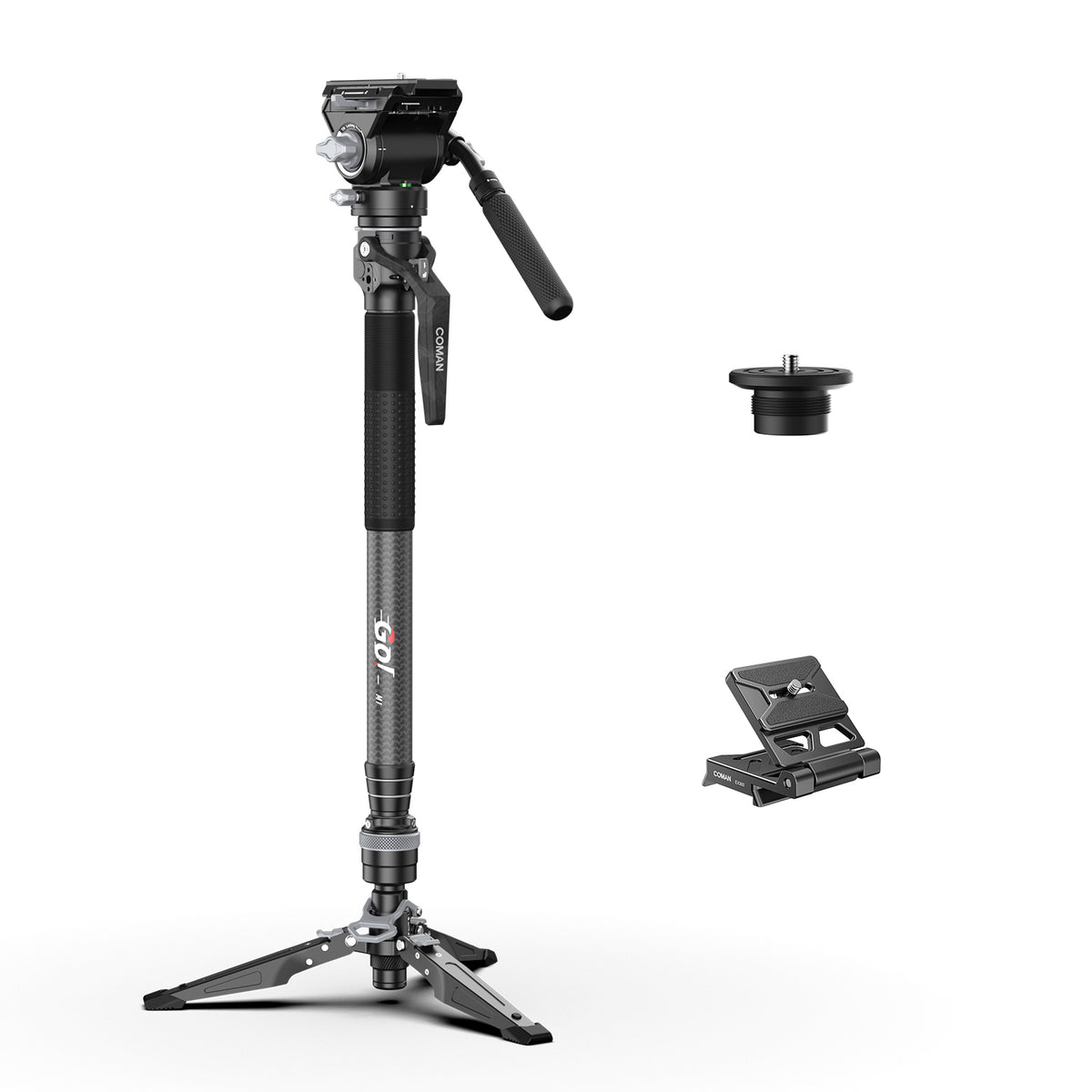

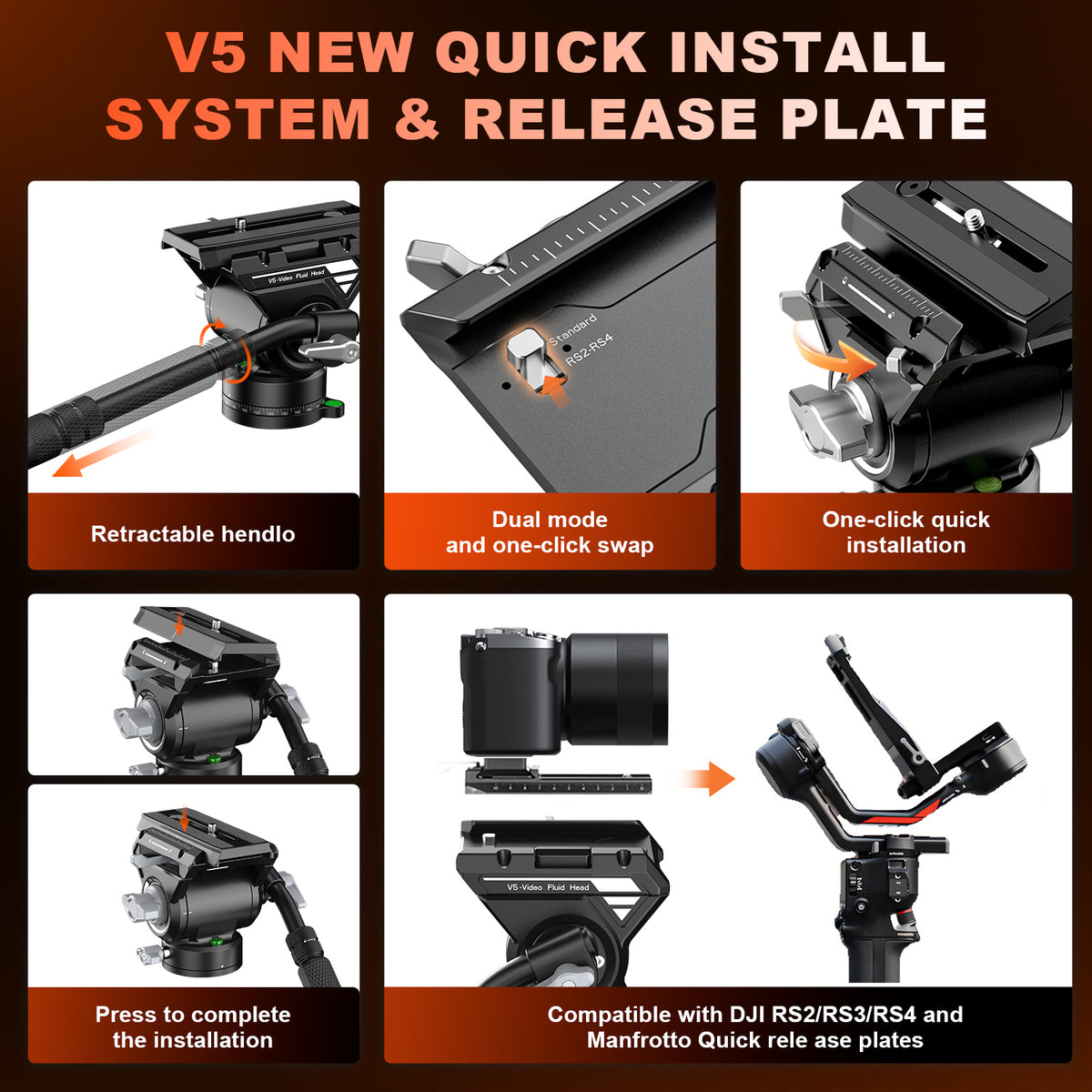

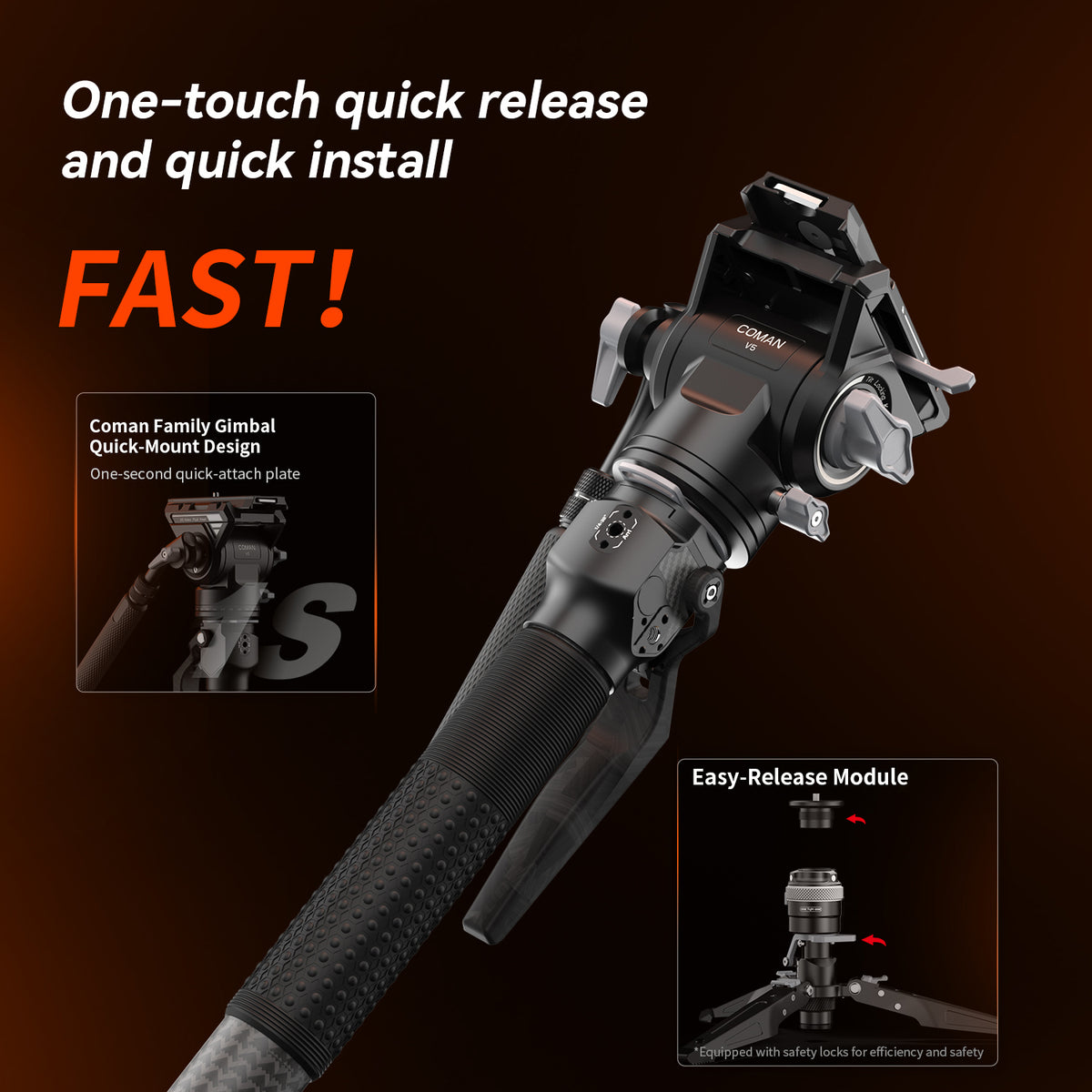

Quick-Release Plates Standard for DJI & Manfrotto
The V5 fluid head supports fast equipment changes and is compatible with DJI RS2, RS3, RS4 and Manfrotto 501-type quick-release plates for efficient professional workflows.

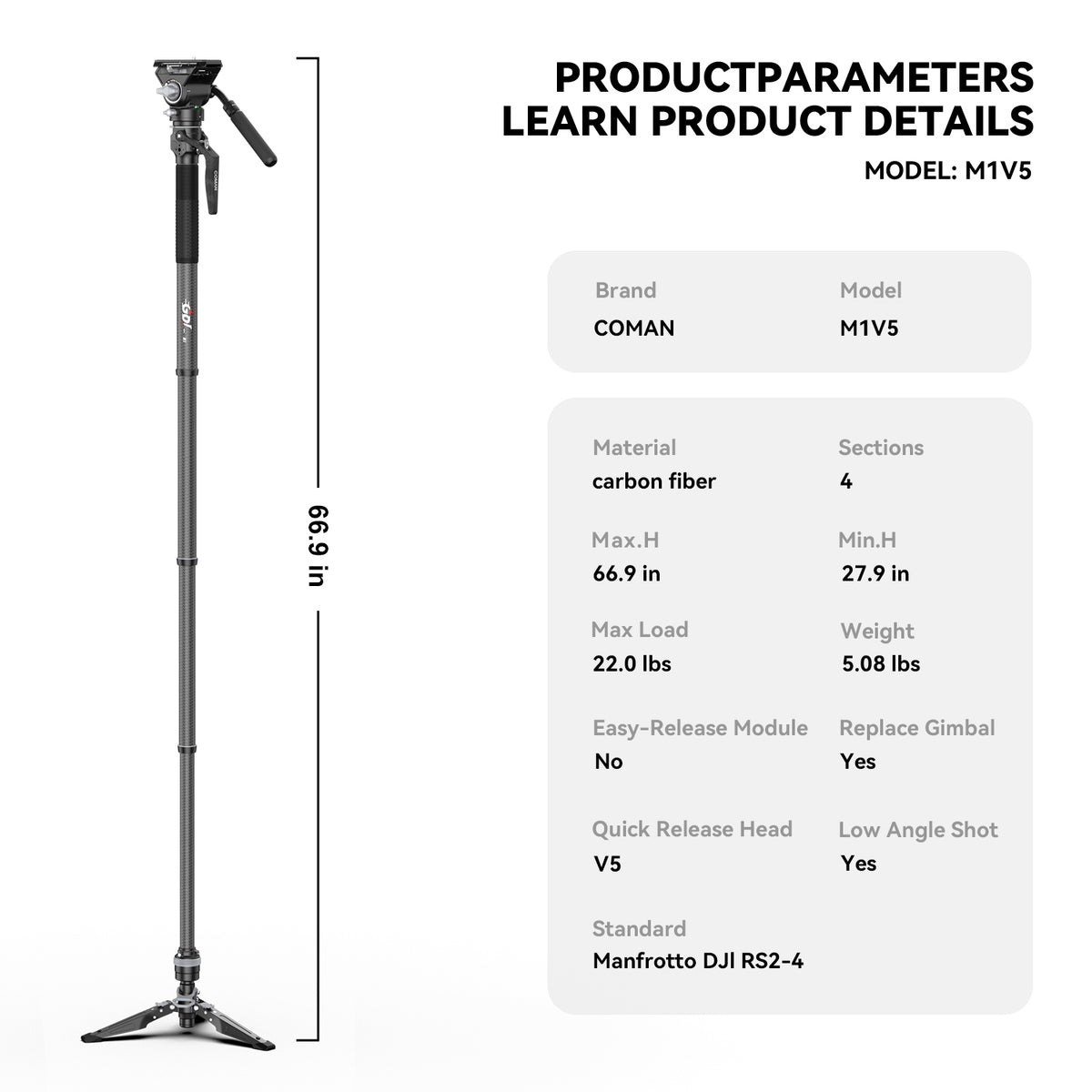

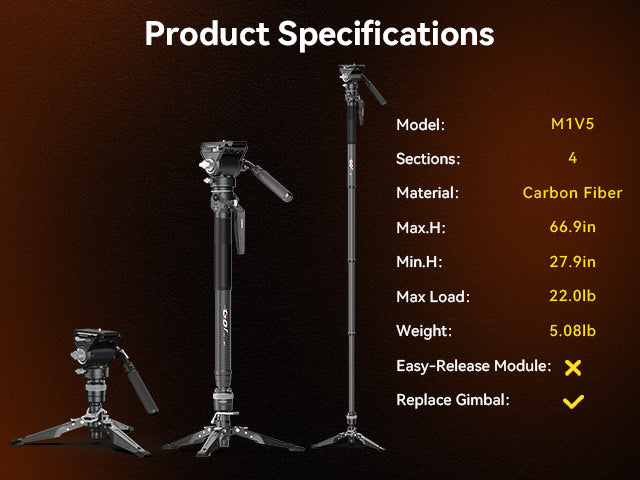

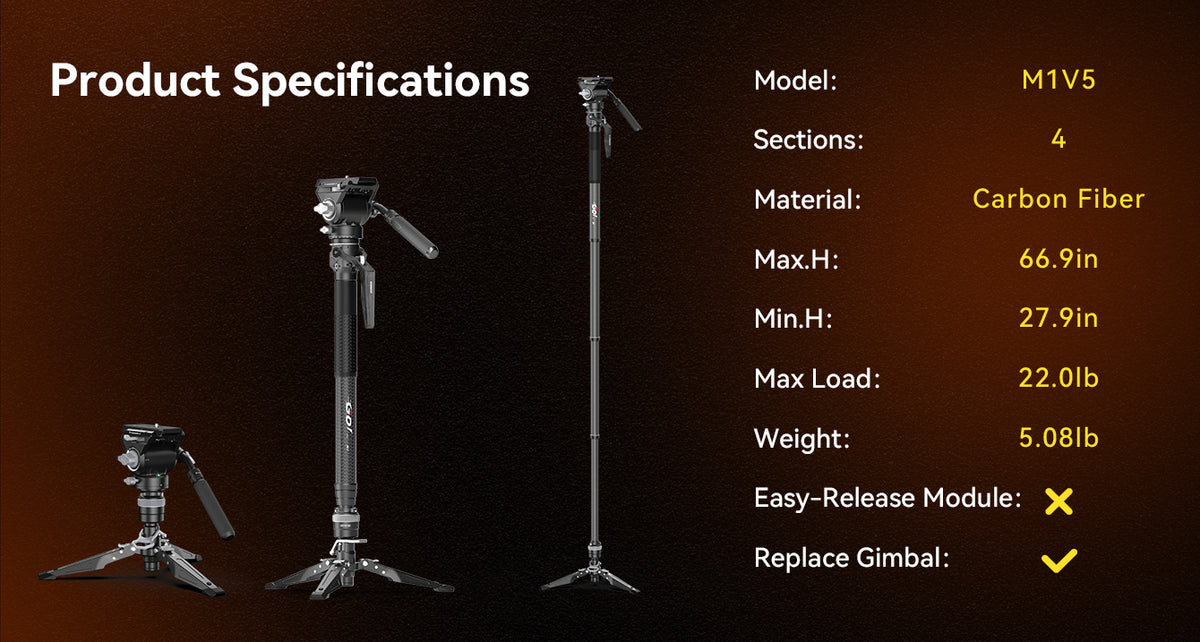

Technical Parameters
| Product Model | M1 V5 Monopod |
|---|---|
| Material | B-2 Carbon Fiber |
| Tube Diameter | 1.42 / 1.28 / 1.14 / 1.00 in |
| Maximum Height | 66.93 in |
| Folded Height | 27.95 in |
| Support Leg Weight | 1.32 lbs |
| Support Leg Length | 7.48 in |
| Maximum Load Capacity | 22.05 lbs |
| Product Weight | 5.08 lbs |

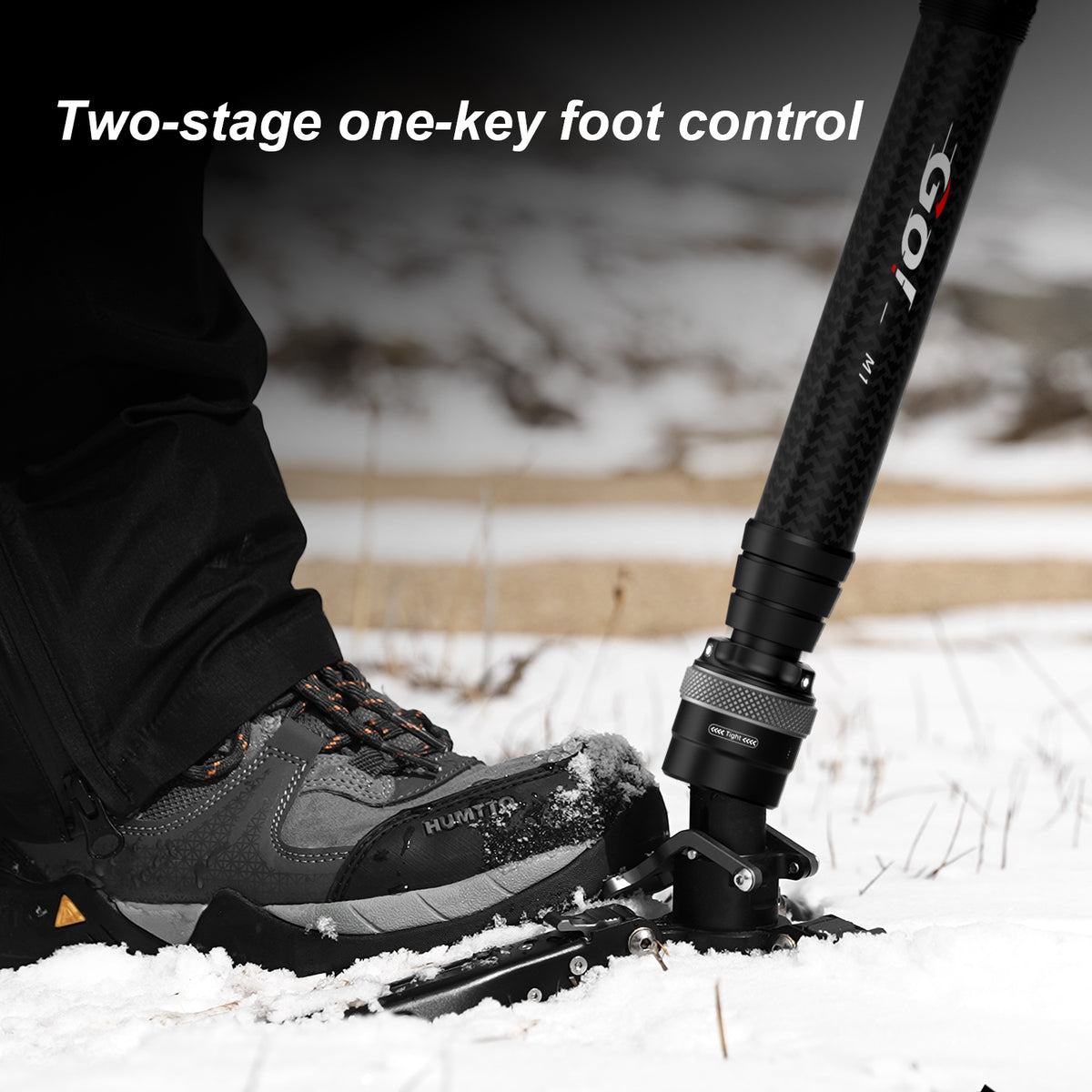

| Foot Pedal Lock | Yes |
| Foot Pedal Damping Adjustment | Yes |
| Module Quick Release / Detachable | Detachable |
| Tripod Head Quick Release | Yes |

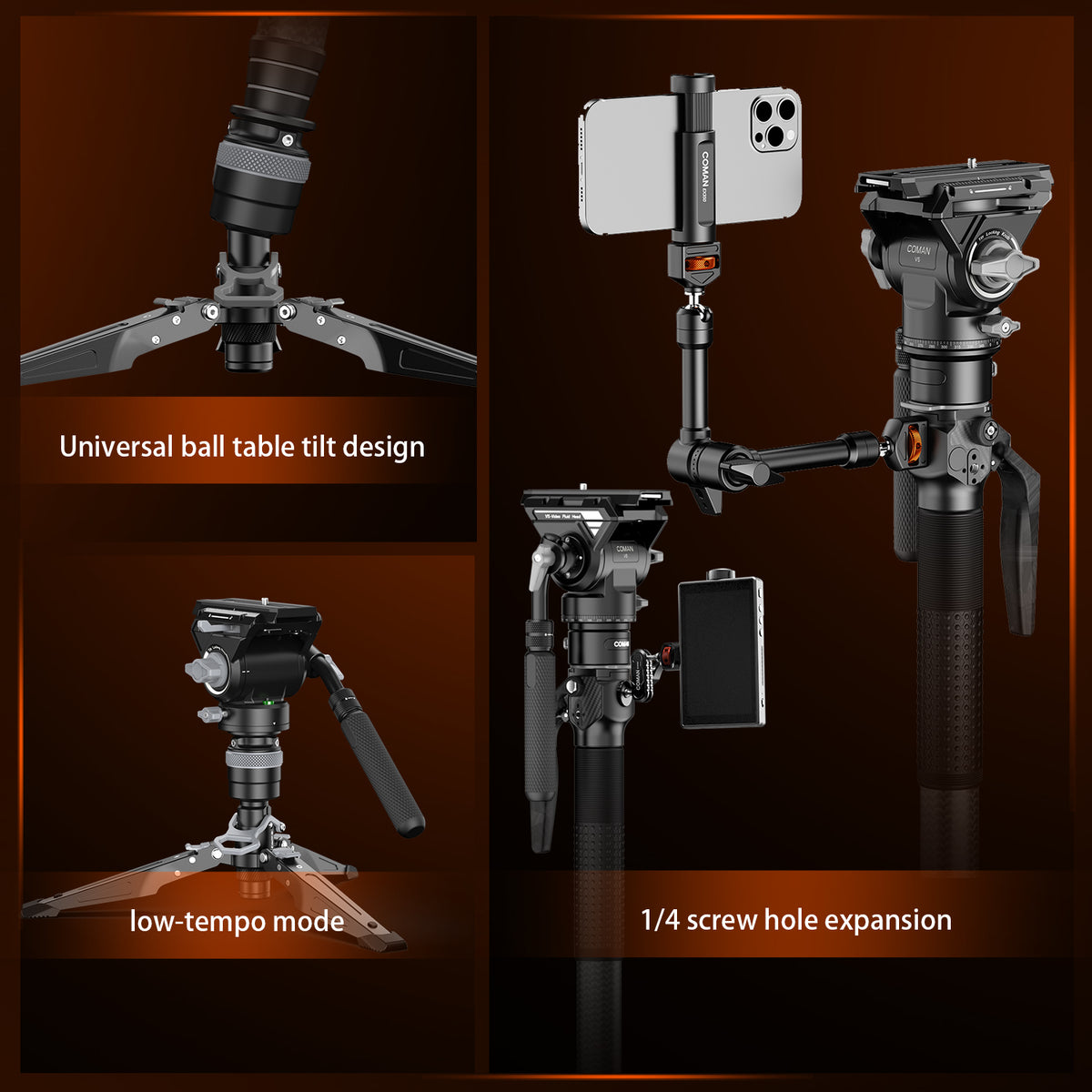

| 1/4" Screw | Yes |
