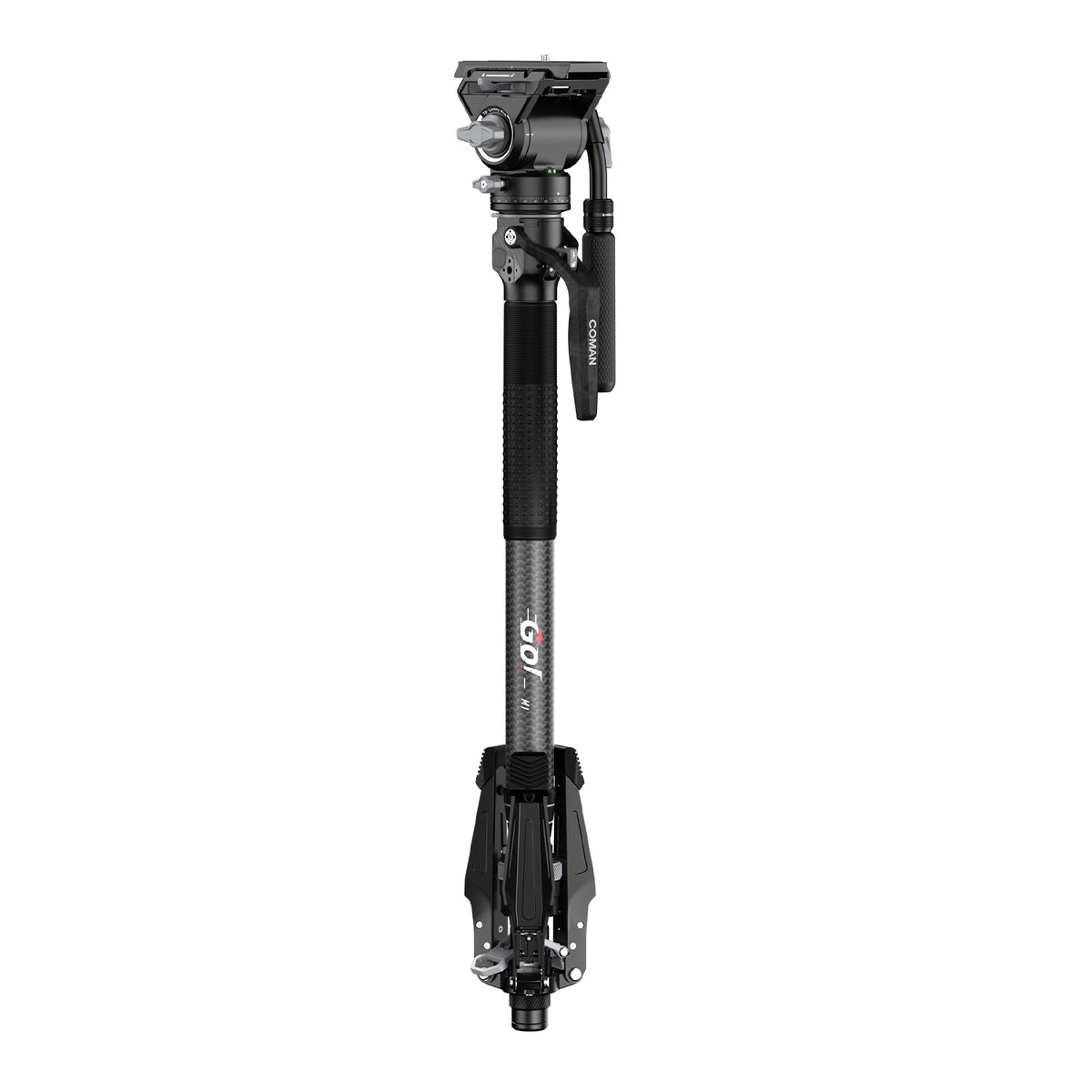

M1&M1V5

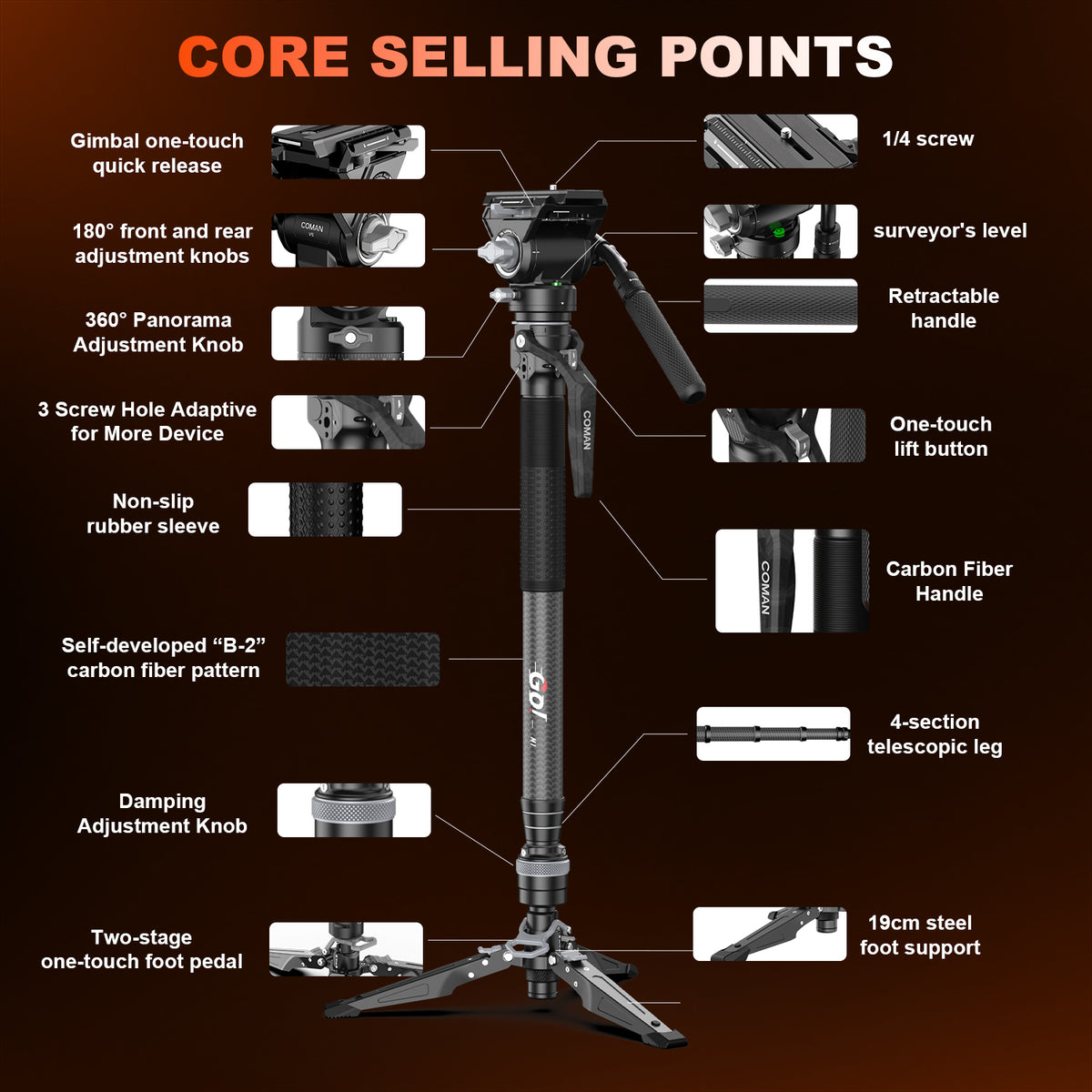

Key Features

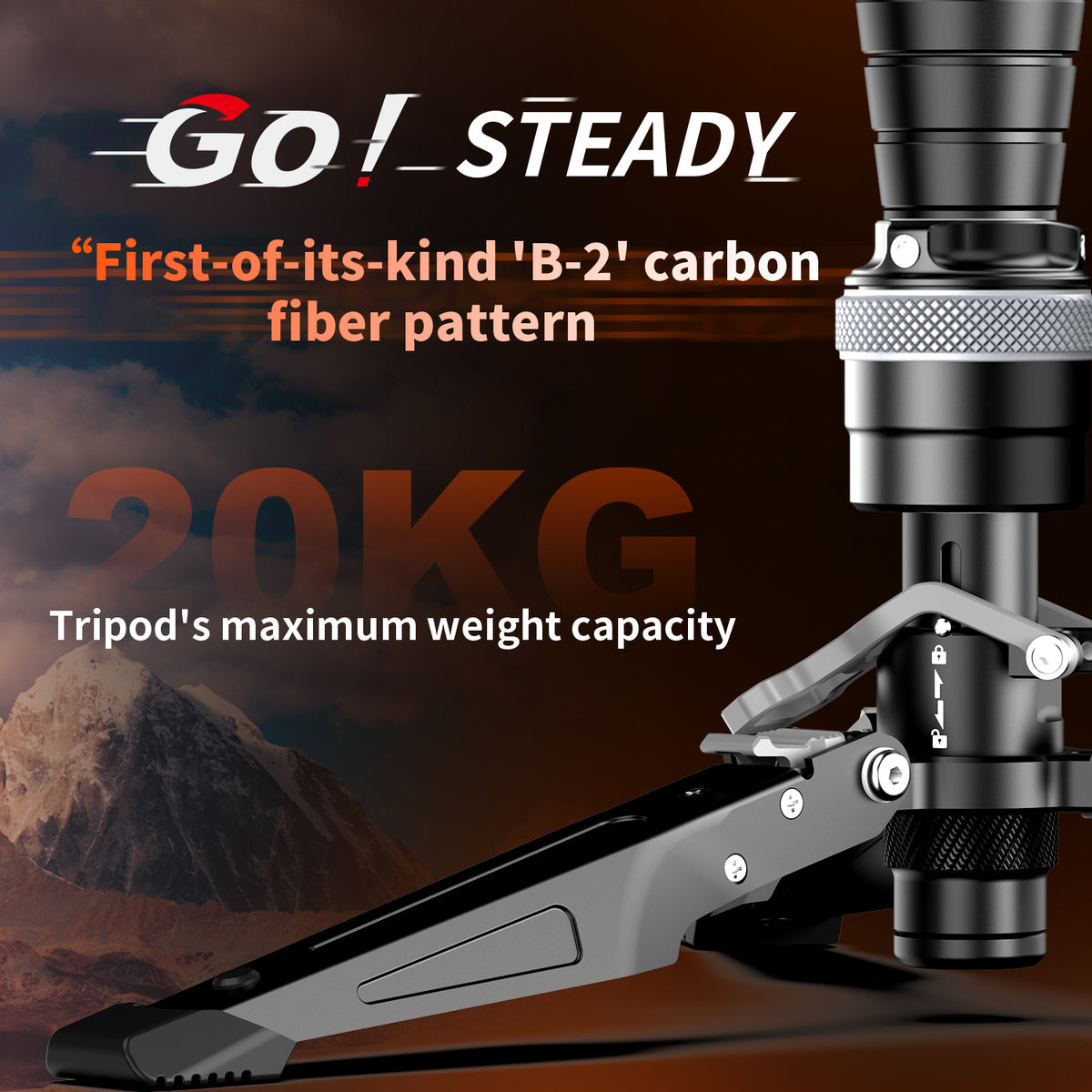

Premium B-2 Carbon Fiber Construction
Crafted from high-grade B-2 carbon fiber tubes with graduated diameters of 1.42 / 1.28 / 1.14 / 1.00 in, the M1 Series combines high strength with a lightweight structure for demanding outdoor shooting and extended handheld use.

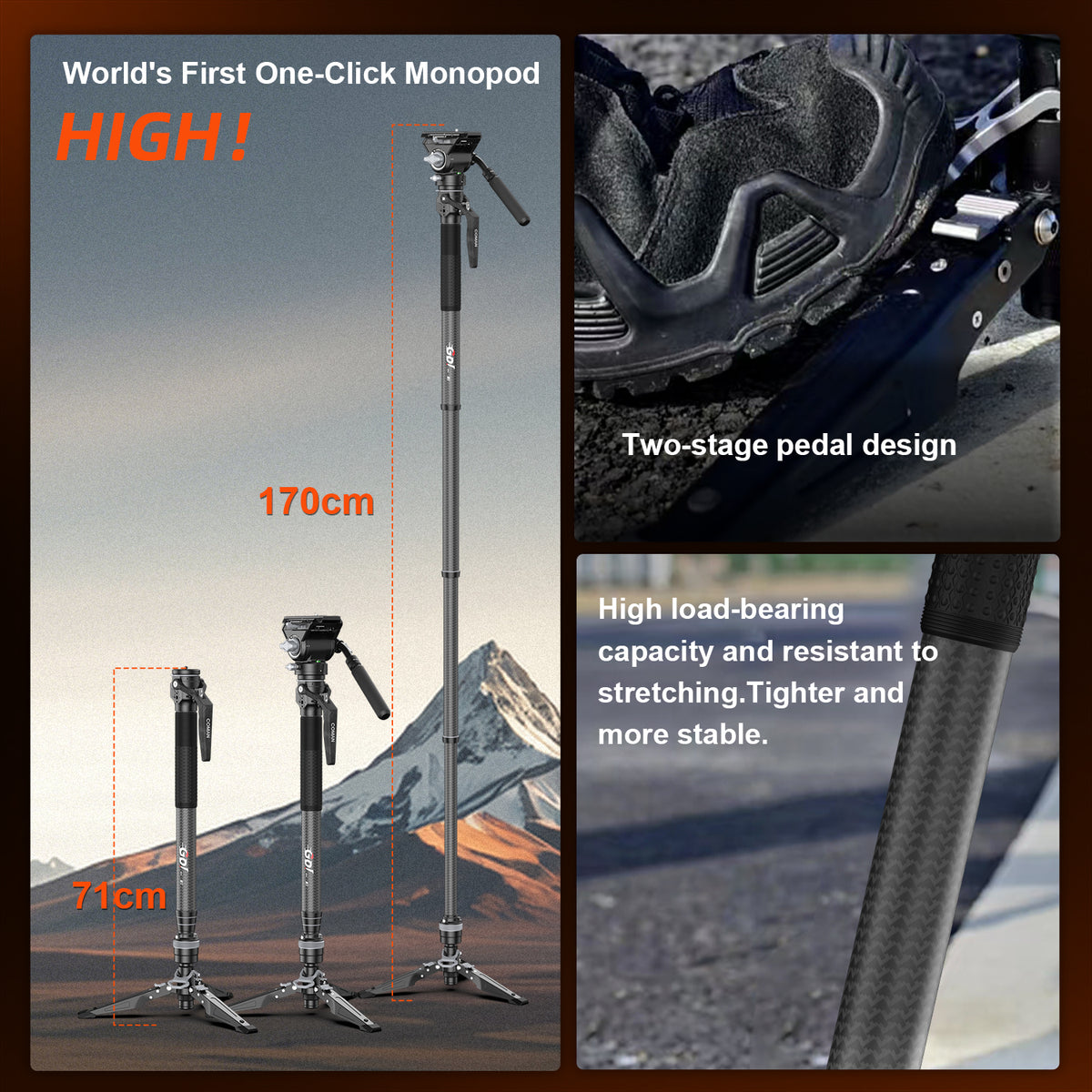

Versatile Height Range with Compact Portability
The M1 extends up to 62.8 in and folds down to 23.82 in, while the M1V5 extends up to 66.93 in and folds down to 27.95 in. Both configurations provide flexible working height while remaining practical for transportation and on-location shooting.
Variant-Specific Load Support
The M1 configuration supports up to 44.09 lbs, while the M1V5 supports up to 22.05 lbs. This allows users to select the configuration that best matches their camera, lens, and shooting requirements.
Enhanced Stability with Wide Support Feet
The 7.48 in support legs provide a wide and stable base on uneven or slippery surfaces, helping maintain reliable support during outdoor, travel, and professional shooting.

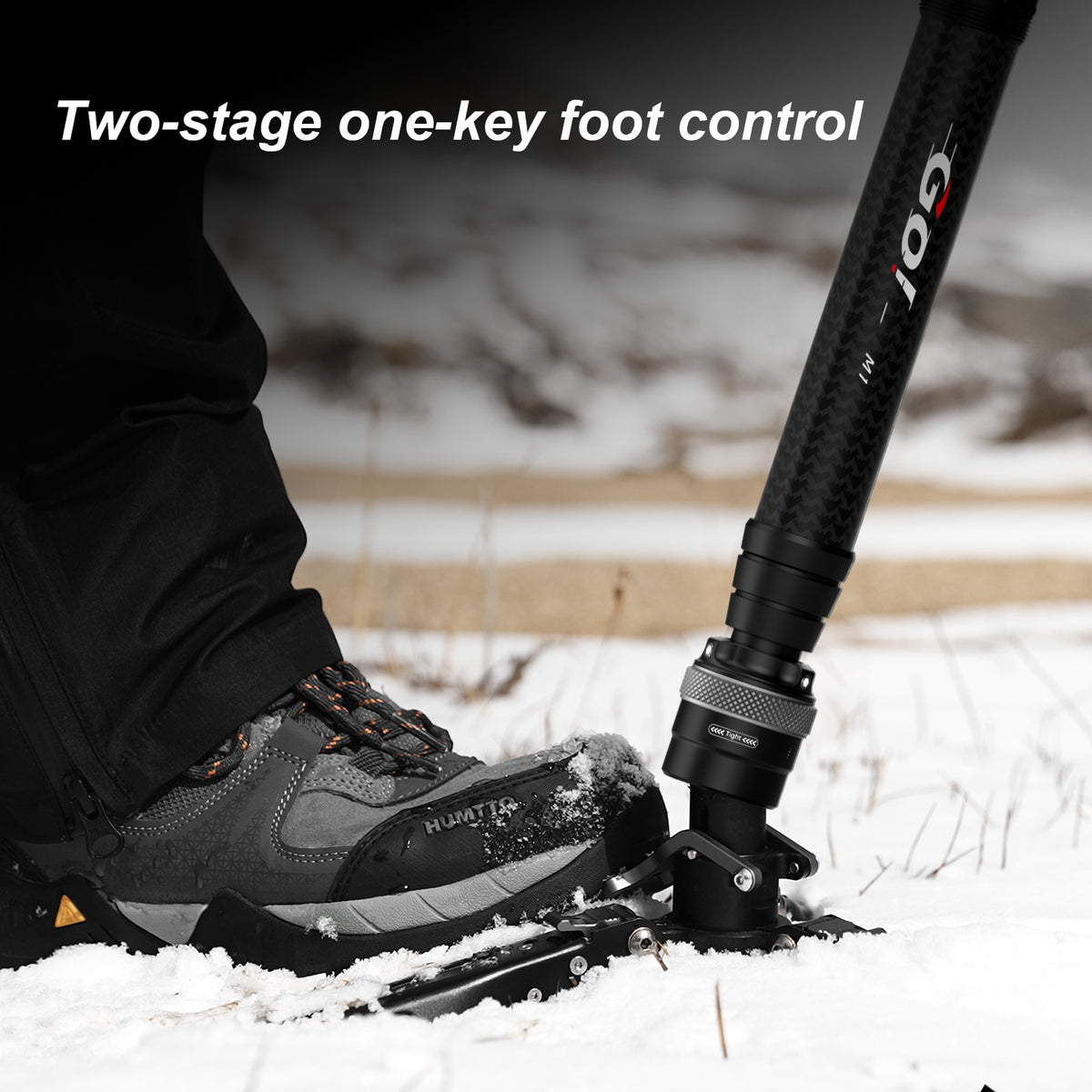

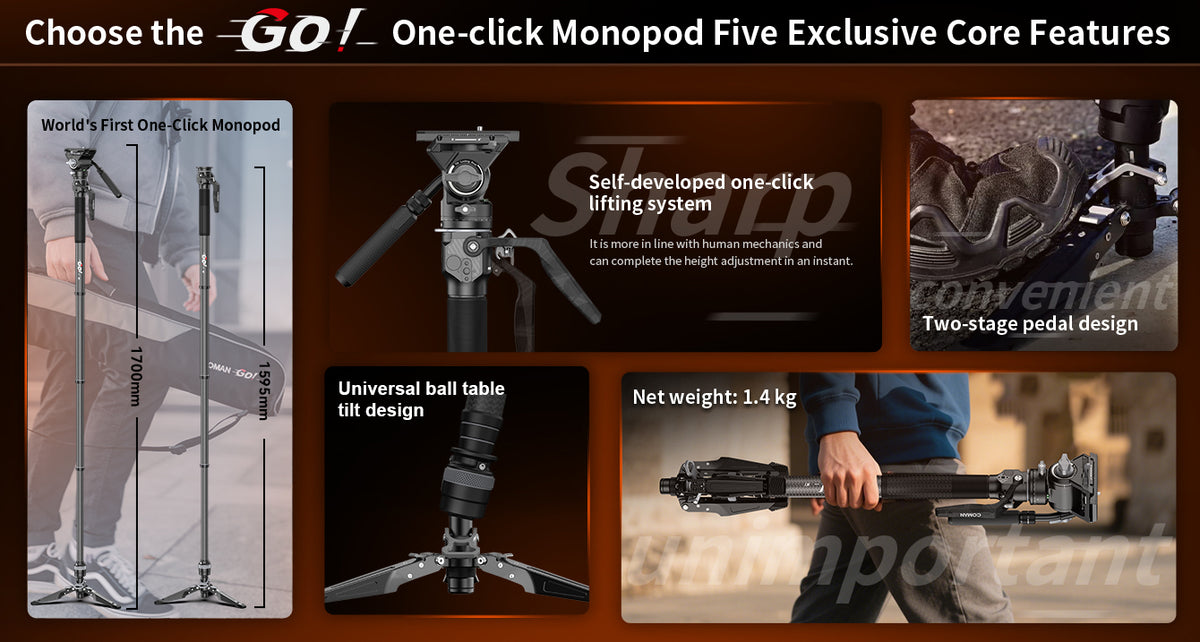

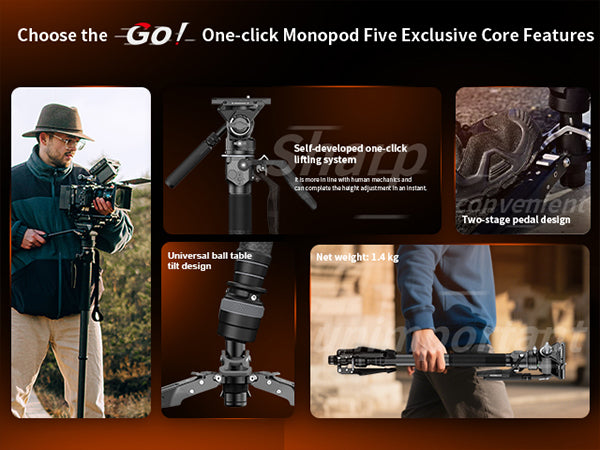

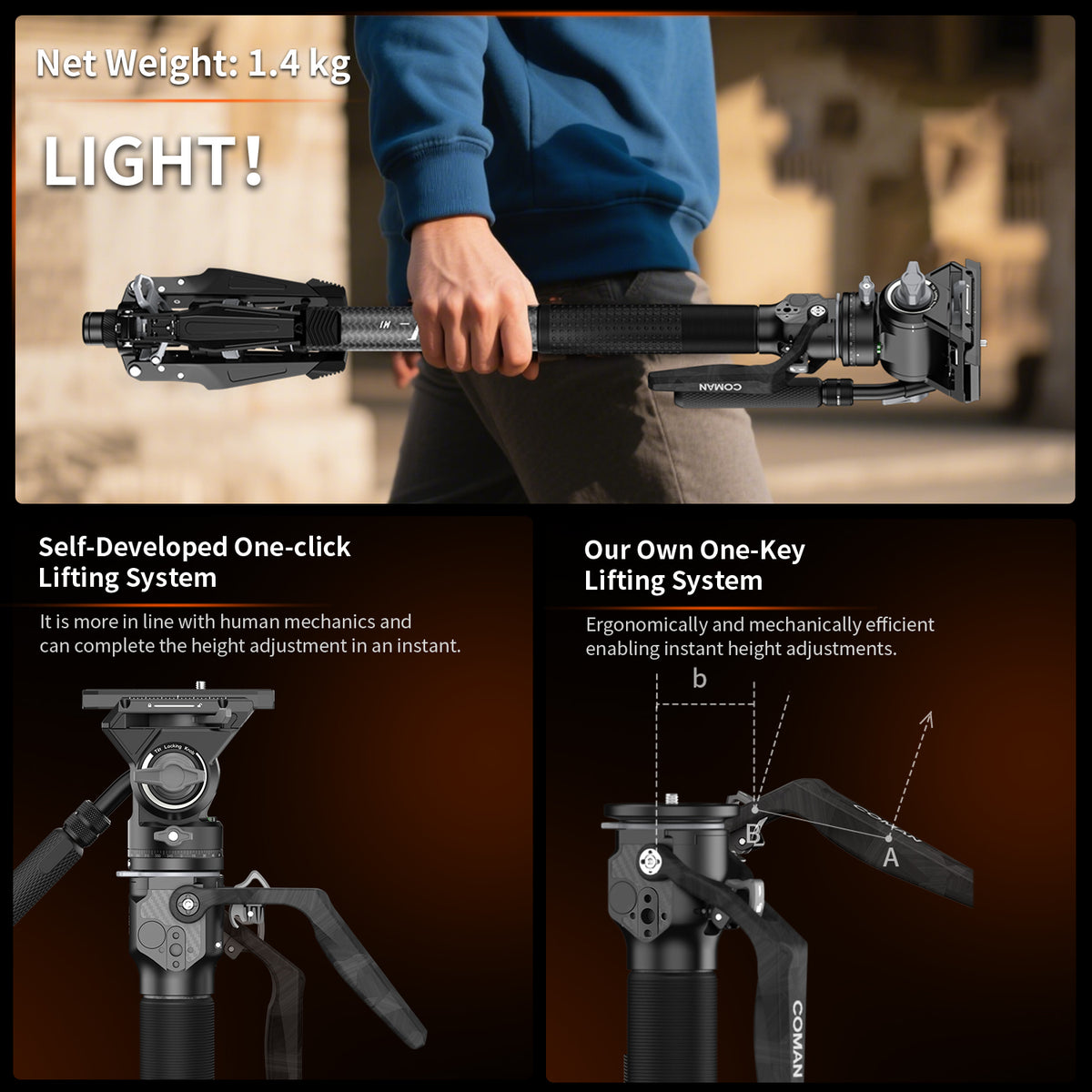

Foot Pedal Lock & Damping Adjustment
Both configurations feature a foot pedal locking system and damping adjustment, allowing more controlled movement and convenient operation during dynamic shooting.

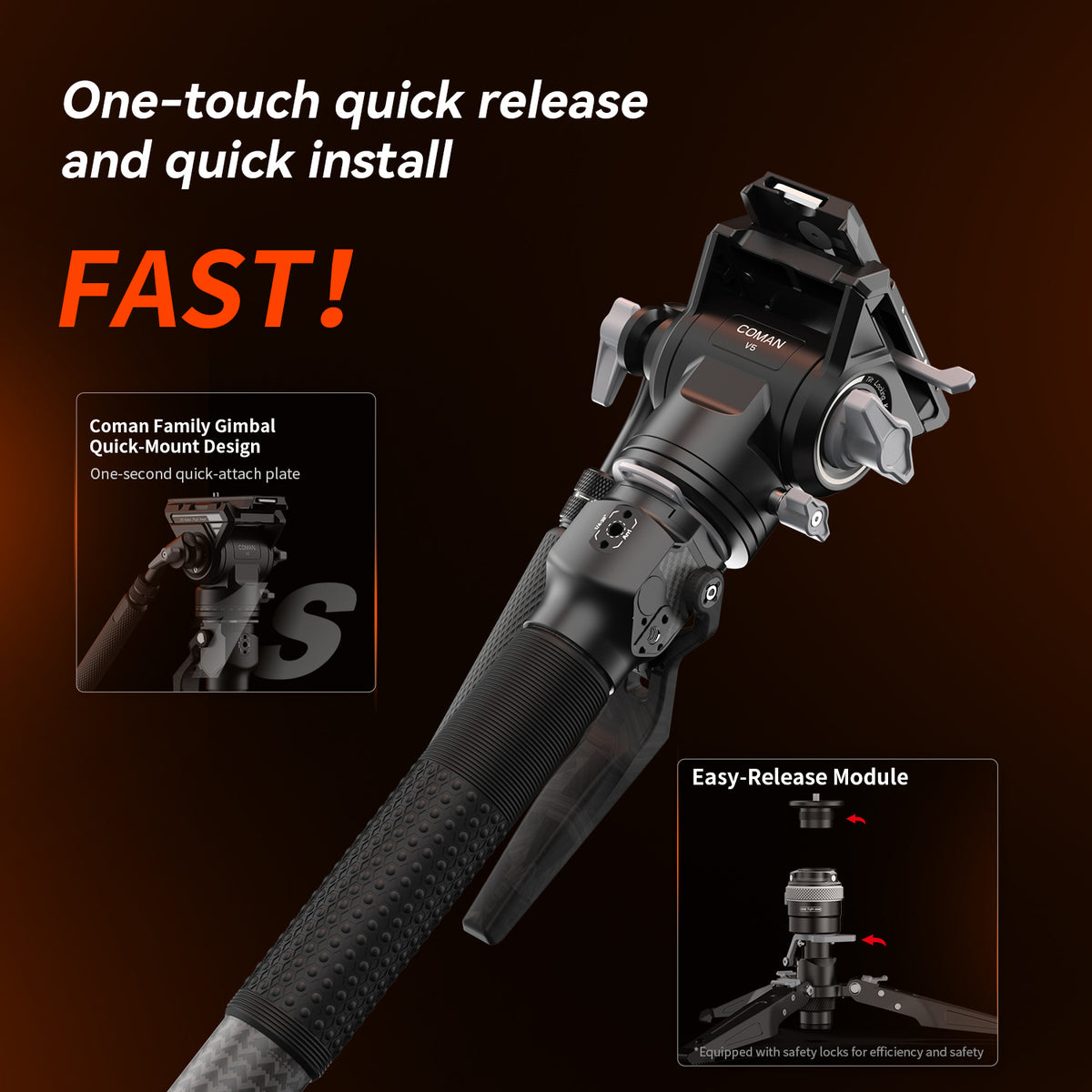

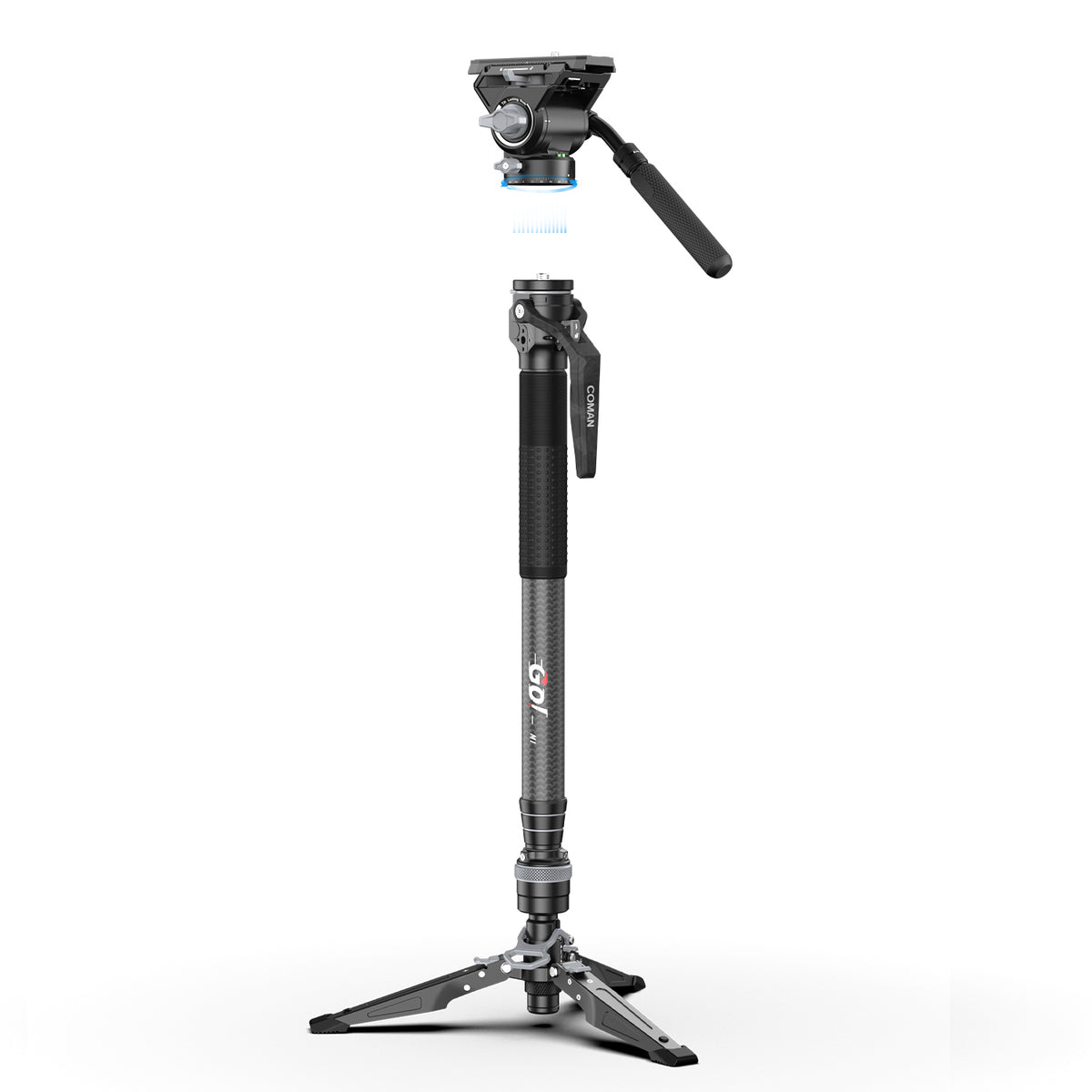

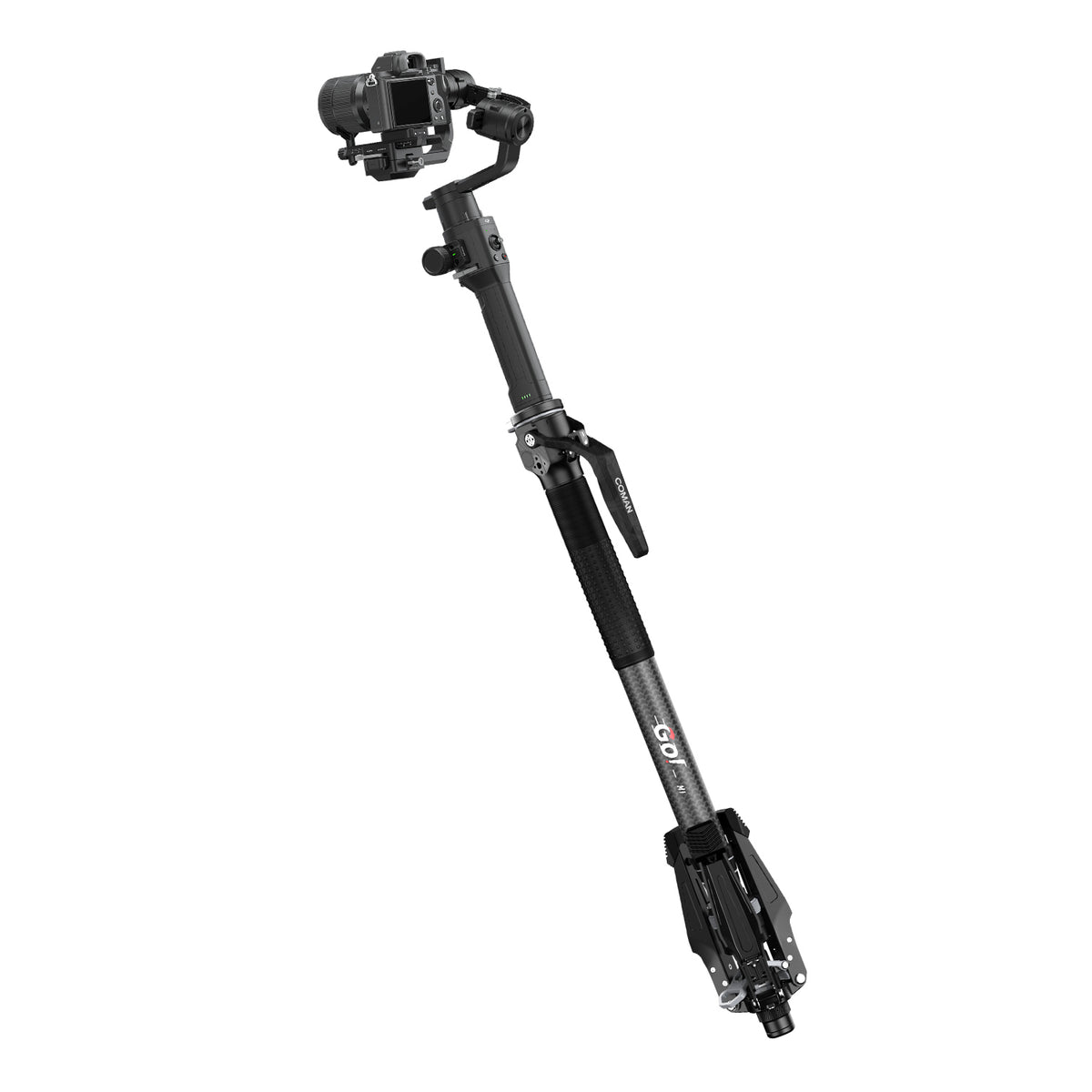

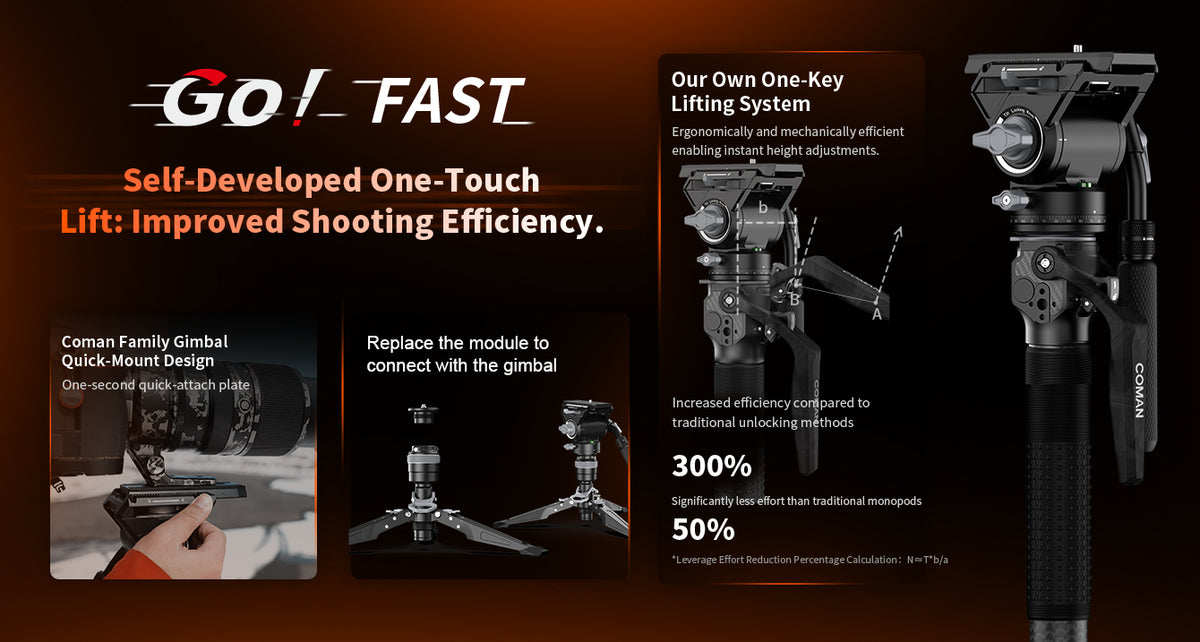

Detachable Quick-Release Module
The detachable module design provides flexible setup options and makes it easier to adapt the monopod to different shooting configurations and support systems.

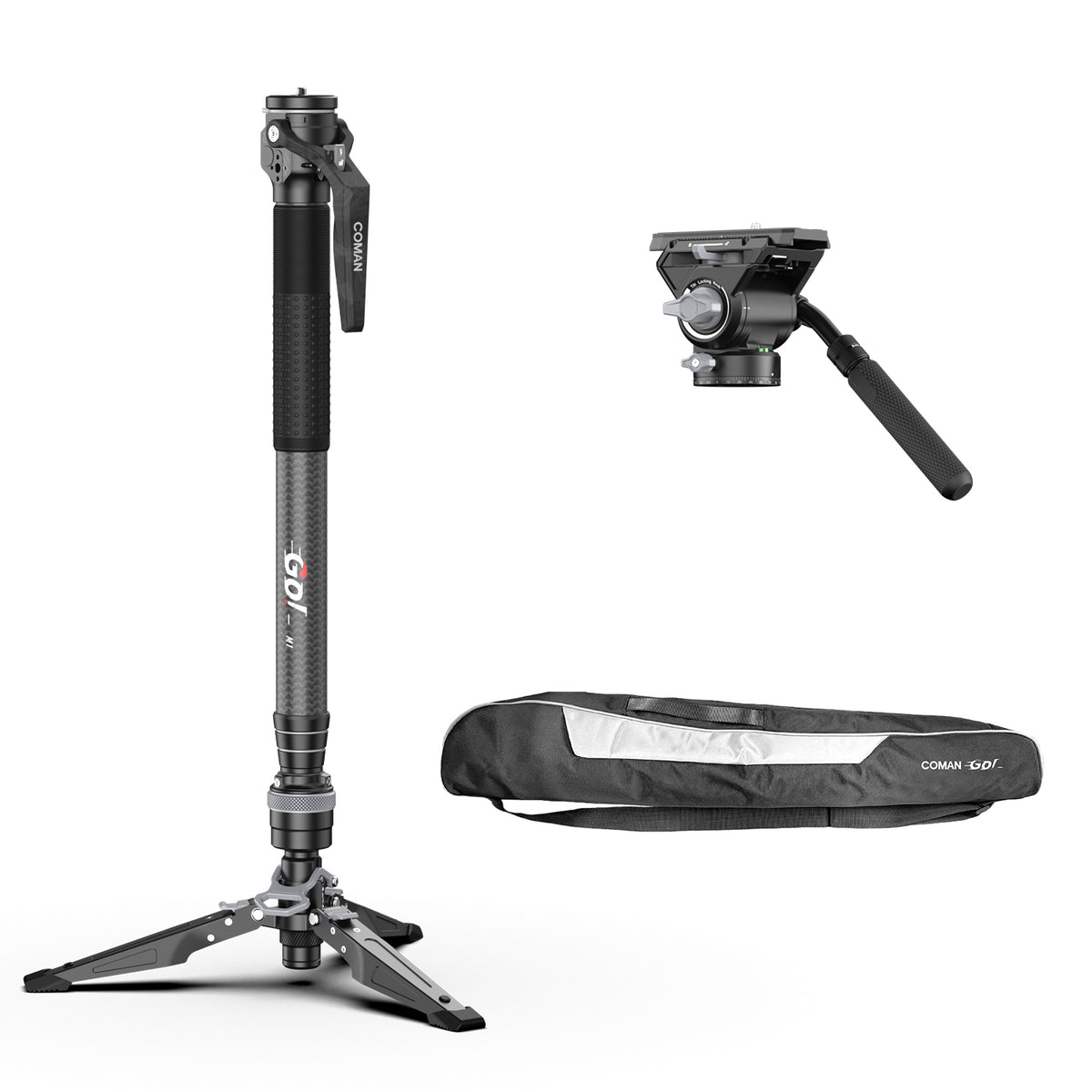

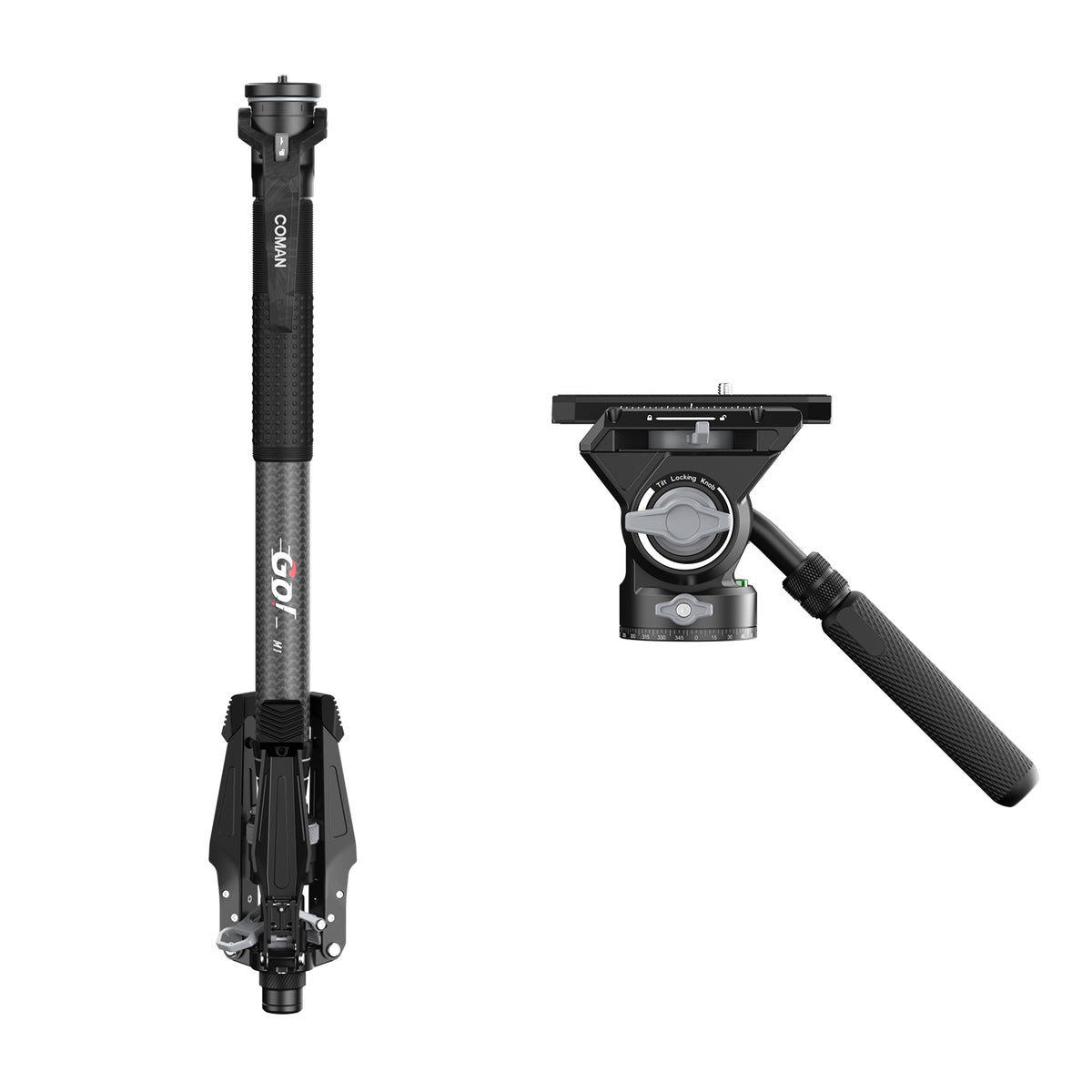

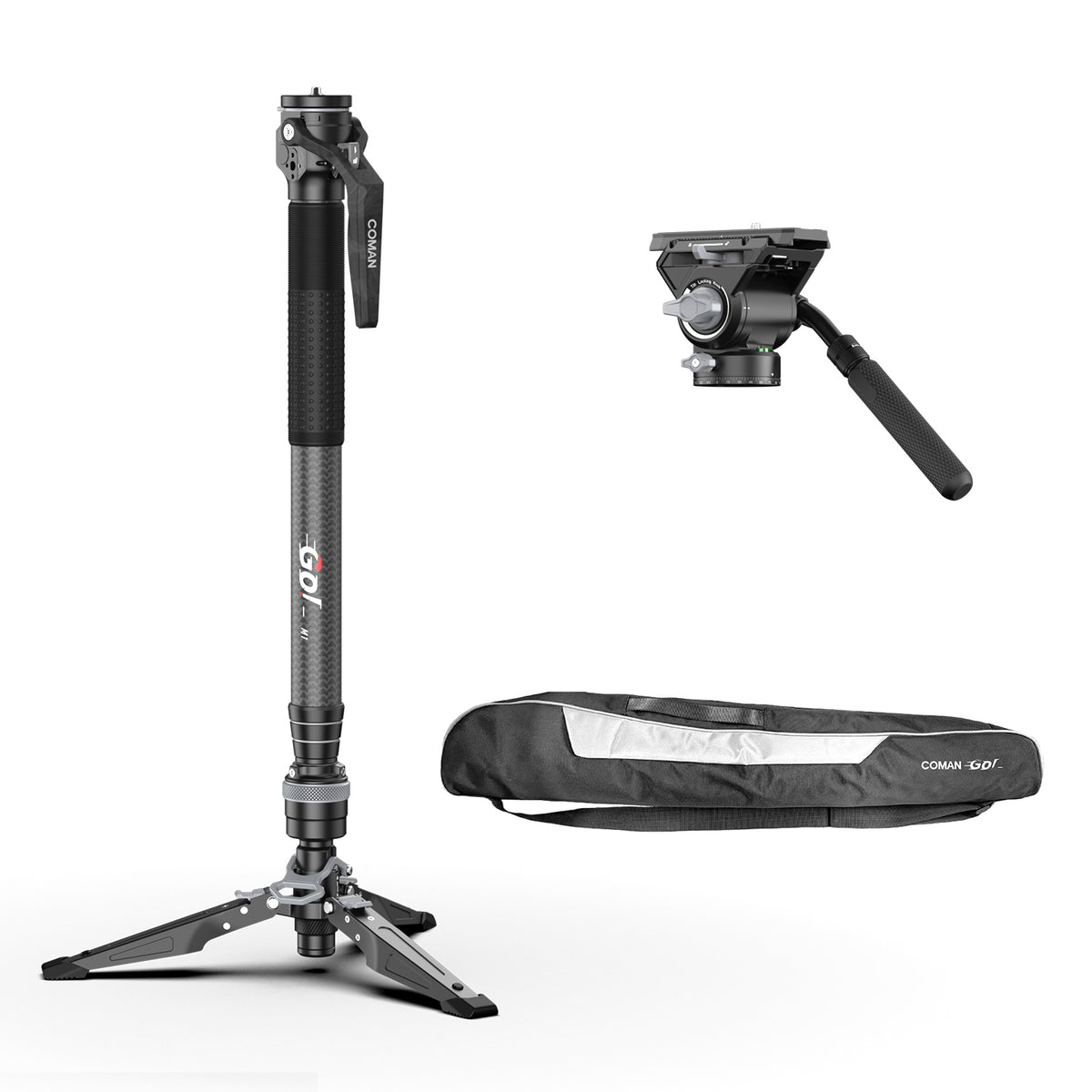

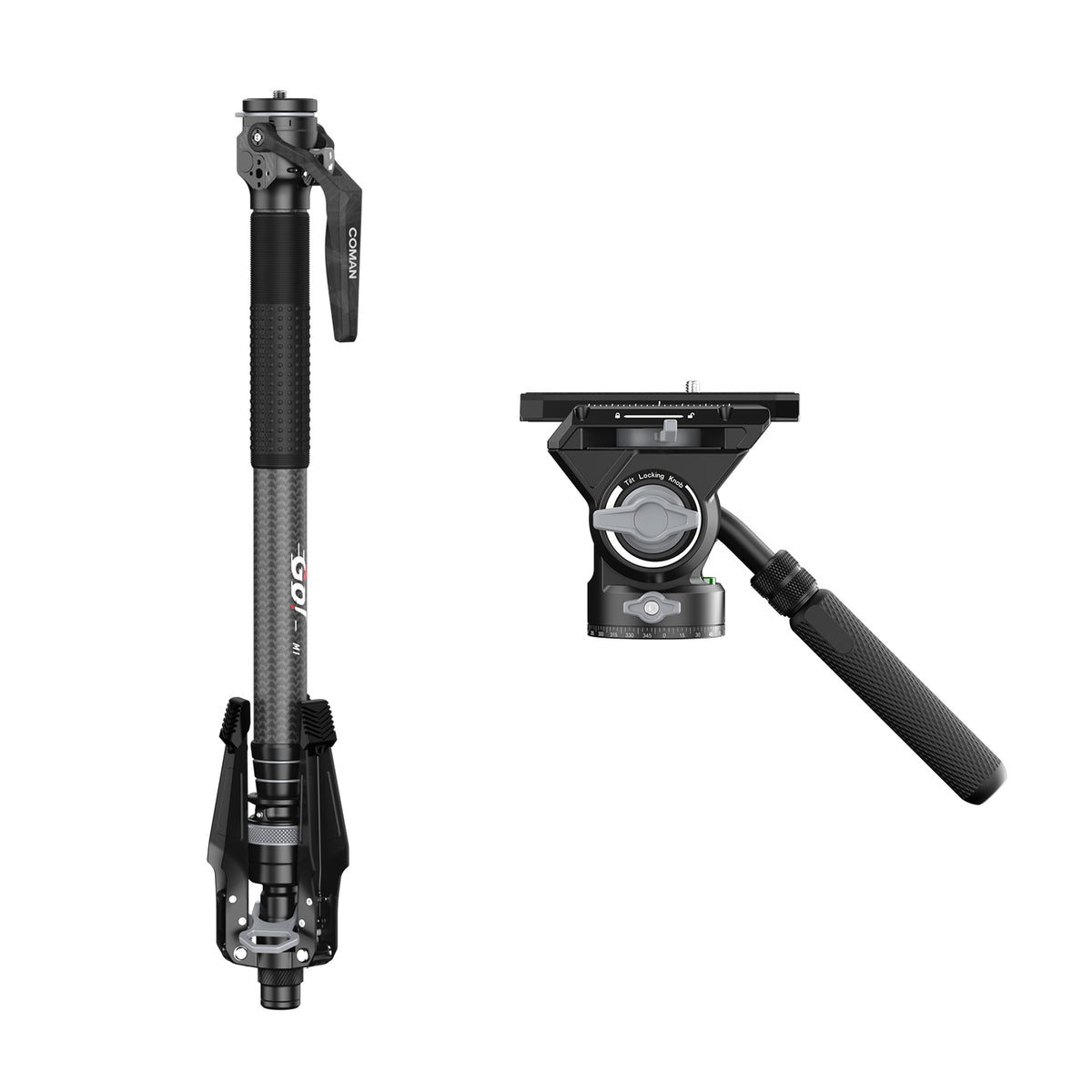

M1 & M1V5 Configuration Options

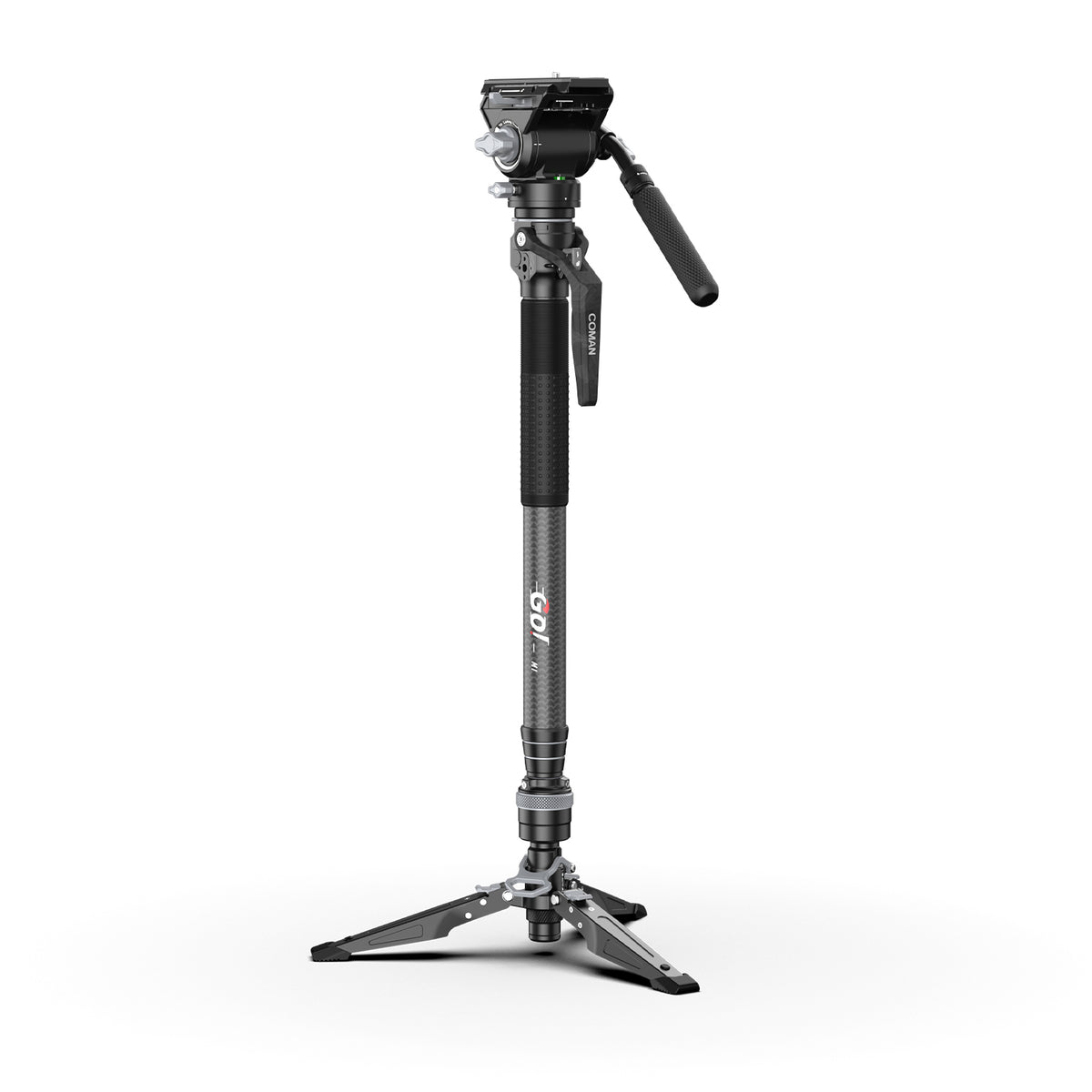

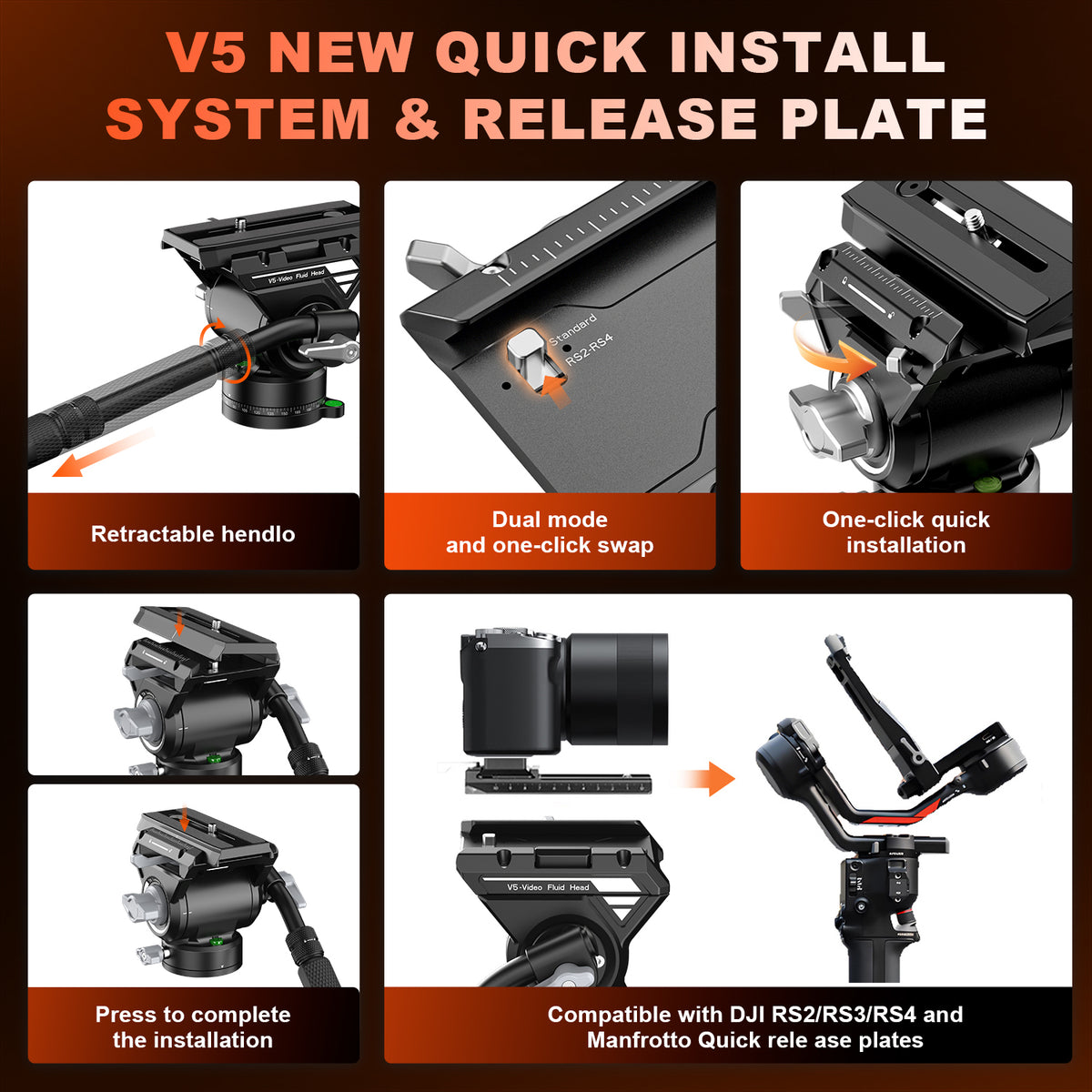

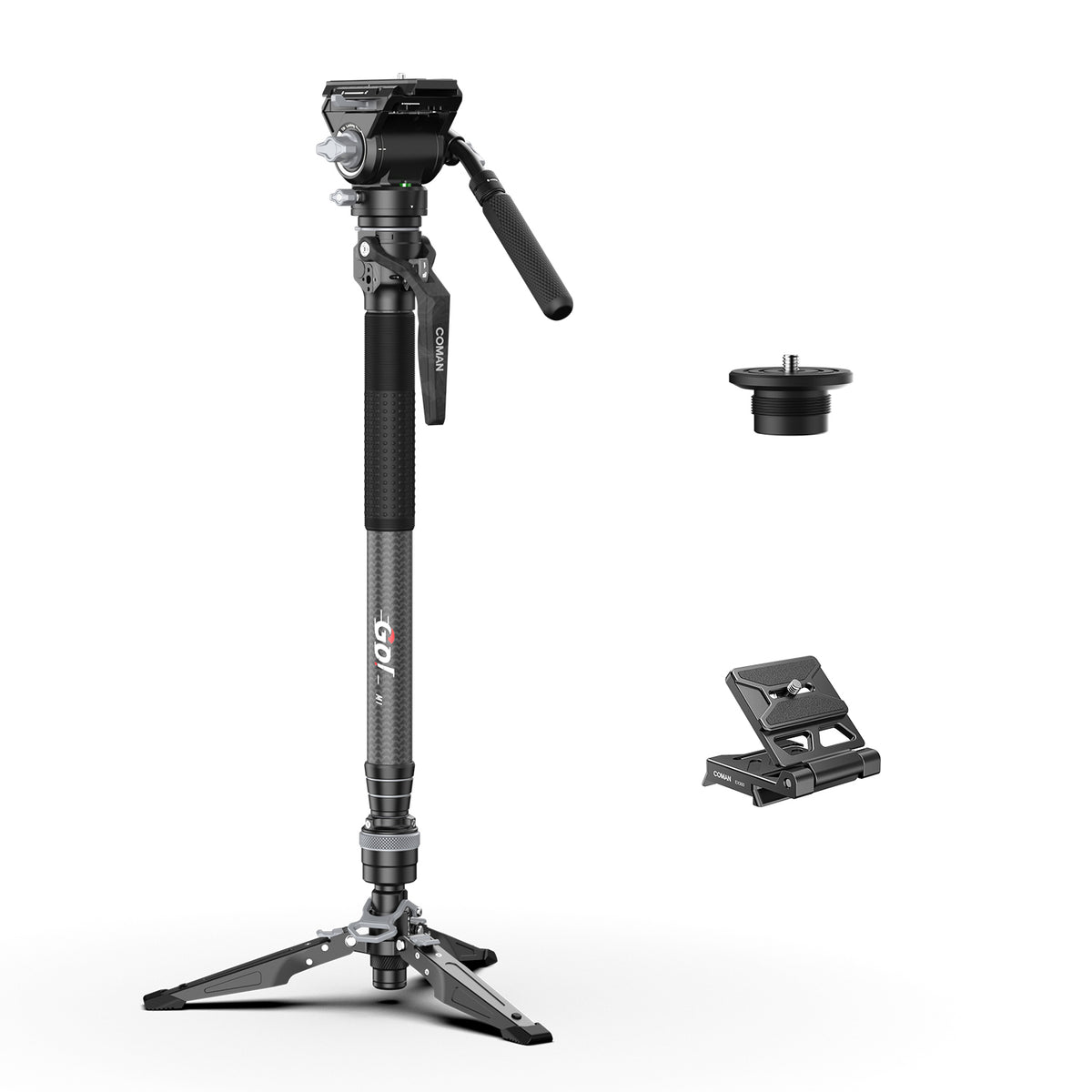

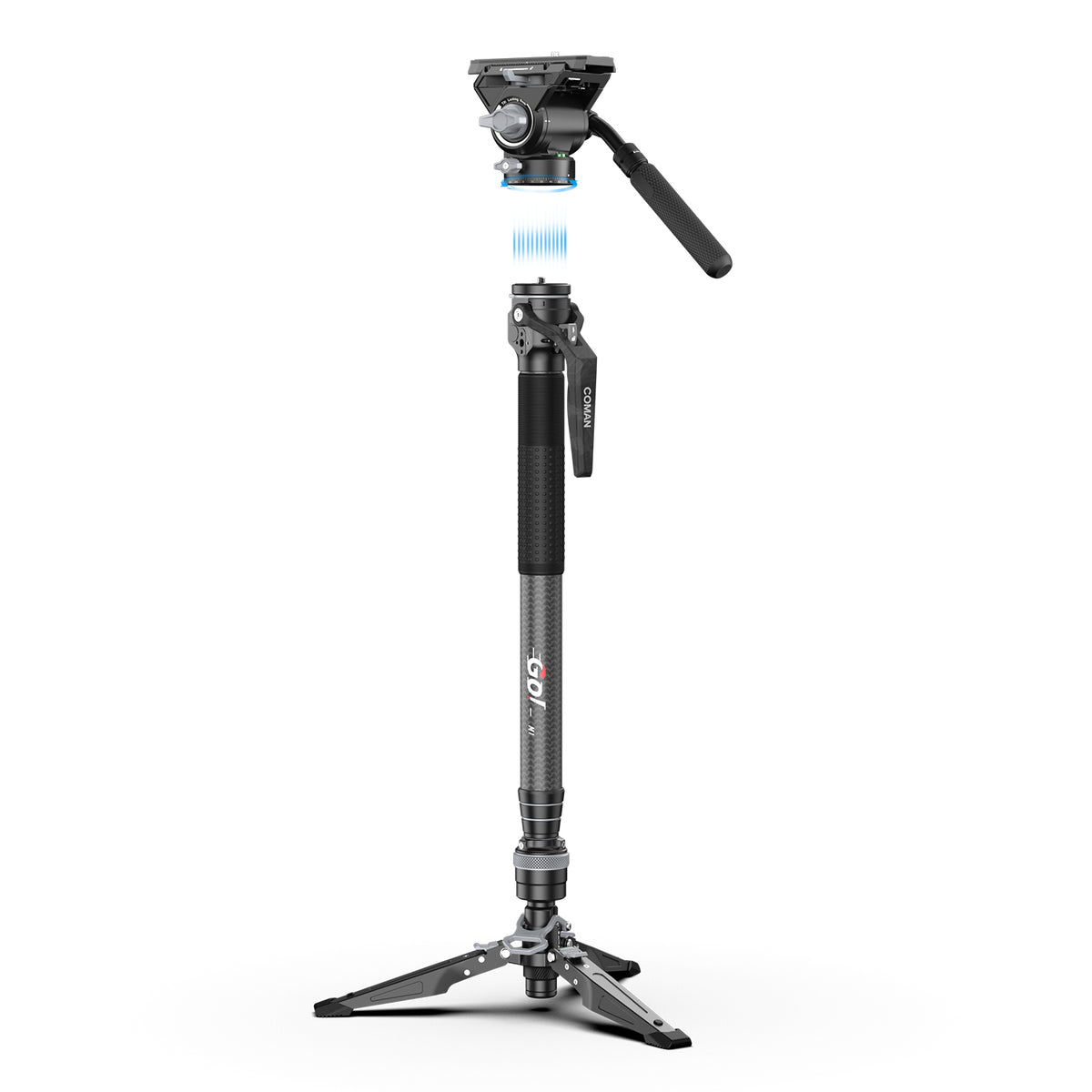

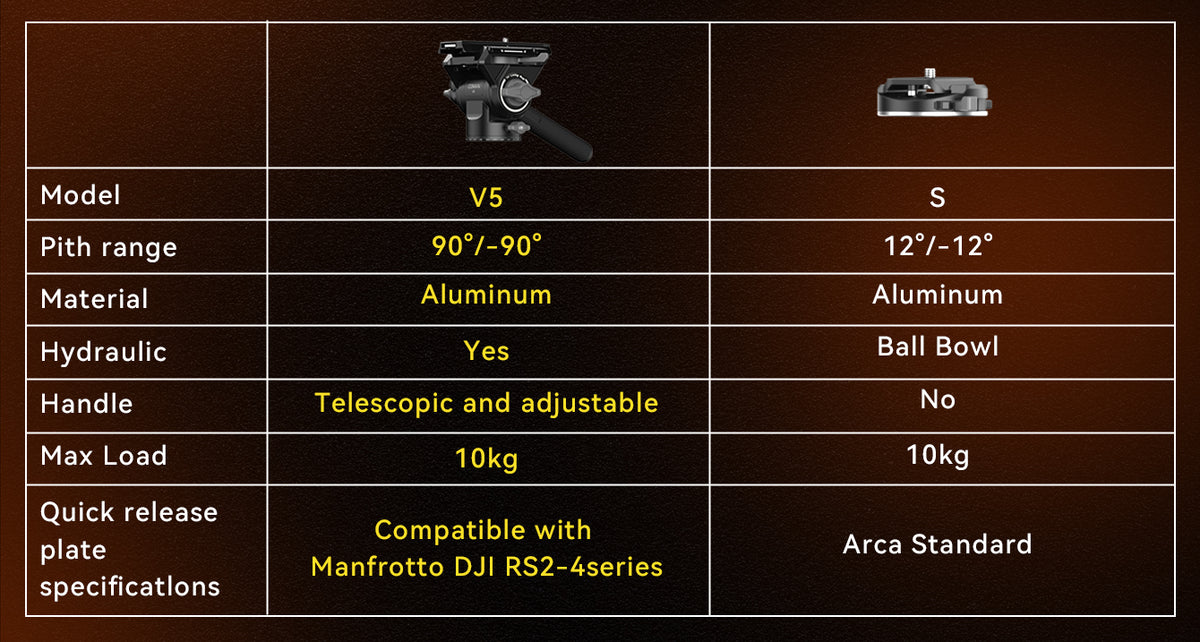

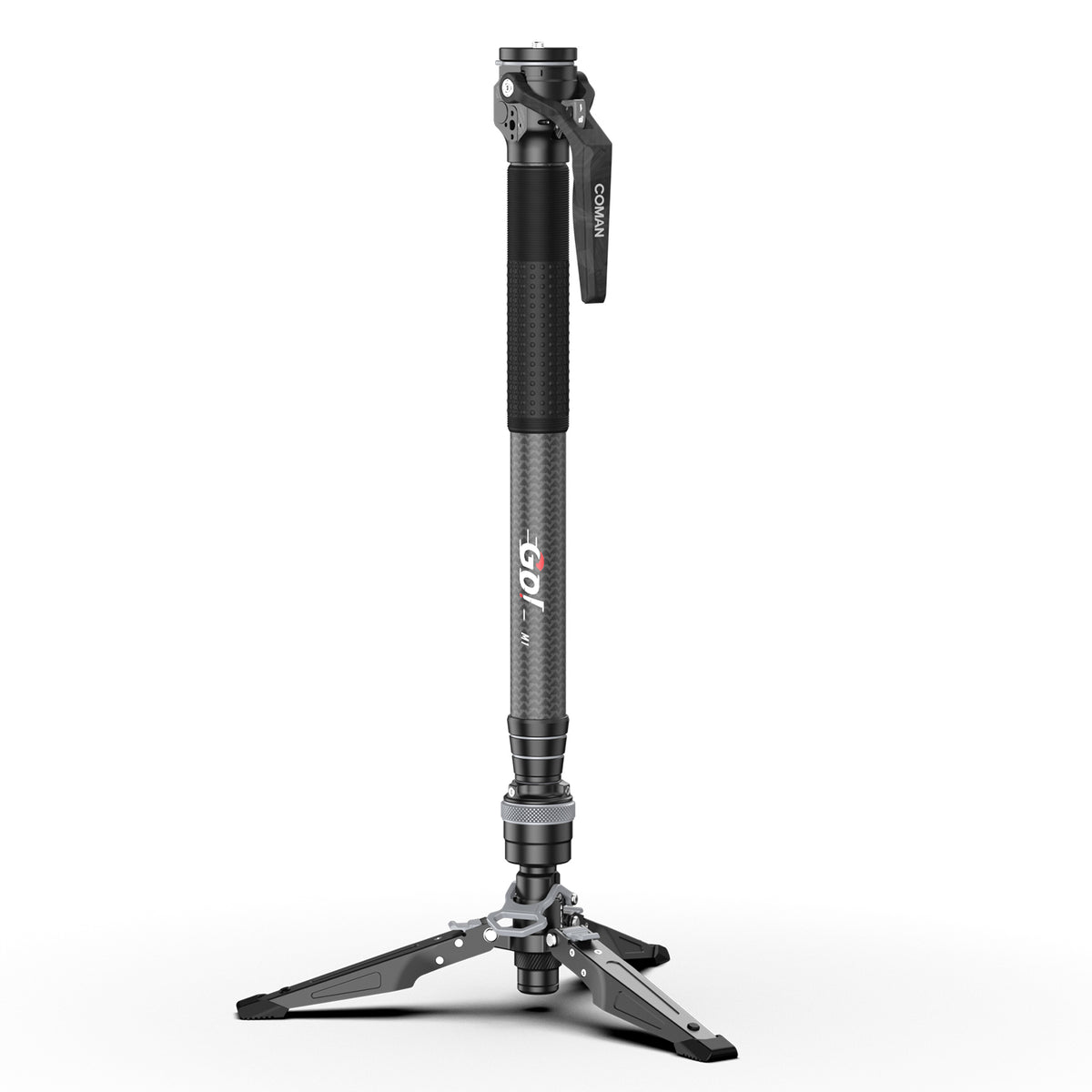

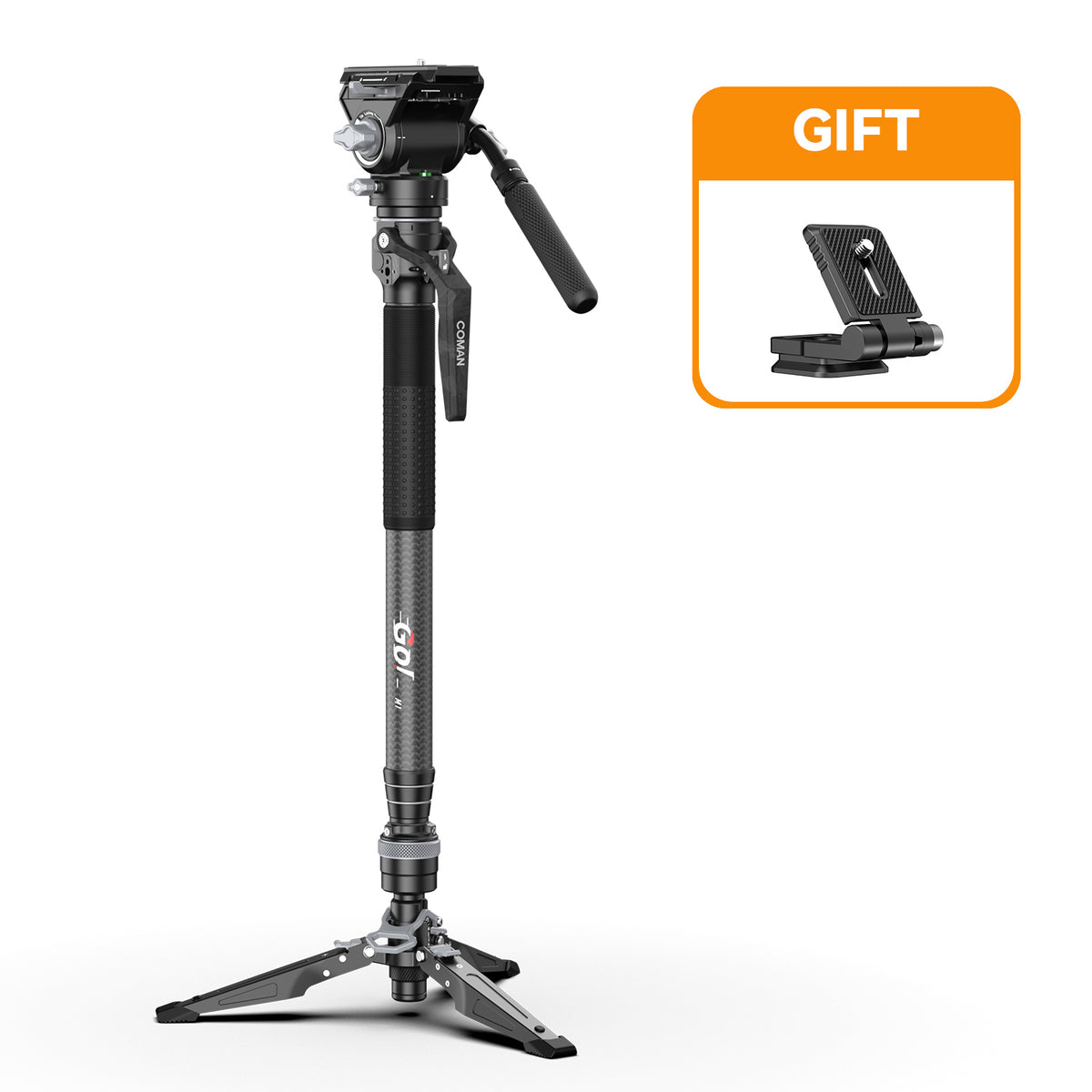

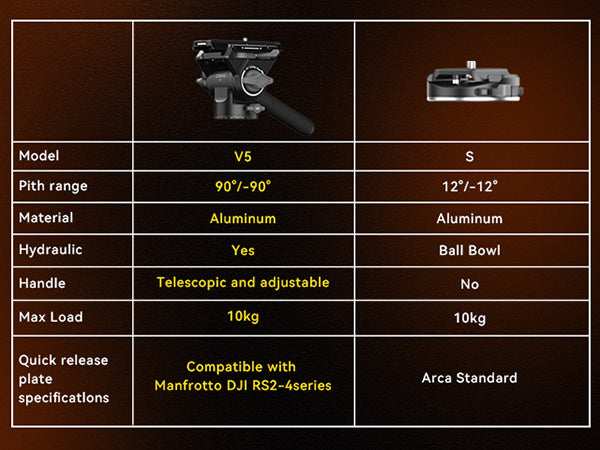

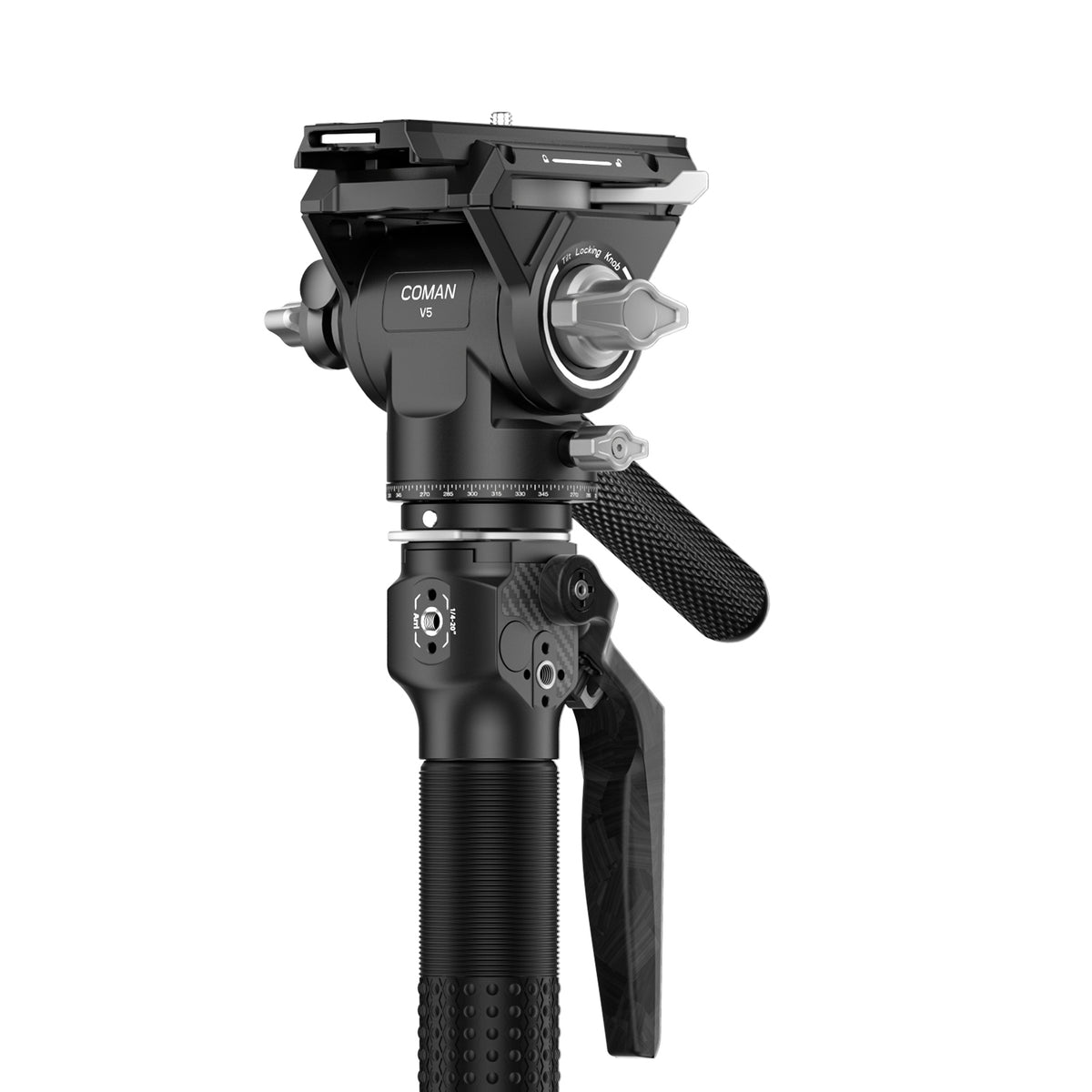

The M1 provides a straightforward monopod configuration, while the M1V5 adds a quick-release tripod head configuration for users who need more advanced video shooting control.

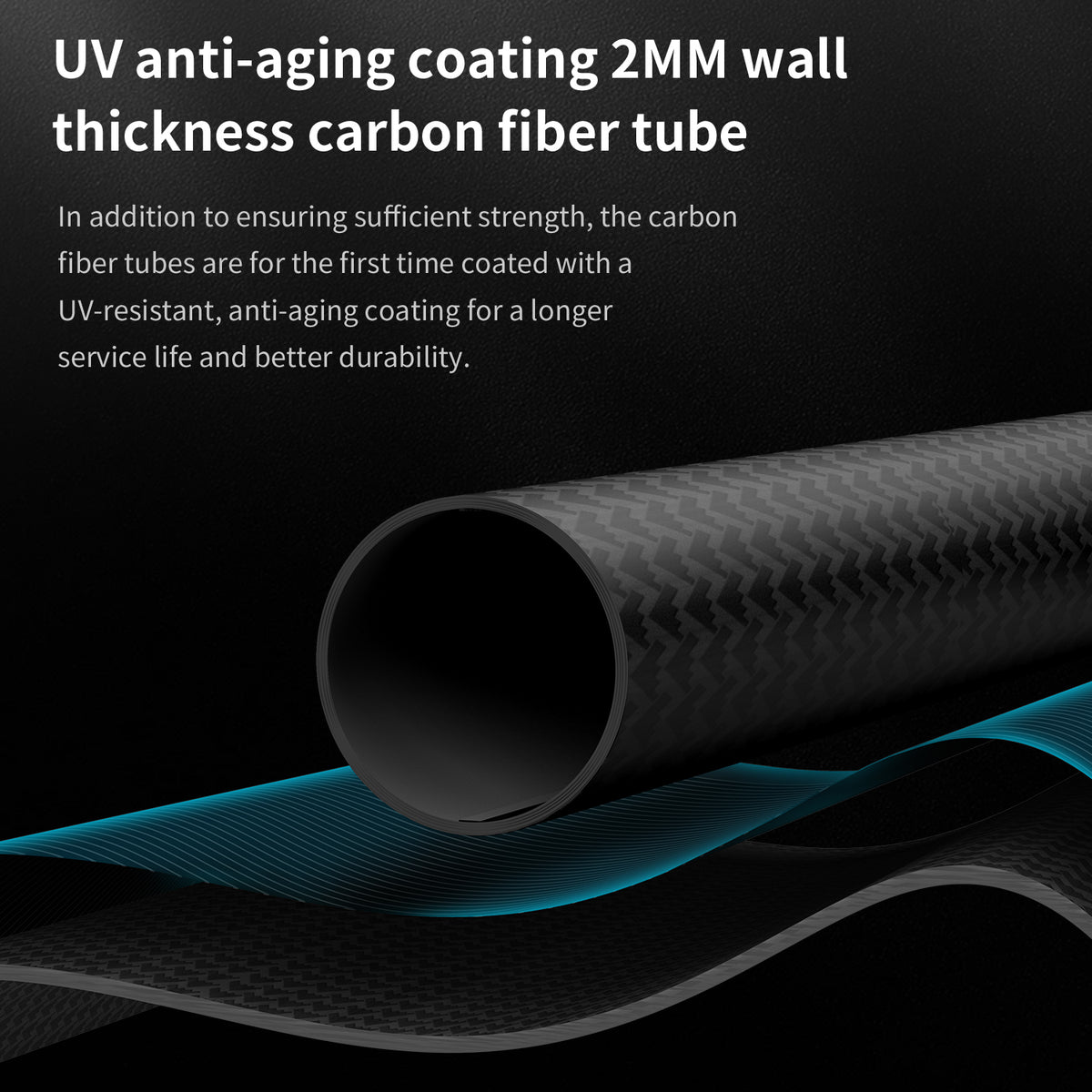

UV-Resistant & Anti-Aging Tube Coating
The carbon fiber tubes feature a UV-resistant and anti-aging protective coating designed to reduce degradation in high-sunlight environments and improve long-term durability.
Straightforward & Dependable Design
The M1 Series focuses on practical operation, durable construction, stable support, and quick setup, making it suitable for everyday photography, outdoor shooting, and professional production.

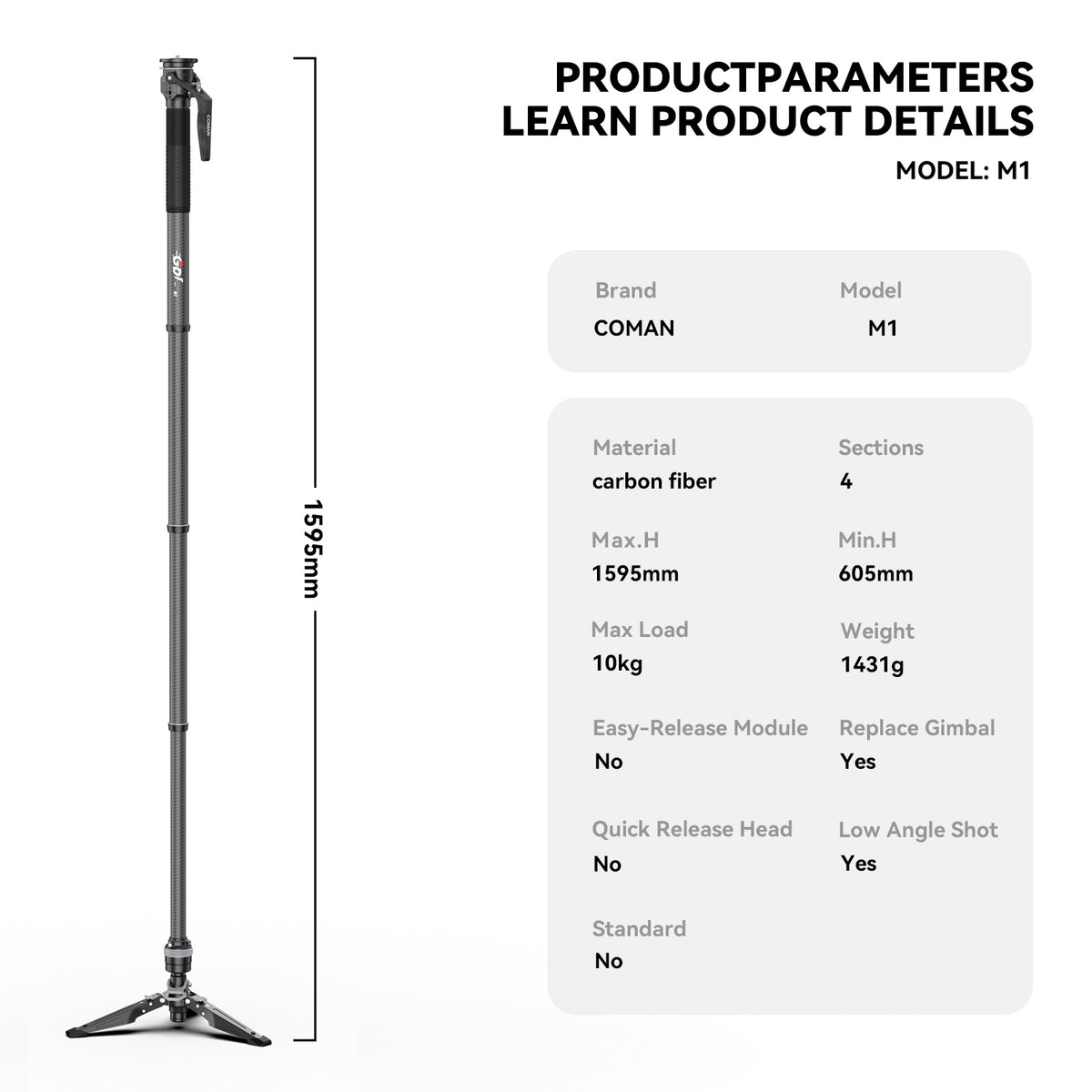

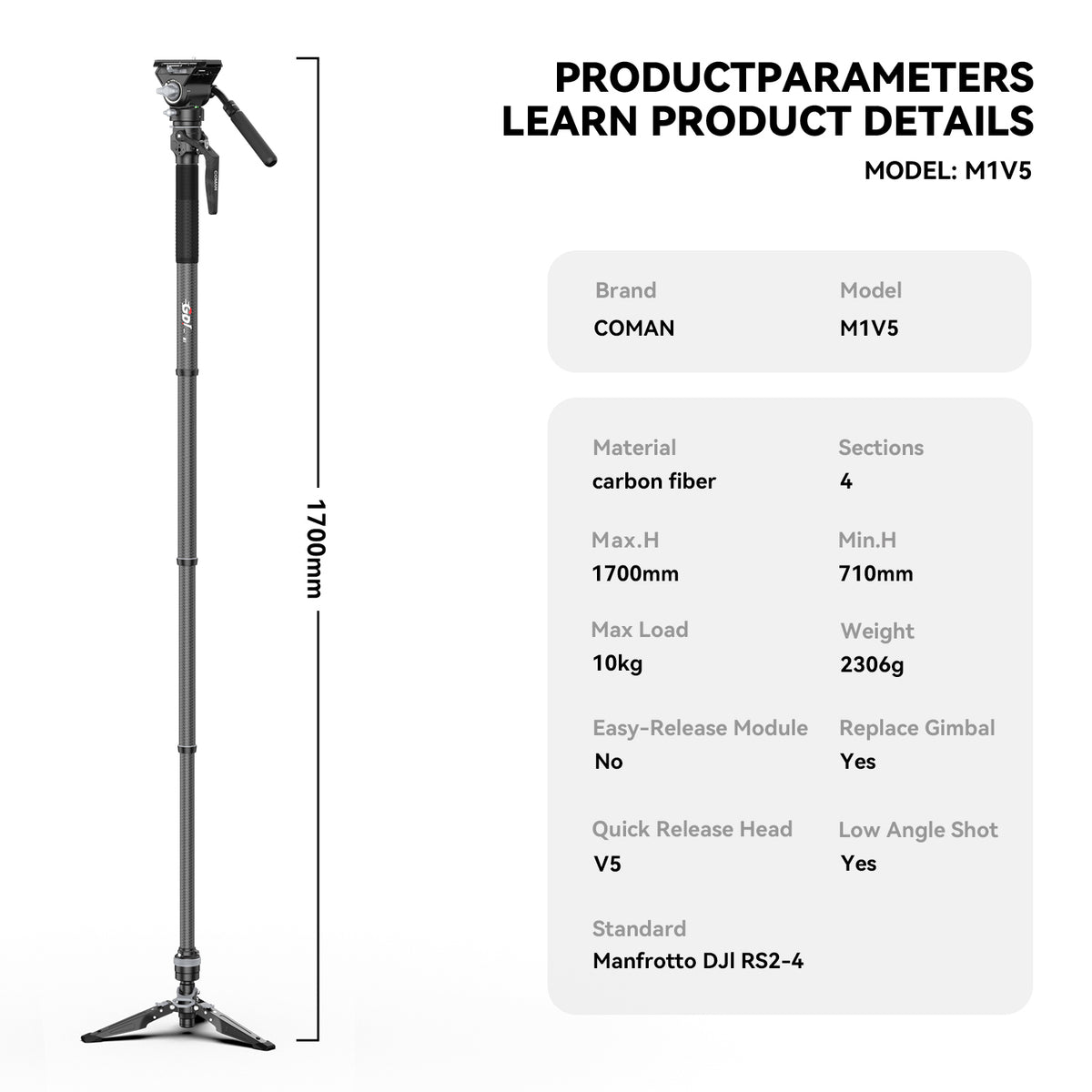

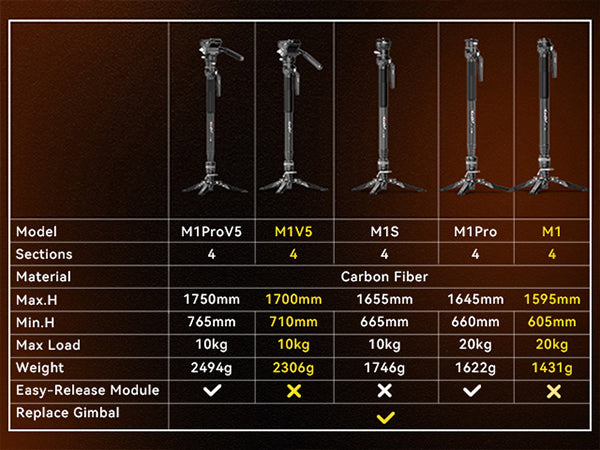

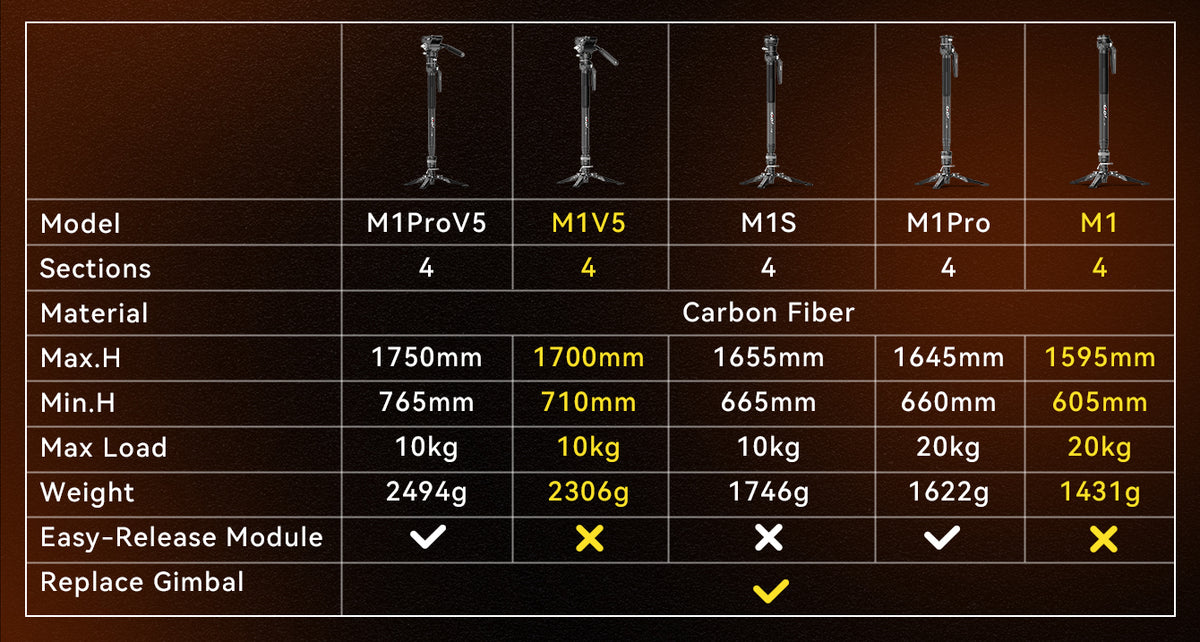

Technical Parameters
| Product Model | M1 Monopod / M1 V5 Monopod |
|---|---|
| Material | B-2 Carbon Fiber |
| Tube Diameter | 1.42 / 1.28 / 1.14 / 1.00 in |
| Maximum Height | M1: 62.8 in / M1V5: 66.93 in |
| Folded Height | M1: 23.82 in / M1V5: 27.95 in |
| Support Leg Weight | 1.32 lbs |
| Support Leg Length | 7.48 in |
| Maximum Load Capacity | M1: 44.09 lbs / M1V5: 22.05 lbs |
| Product Weight | M1: 3.16 lbs / M1V5: 5.08 lbs |
| Foot Pedal Lock | Yes |
| Foot Pedal Damping Adjustment | Yes |
| Module Quick Release / Detachable | Detachable |
| Tripod Head Quick Release | M1: Not detachable / M1V5: Yes |

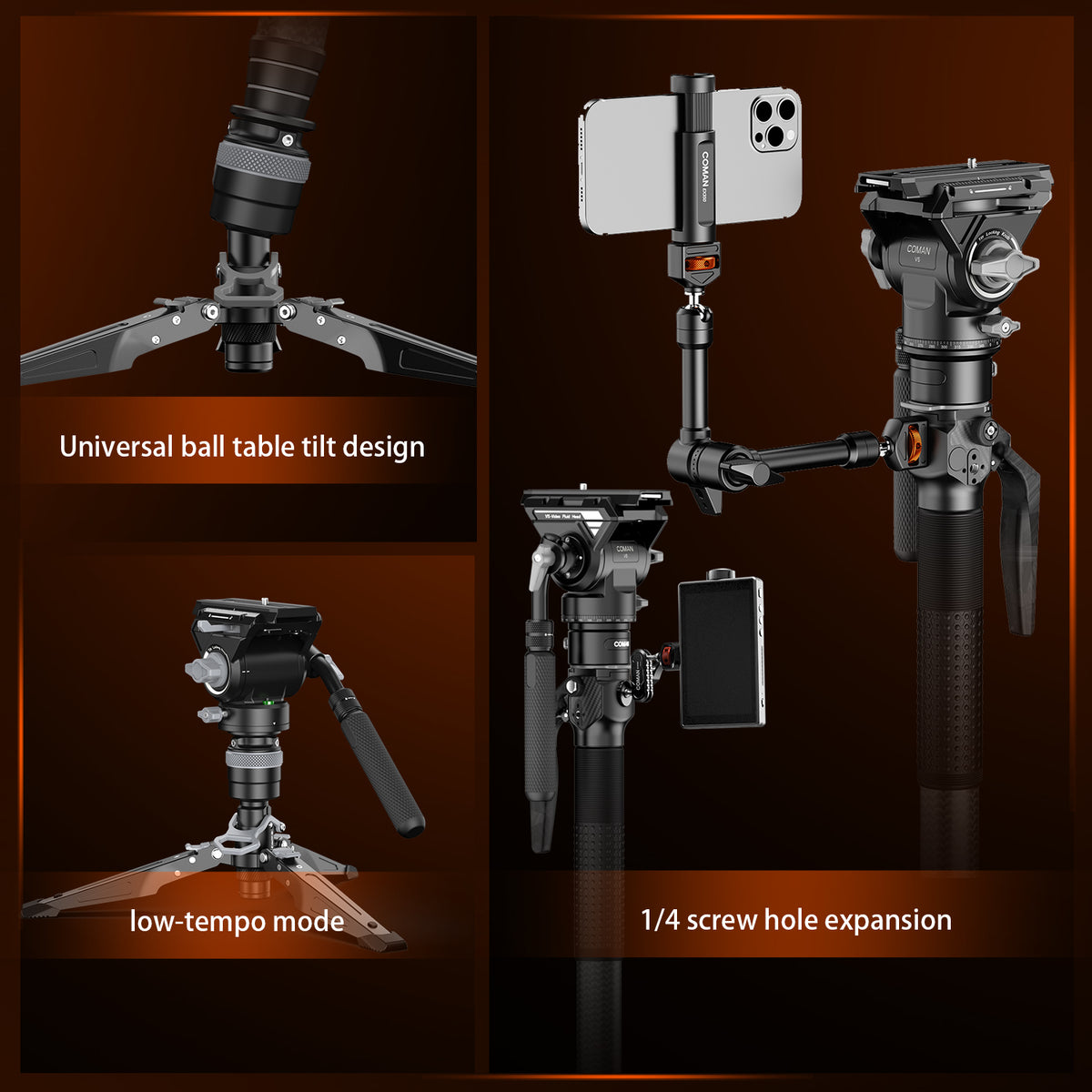

| 1/4" Screw | Yes |
